Shower Trays / Smooth / Framed / Gel Coat / Rectangular

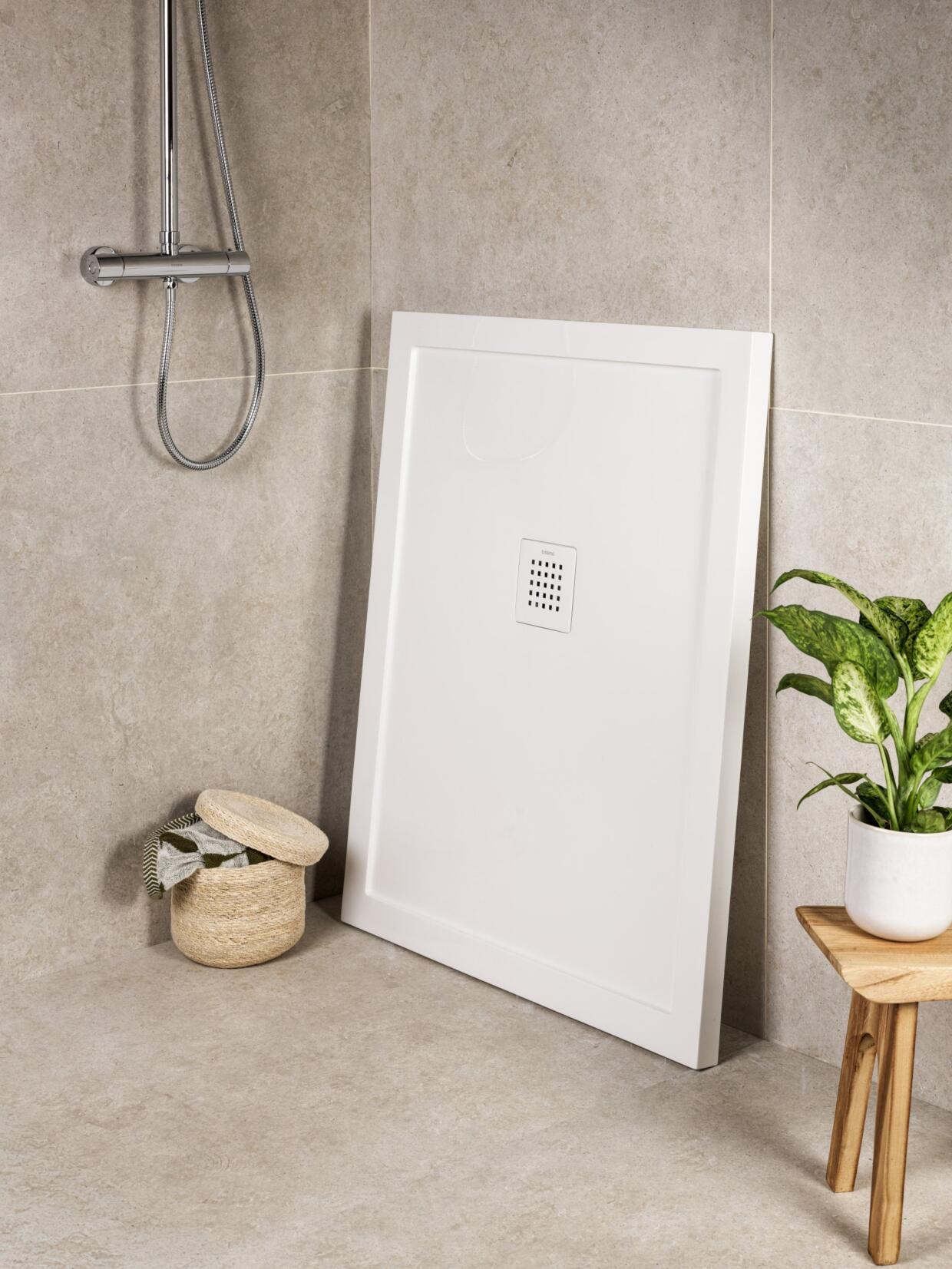

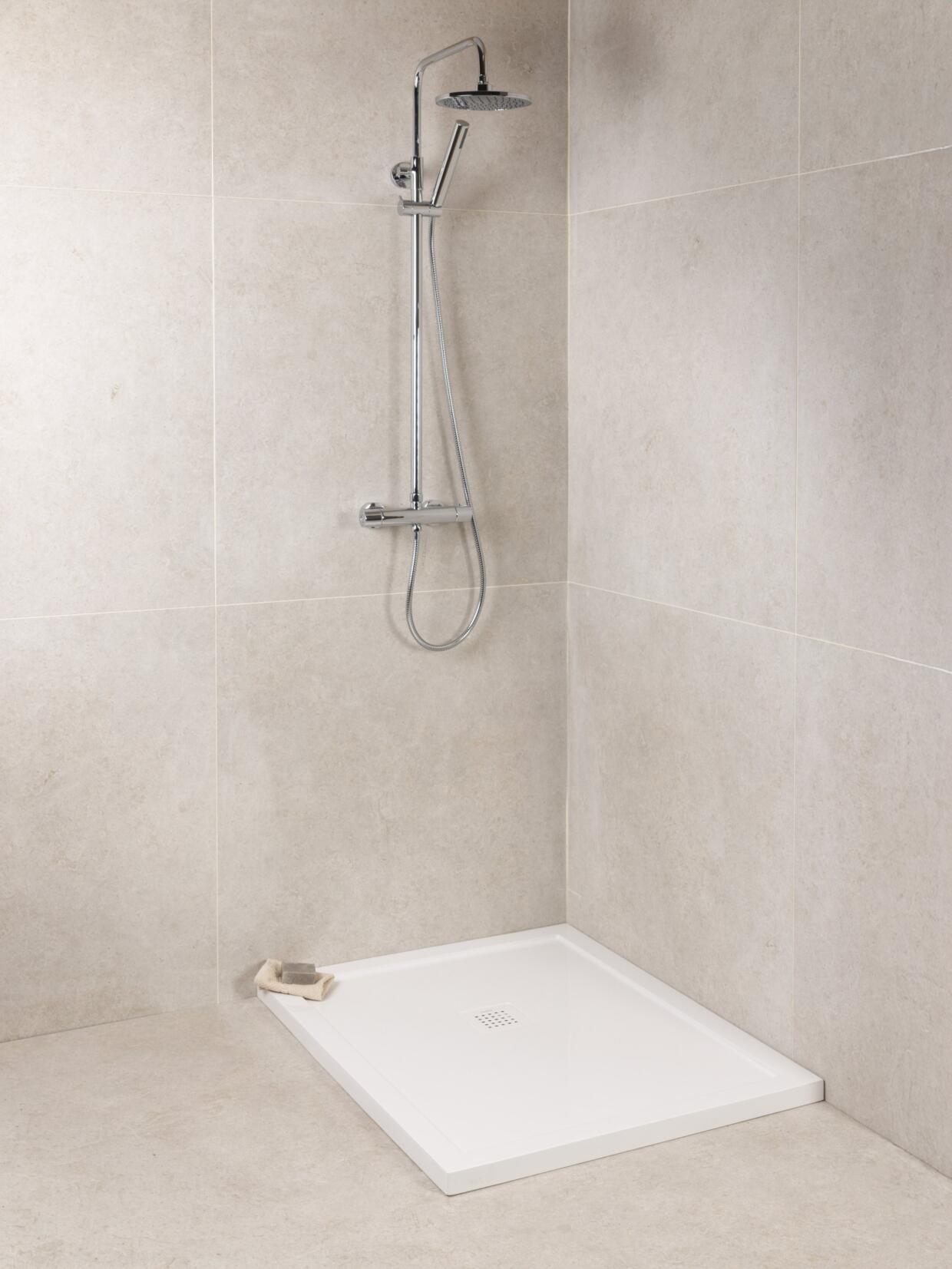

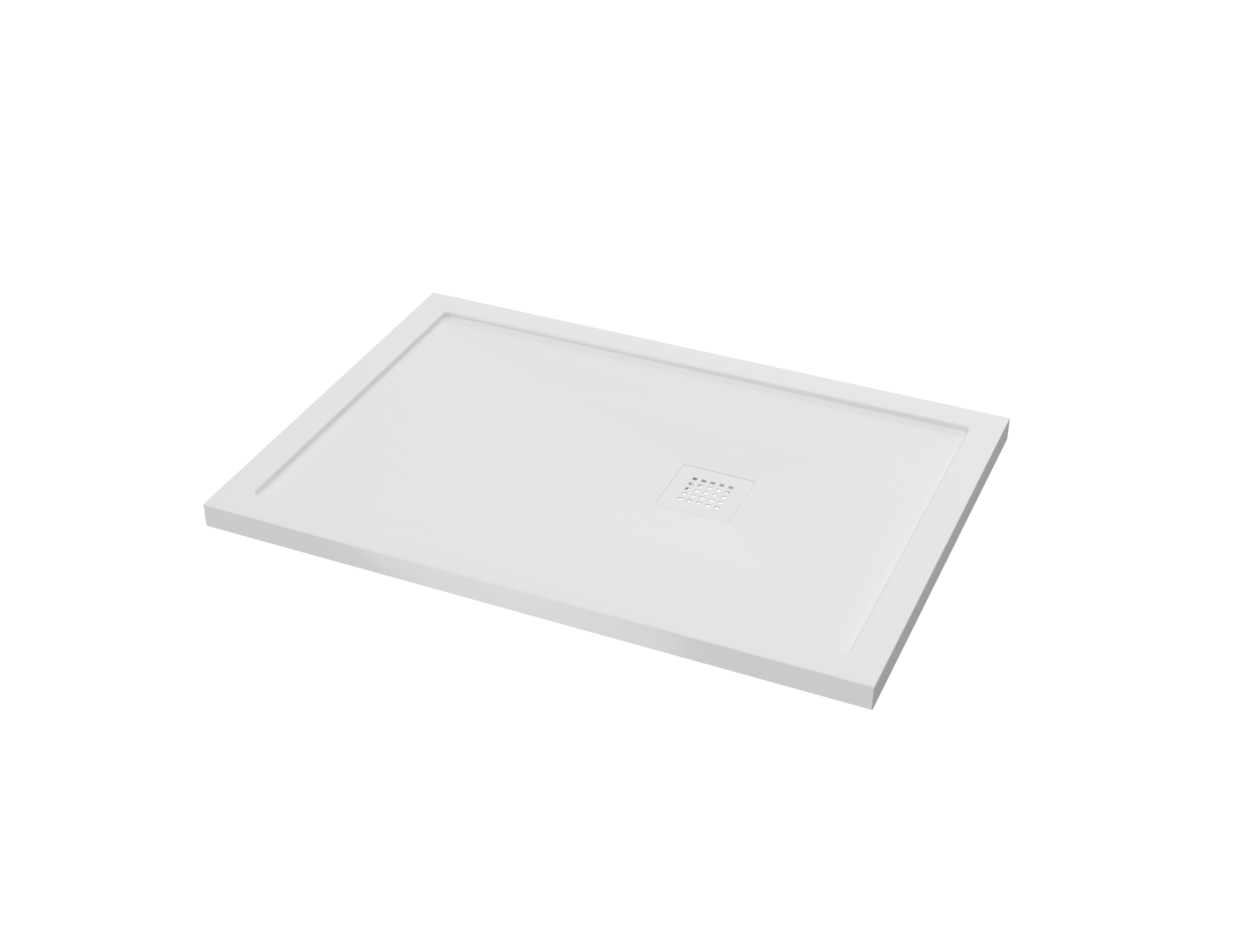

Fiorti Smooth Rectangular Shower Tray
The Fiorti Smooth Rectangular Shower Tray combines a clean, understated finish with durable everyday performance. Its smooth White surface creates a simple, minimal foundation for the showering space and is easy to keep clean. Made from robust 40mm gel coat resin, Fiorti Smooth is available in a wide choice of rectangular sizes to suit everything from compact enclosures to larger walk-in showering spaces. A colour-matched grate and 27 l/min waste are included, and the tray is backed by a Lifetime Guarantee for added confidence
RRP From
£241.00
RRP From Excl VAT
£200.83
SKU TFS-404
Technical Information
- Smooth, easy-clean surface
- Clean White finish
- Durable 40mm gel coat resin construction
- Wide choice of rectangular sizes
- Colour-matched White grate included
- 27 l/min waste included
- Wetroom compatible
- Optional riser and panel kits available
- Lifetime Guarantee on tray
- Five year guarantee on waste and grate
| Size | Code | Weight | Material | Finish | Thickness | Waste Cut-Out | Guarantee |
|---|---|---|---|---|---|---|---|
| 760 × 700mm | TFS-403 | 18kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 800 × 700mm | TFS-404 | 20kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 800 × 760mm | TFS-405 | 20.5kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 900 × 700mm | TFS-407 | 21.5kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 900 × 760mm | TFS-408 | 22kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 900 × 800mm | TFS-409 | 25kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1000 × 700mm | TFS-411 | 22.4kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1000 × 760mm | TFS-412 | 26kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1000 × 800mm | TFS-413 | 25.5kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1000 × 900mm | TFS-414 | 29.5kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1100 × 700mm | TFS-416 | 25kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1100 × 760mm | TFS-417 | 27kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1100 × 800mm | TFS-418 | 27kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1100 × 900mm | TFS-419 | 32.3kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1100 × 1000mm | TFS-420 | 35kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1200 × 700mm | TFS-421 | 25.5kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1200 × 760mm | TFS-422 | 28kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1200 × 800mm | TFS-423 | 32kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1200 × 900mm | TFS-424 | 34kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1200 × 1000mm | TFS-425 | 38kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1400 × 700mm | TFS-426 | 35.3kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1400 × 760mm | TFS-427 | 33kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1400 × 800mm | TFS-428 | 37.5kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1400 × 900mm | TFS-429 | 36kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1400 × 1000mm | TFS-430 | 44kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1500 × 700mm | TFS-431 | 38.5kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1500 × 760mm | TFS-432 | 38kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1500 × 800mm | TFS-433 | 40kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1500 × 900mm | TFS-434 | 39kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1600 × 700mm | TFS-435 | 39kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1600 × 760mm | TFS-436 | 40kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1600 × 800mm | TFS-437 | 47kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1600 × 900mm | TFS-438 | 43kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1700 × 700mm | TFS-439 | 39.5kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1700 × 760mm | TFS-440 | 42.5kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1700 × 800mm | TFS-441 | 50kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
| 1700 × 900mm | TFS-442 | 45.5kg | Stone Resin | High Gloss White | 40mm | Ø90mm | Lifetime |
- Cleaning and maintenance of Tissino shower trays does not require any specific maintenance.
- Usually, rinsing the tray properly and wiping with a soft cloth to ensure there is no cleaning product residue left is sufficient.
- Clean with liquid soap and water and a soft non-abrasive cloth or sponge. Rub gently with a circular motion and rinse with plenty of water.
- DO NOT use cleaning products containing acetone or alcohol, or aggressive cleaning products such as bleach, hydrochloric acid, caustic soda or detergents containing anionic surfactants.
- In areas of hard water, it is recommended that the shower tray is cleaned more frequently to prevent the build-up of limescale on the surface
- TFO 991 Fiorti Waste Trap install guide v1 (PDF, 1.7 MB)
- Fiorti Smooth shower tray 1000mm datasheet v1 (PDF, 150.3 KB)
- Fiorti Smooth shower tray 900mm datasheet v1 (PDF, 150.7 KB)
- Fiorti Smooth shower tray 800mm datasheet v1 (PDF, 289.8 KB)
- Fiorti Smooth shower tray 760mm datasheet v1 (PDF, 293.6 KB)
- Fiorti Smooth shower tray 700mm datasheet v1 (PDF, 158.1 KB)
- Fiorti shower tray Install guide v1 (PDF, 970.4 KB)
