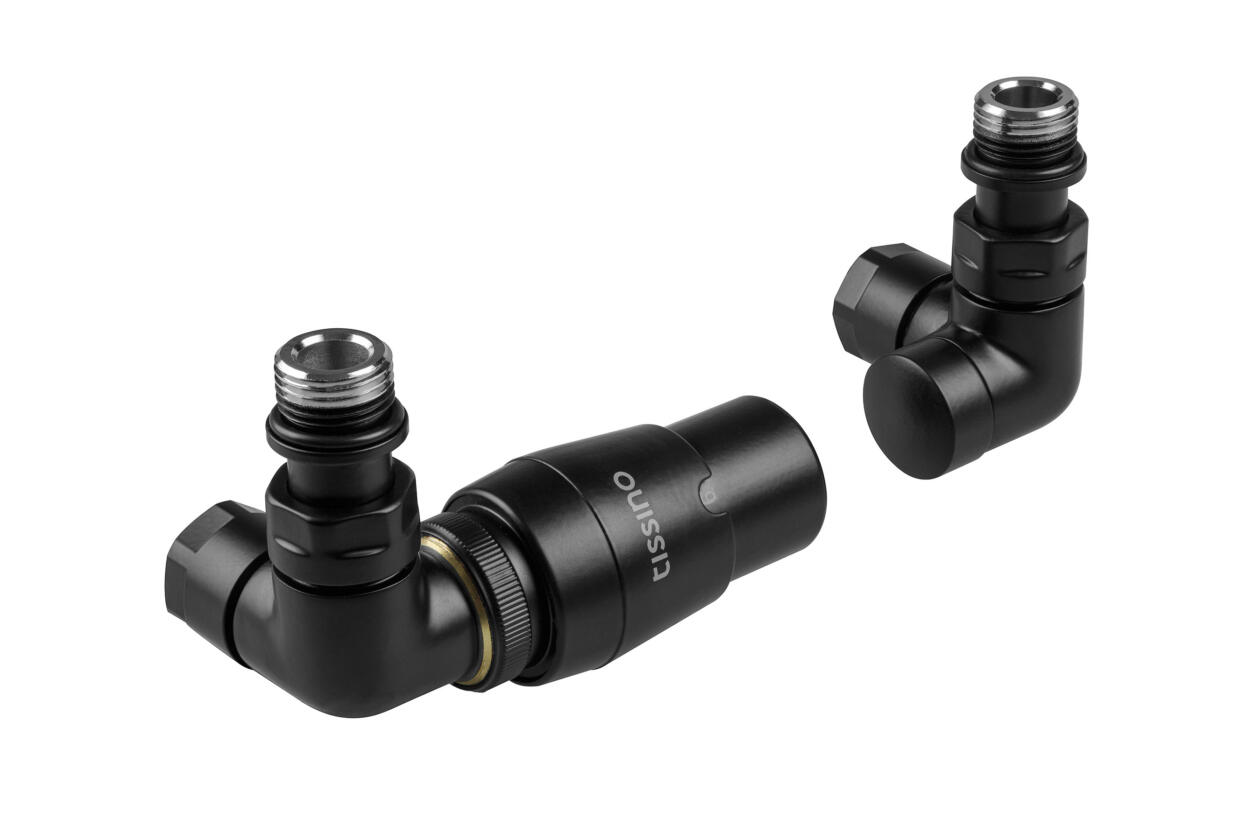

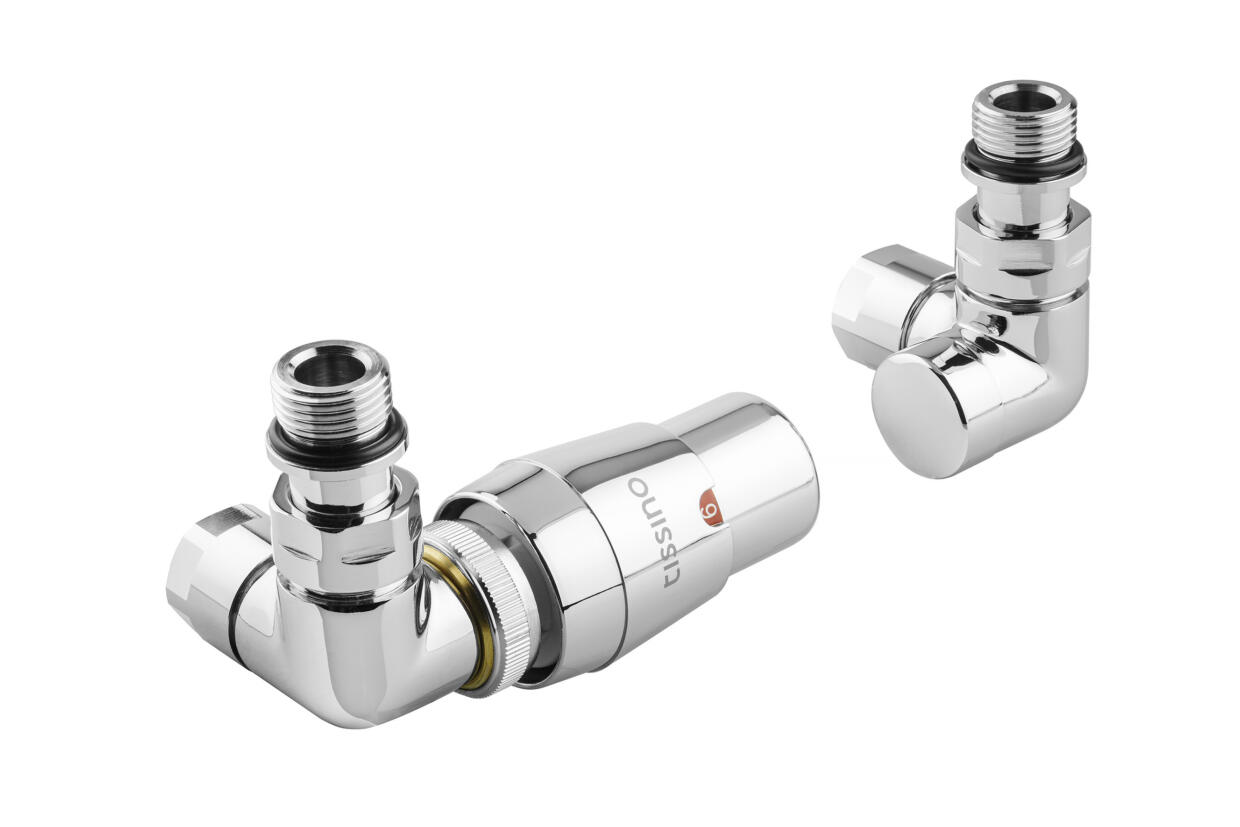

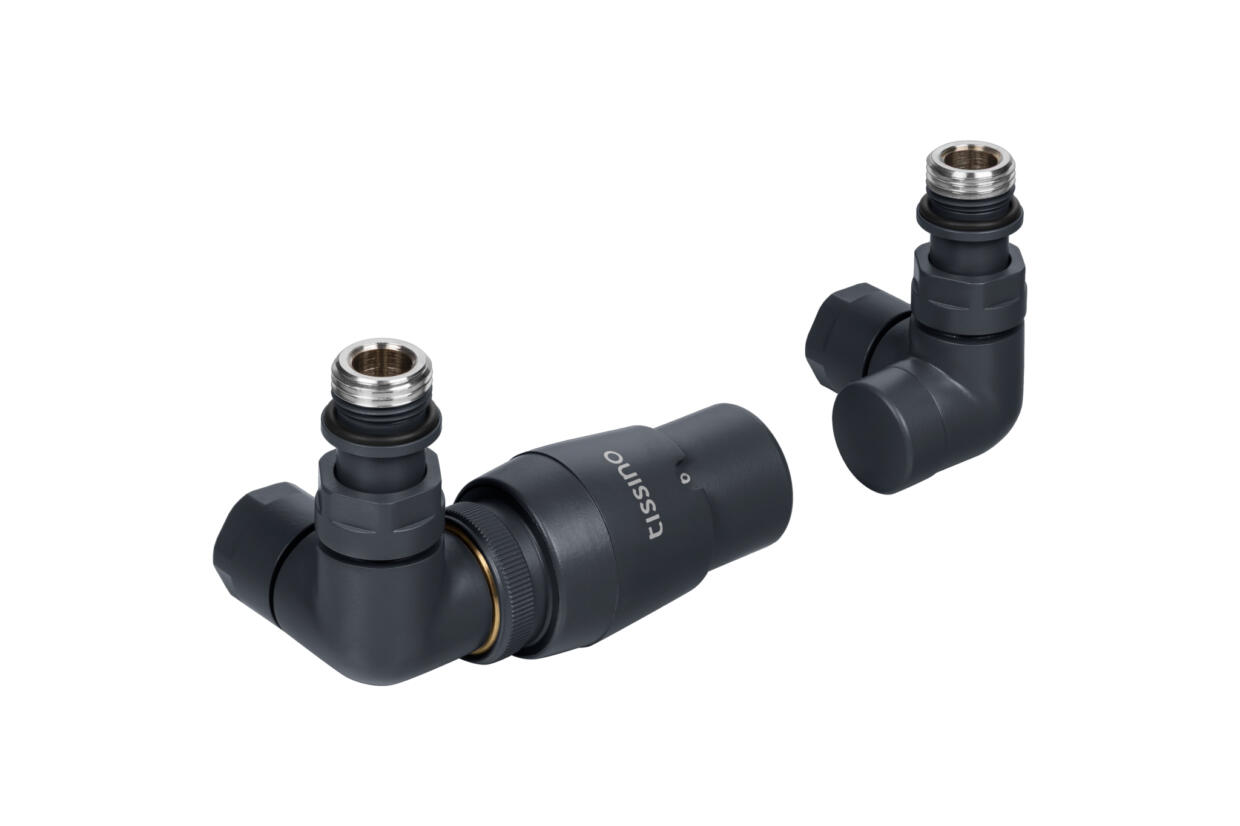

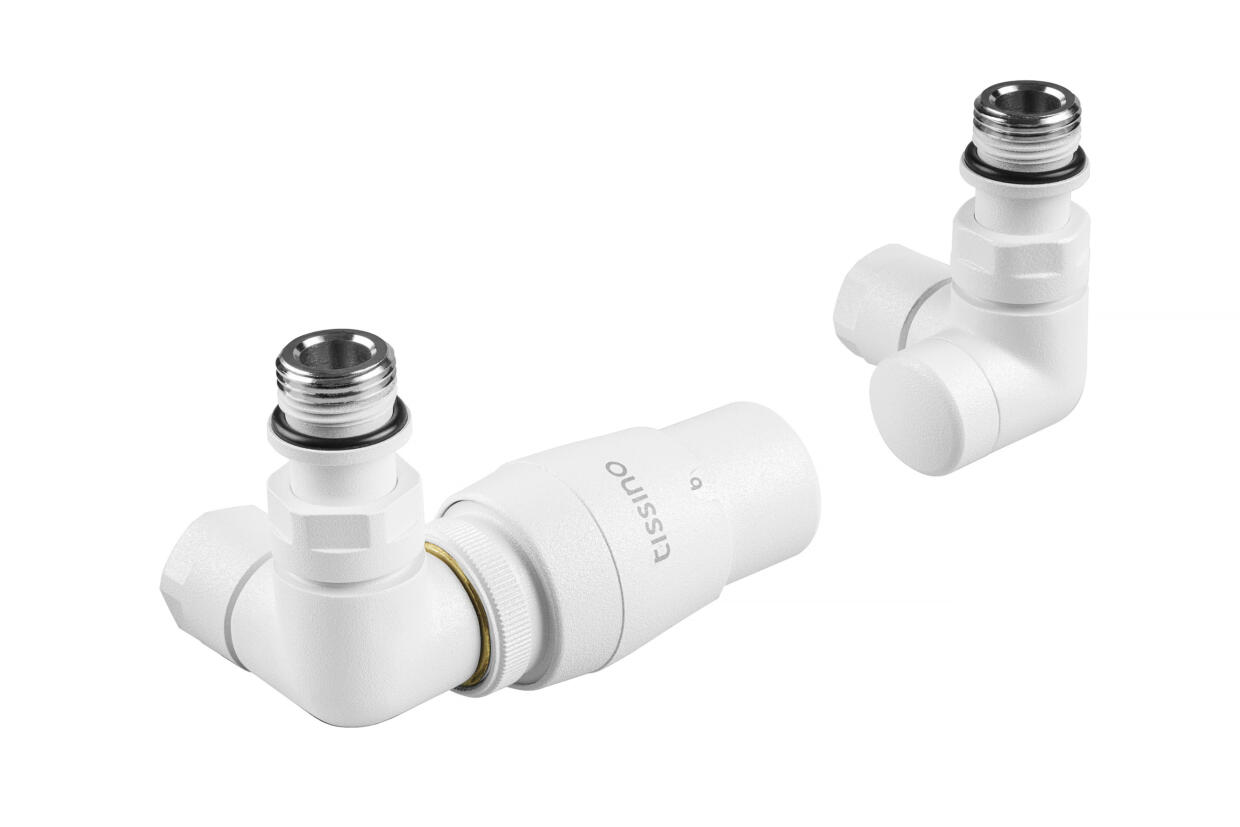

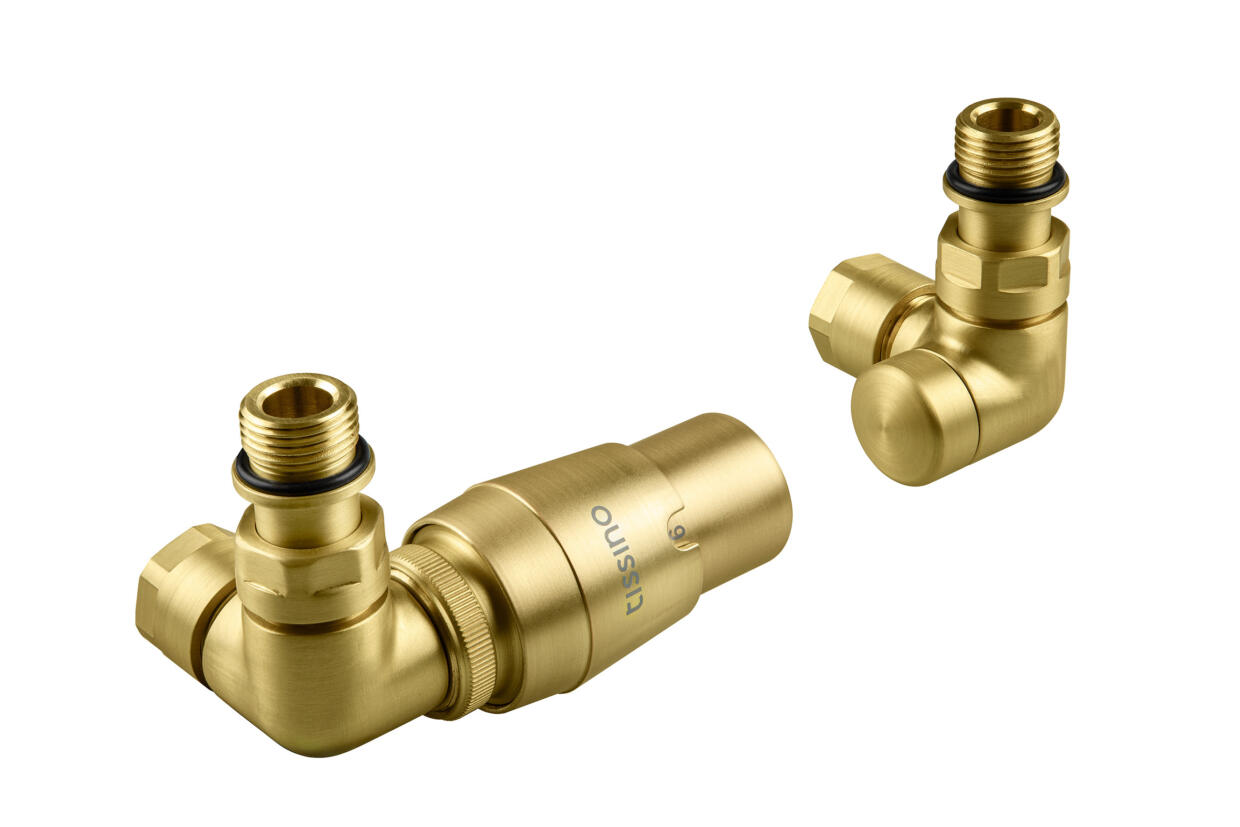

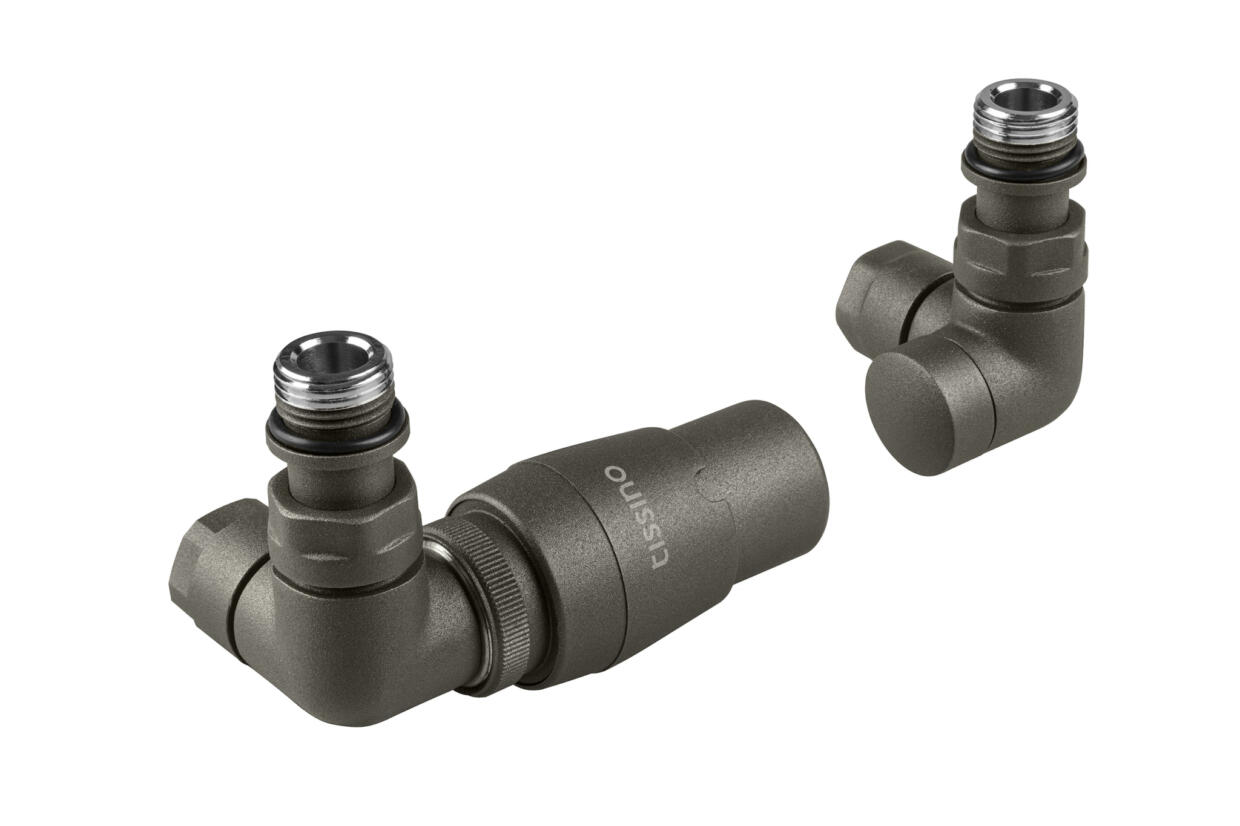

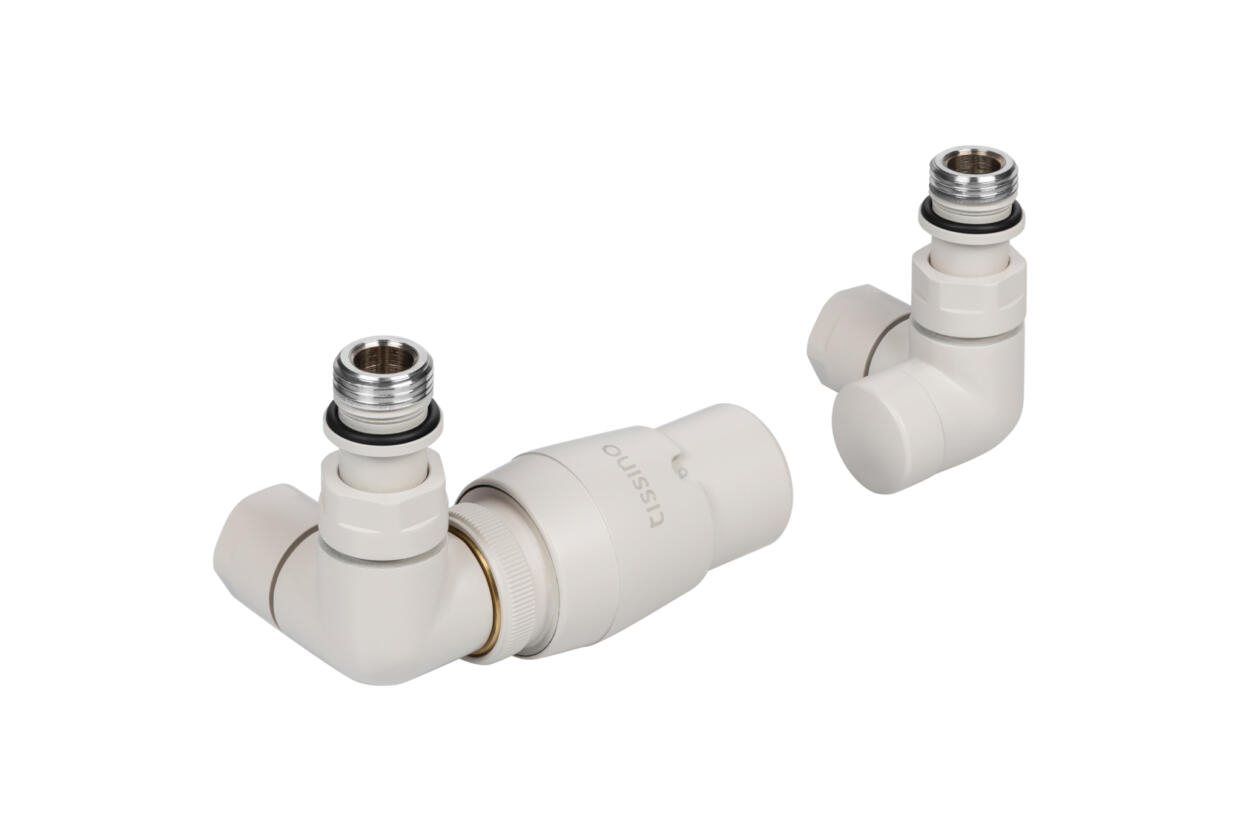

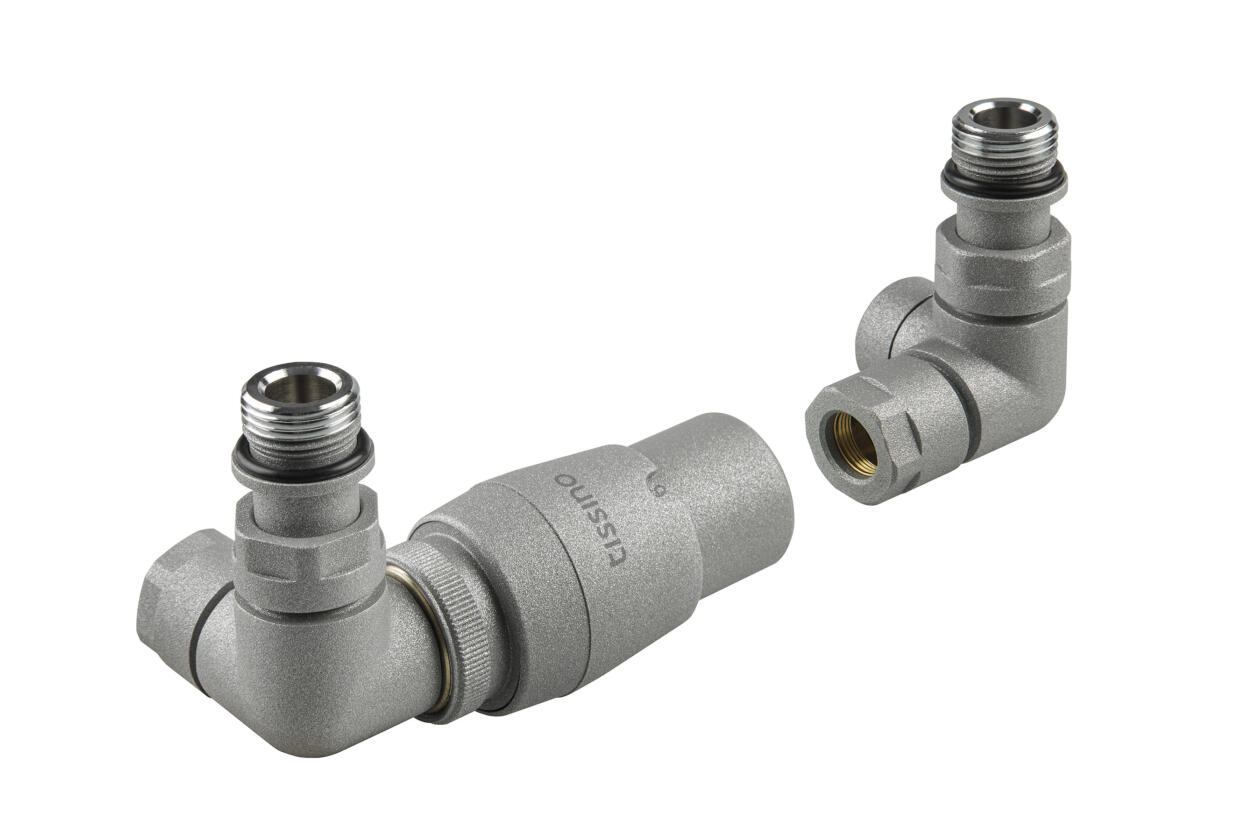

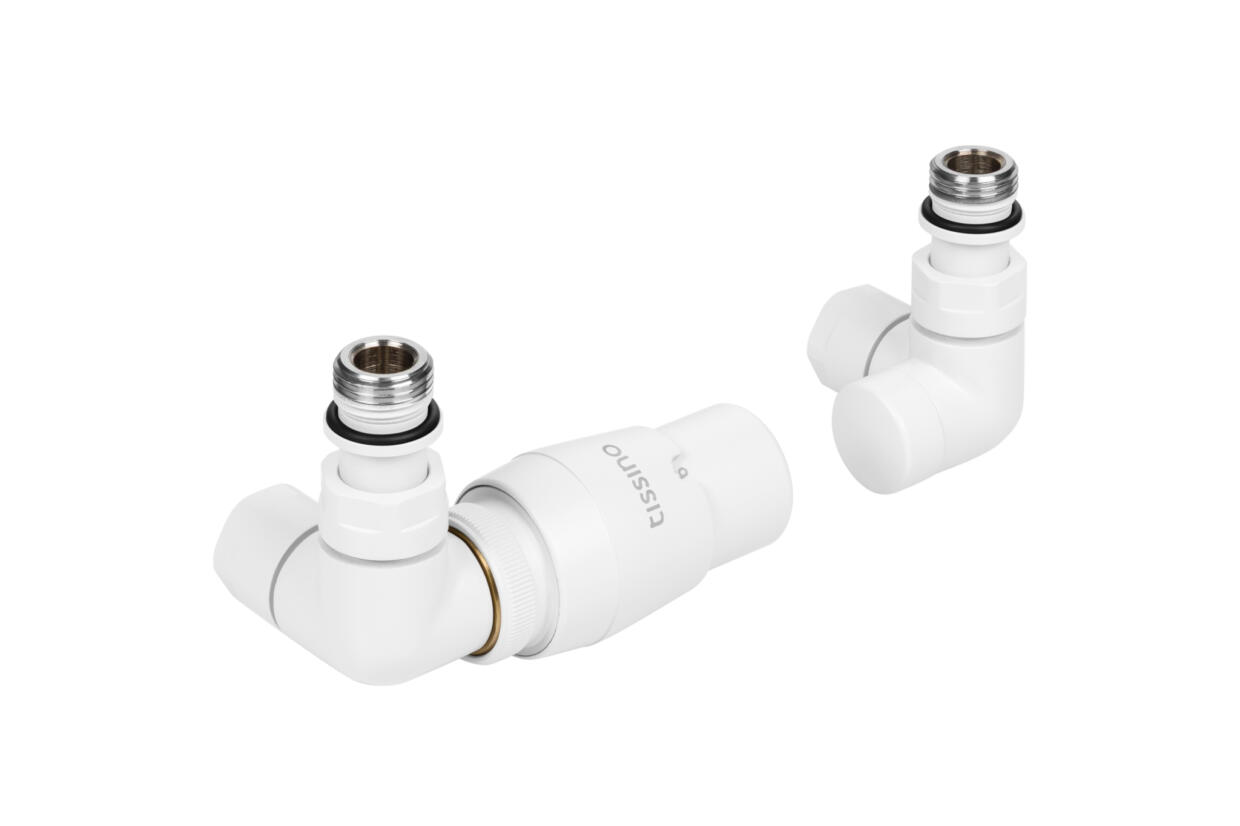

Double Angle Valves (Pair) with Thermostatic Head - Single Fuel Valves
These double angle thermostatic radiator valves allow the temperature from a compatible heated towel rail to be regulated in response to the room temperature. The angled valve layout keeps the controls close to the radiator connection, providing a neat solution where this configuration suits the planned pipework.
Available in a range of coordinating finishes, the valves are designed to complement selected heated towel rails(Hugo2, Hugo Evolute, Ampio and Marcello).
RRP From
£132.00
RRP From Excl VAT
£110.00
SKU THU-303-MN.
Technical Information
- Double angle valve configuration
- Thermostatic control for regulating room temperature
- Supplied as a valve pair with thermostatic head
- Flow can be adjusted through the lockshield valve
- Available in coordinating finishes for selected Tissino heated towel rails
| Specification | Detail |
|---|---|
| Product Type | Double Angle radiator valve with Thermostatic control |
| Material | Brass |
| Finish Type | Electrostatic powder coat or chrome plate |
| Radiator Connection | G 1/2 — 1/2" BSP parallel |
| Supply Connection | 15mm compression |
| Included Adapter | Optional adapter for 10mm pipework |
| Head Mounting Thread | M30 × 1.5 |
| Height | 48mm |
| Control Valve Width | 121mm |
| Lockshield Valve Width | 47mm |
| Depth | 54mm |
| Maximum Water Temperature | 120°C |
| Maximum Pressure | 10 bar |
| Maximum Room Temperature | 50°C |
