Hugo Evolute Towel Radiator

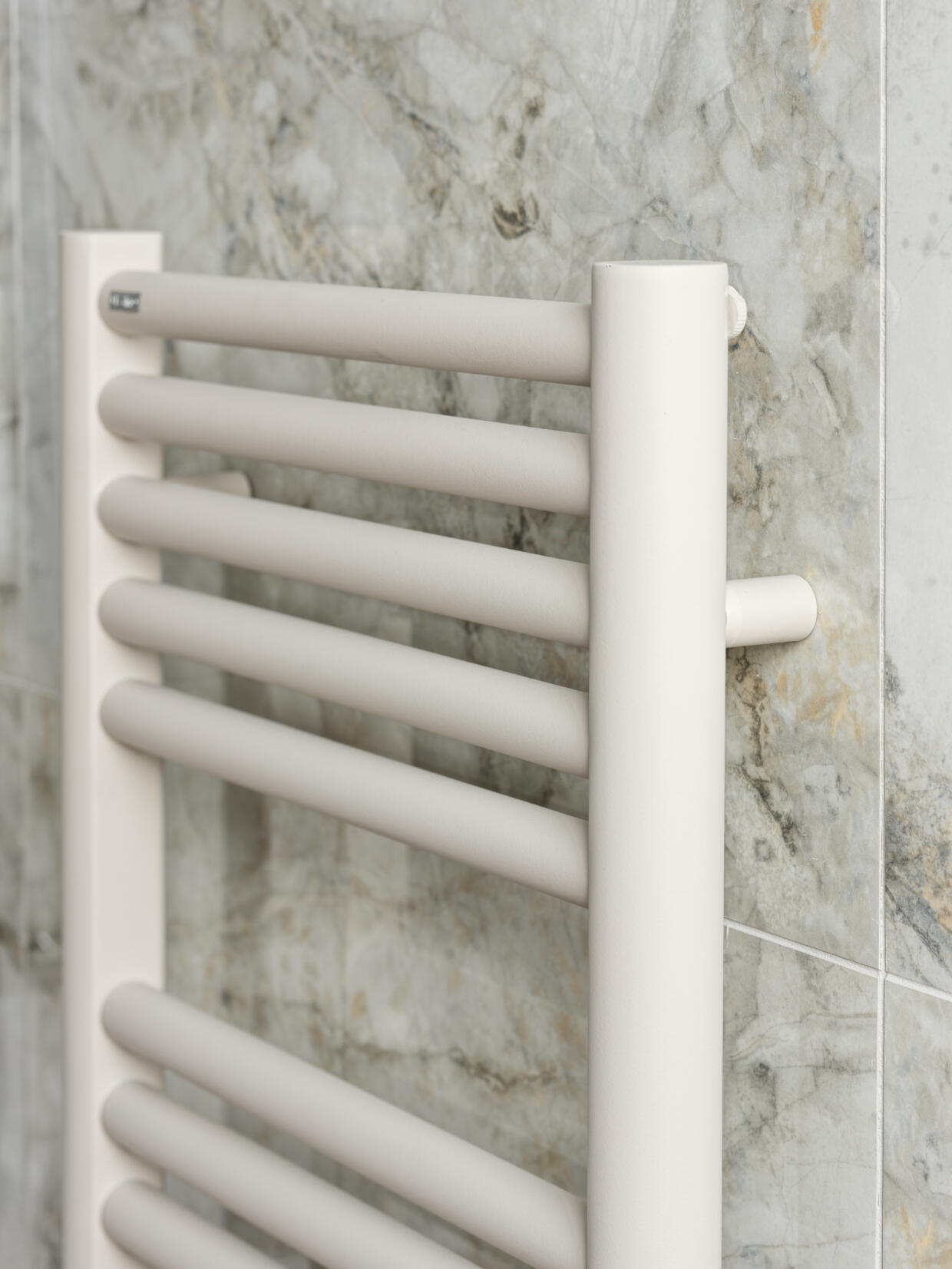

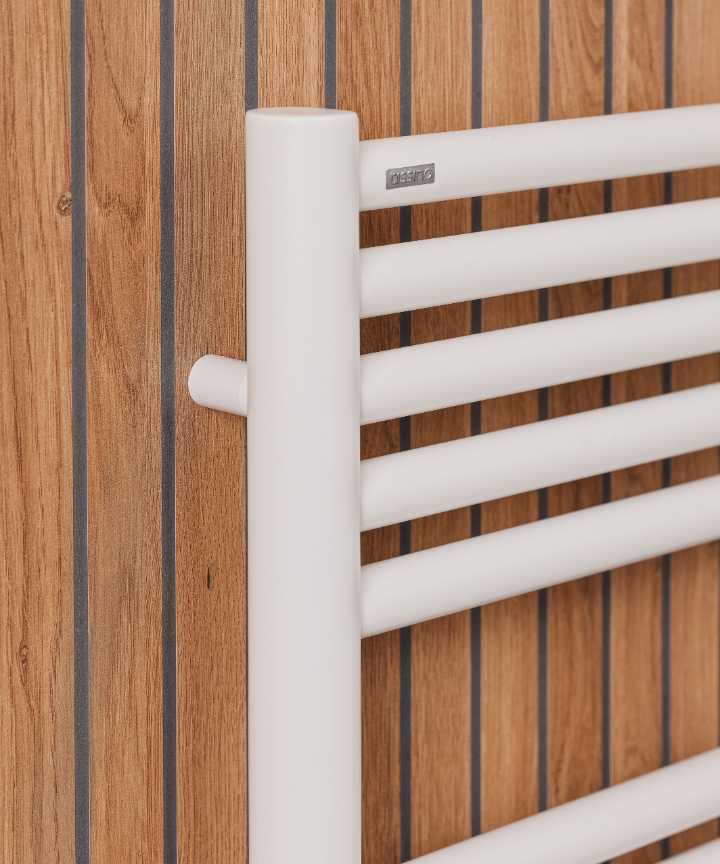

Hugo Evolute builds on the clean, contemporary design of the Hugo2 collection, with concealed fixings creating a sleek, uninterrupted finish. Its classic ladder format provides practical space for warming and hanging towels while maintaining a minimal appearance.

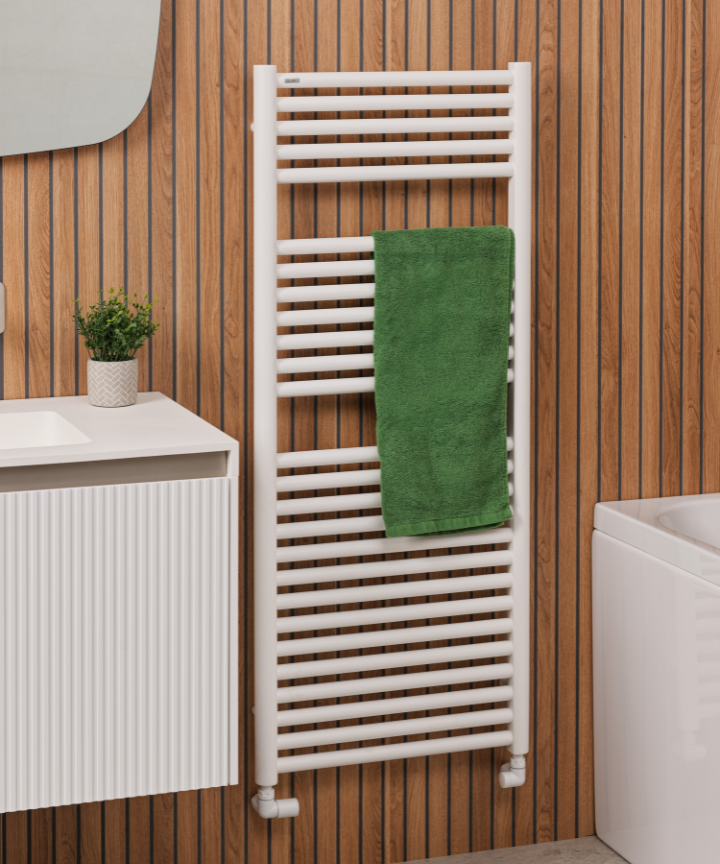

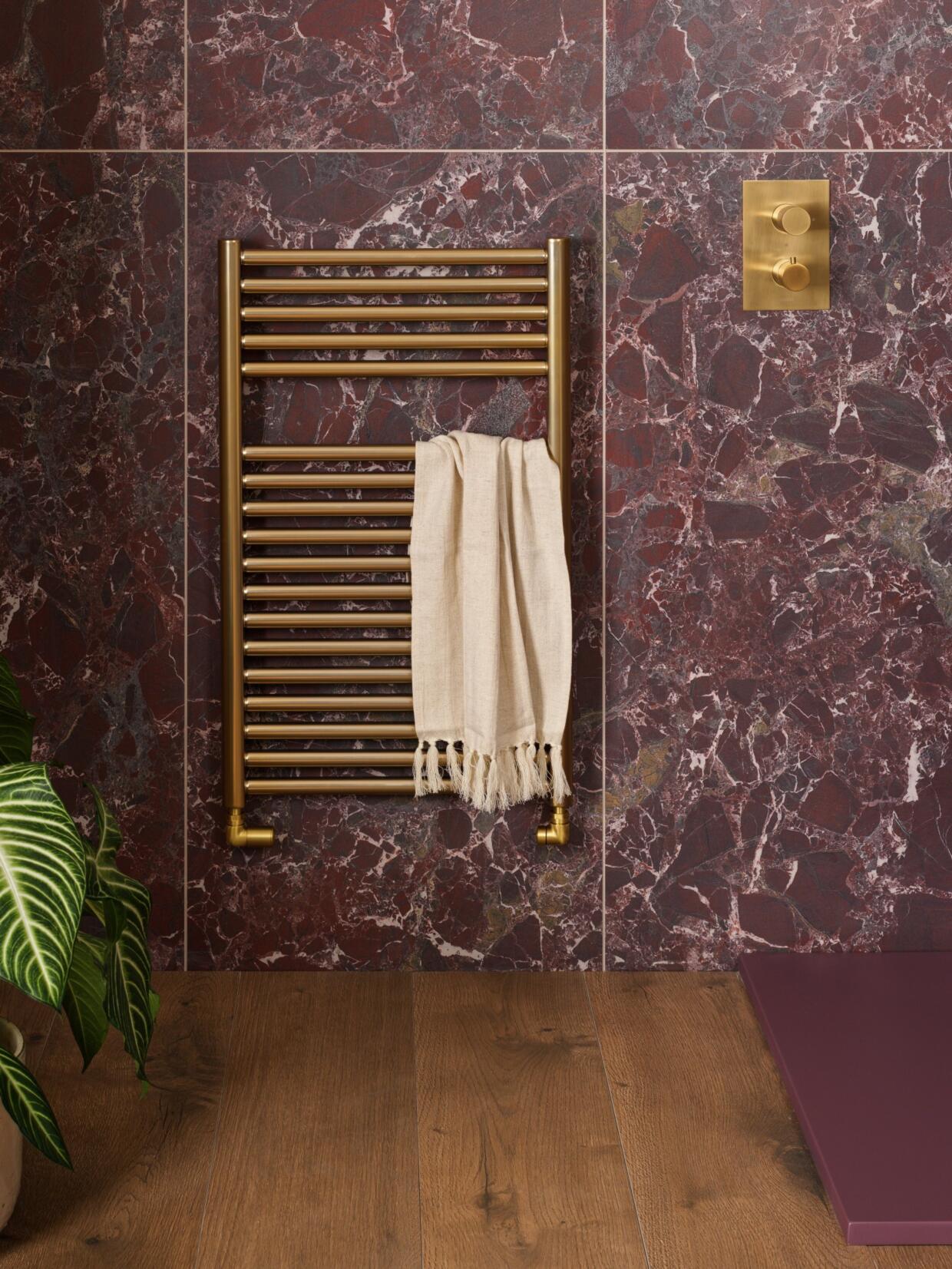

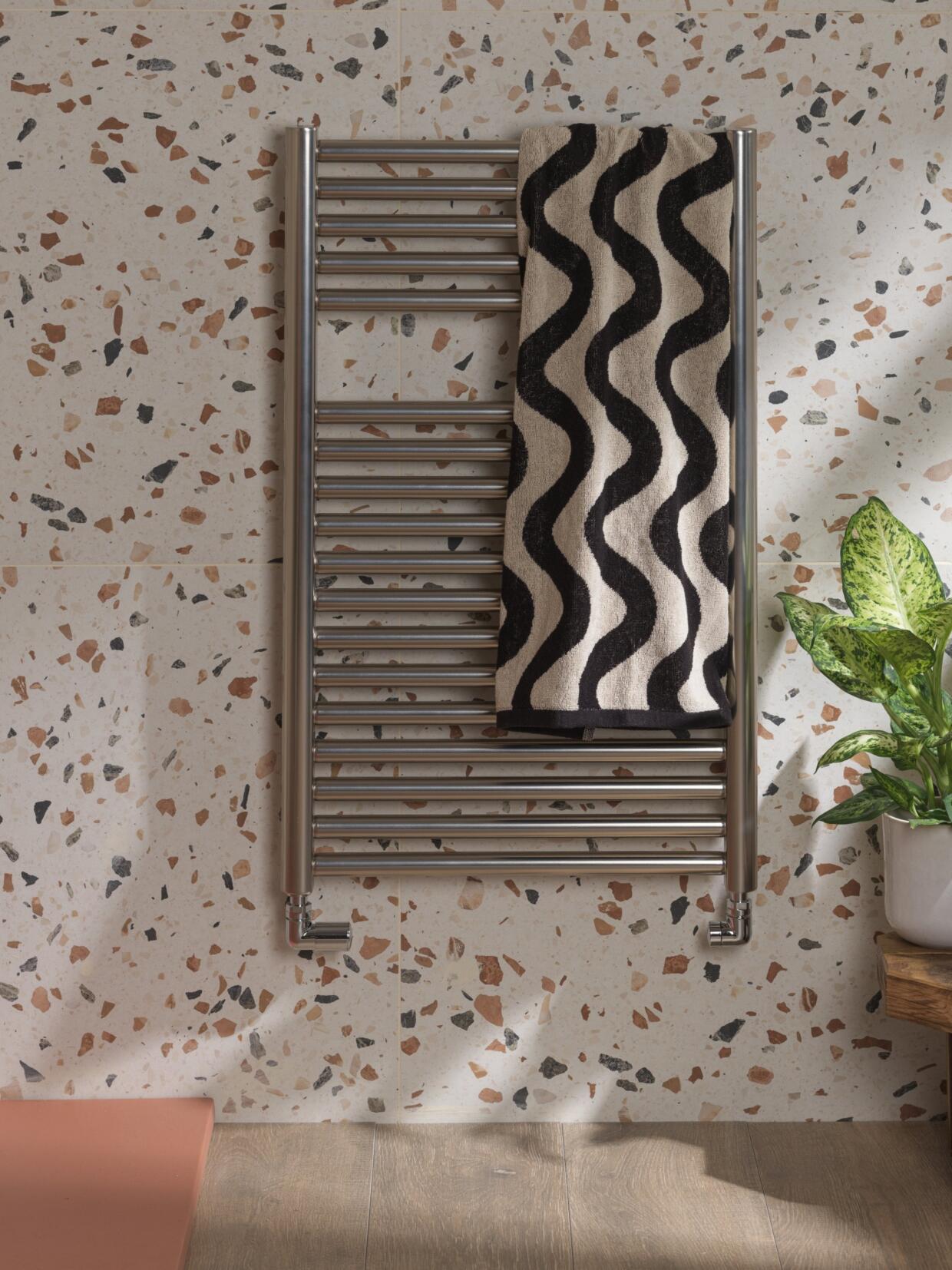

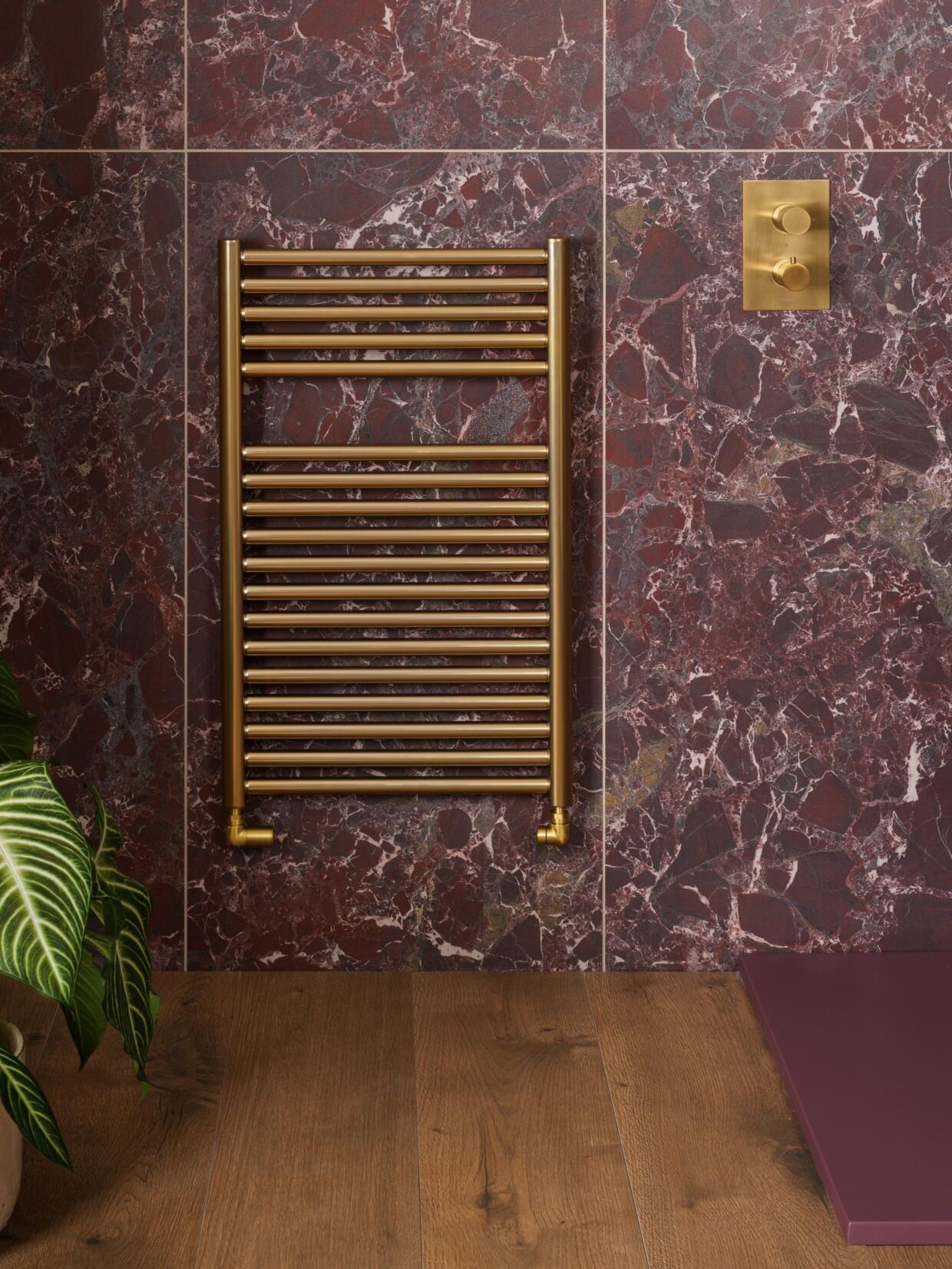

Available in Matt White, Soft Taupe, Brushed Brass and Brushed Nickel, Hugo Evolute offers a choice of subtle and metallic finishes to coordinate with different bathroom schemes. A wide range of sizes is available, with Central Heating, Dual Fuel and Electric Only configurations to suit different installation requirements. Coordinating valves, pipes, shrouds and heating elements are available separately where required.
Please note: Electric Towel rails are made to order, these will be ready within 3-5 working days and are non-refundable.
RRP From
£144.00
RRP From Excl VAT
£120.00
Technical Information
Tissino Towel Radiators are available* in three heating methods.
Simply select your radiator, then refer to the table below for other items needed for your configuration.
| Heating Configuration | Select Valves | Select Heating Element |
|---|---|---|
| Central Heating | Choose Single Fuel Valves | — |
| Dual Fuel | Choose Dual Fuel Valves | Choose a Compatible Heating Element |
| Electric Only | — | Included |
| Size | Base Code | Matt White / Soft Taupe ΔT60 | Brushed Brass ΔT60 | Brushed Nickel ΔT60 |
|---|---|---|---|---|

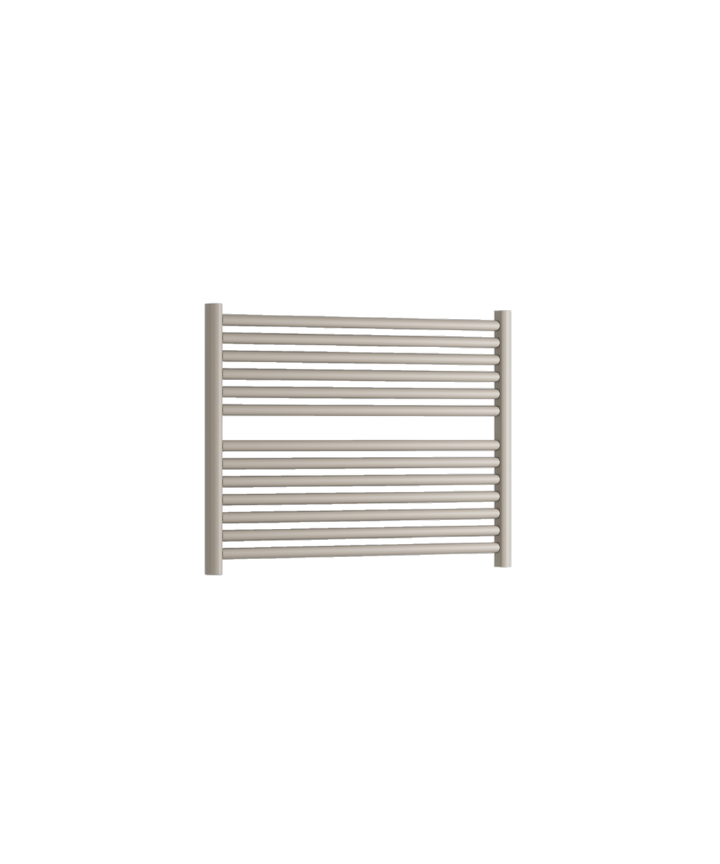

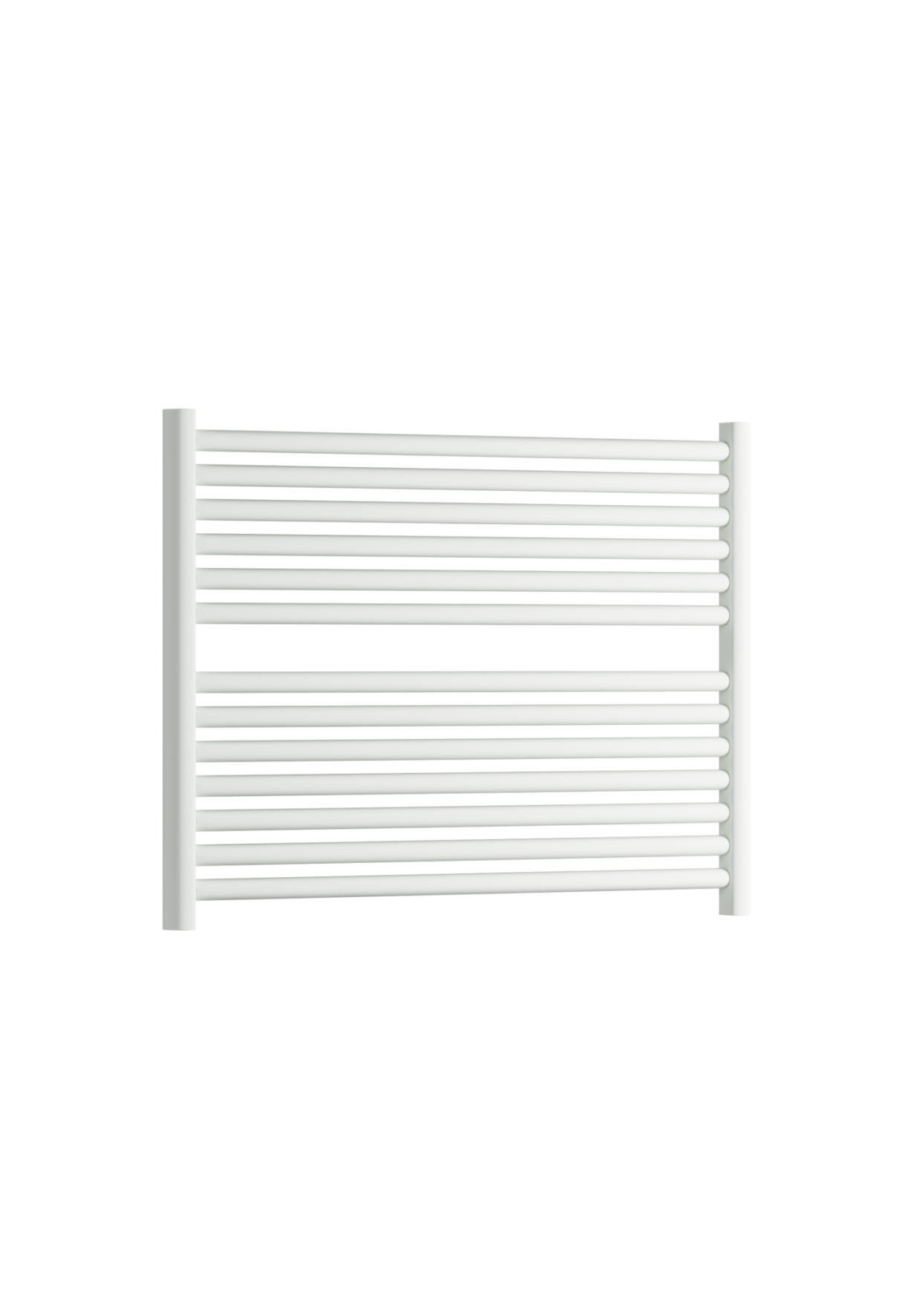

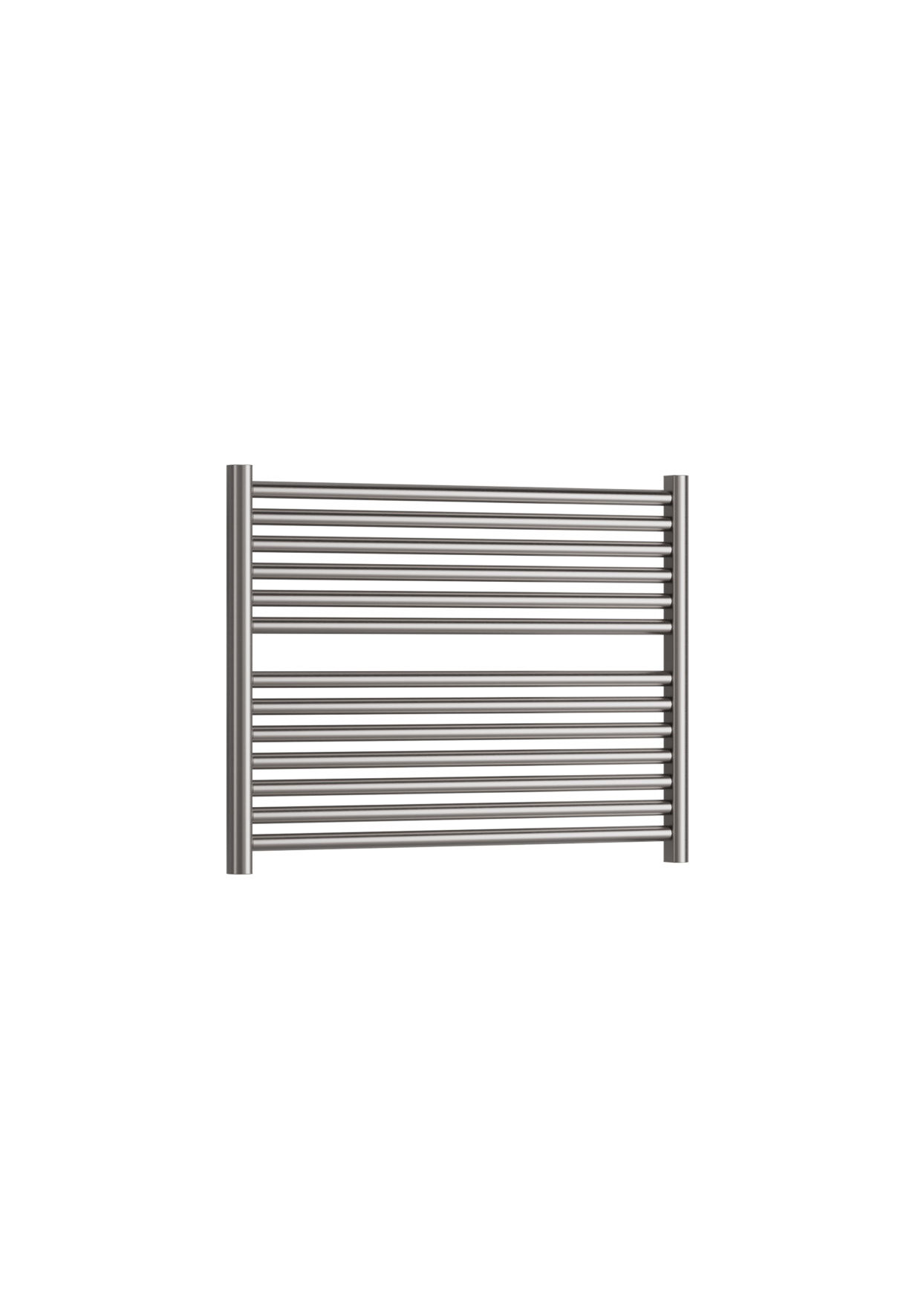

| 600 × 800mm | THE-112 | 2287 BTU / 641W | 2080 BTU / 610W | 2045 BTU / 599W |

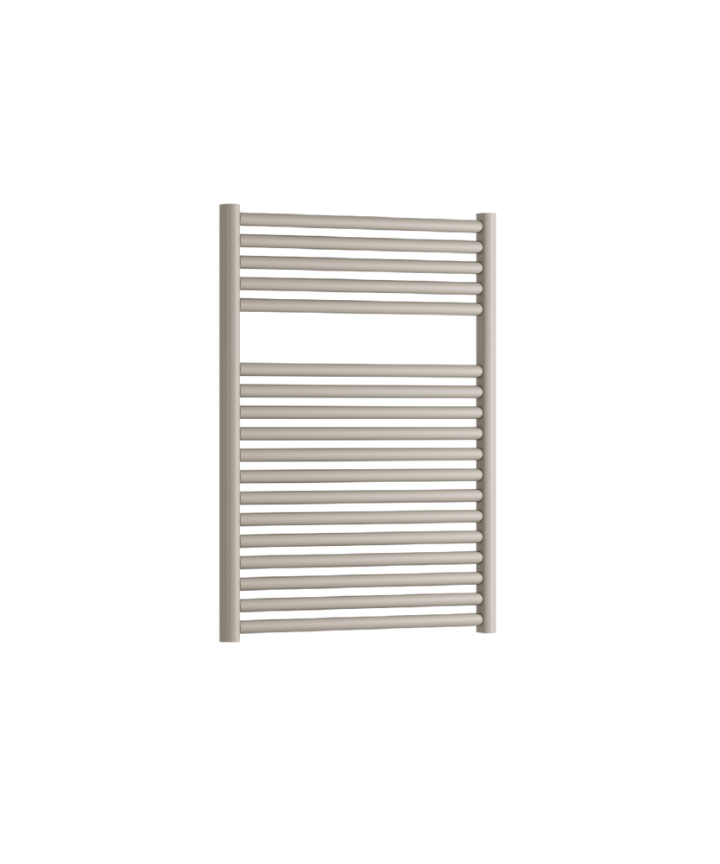

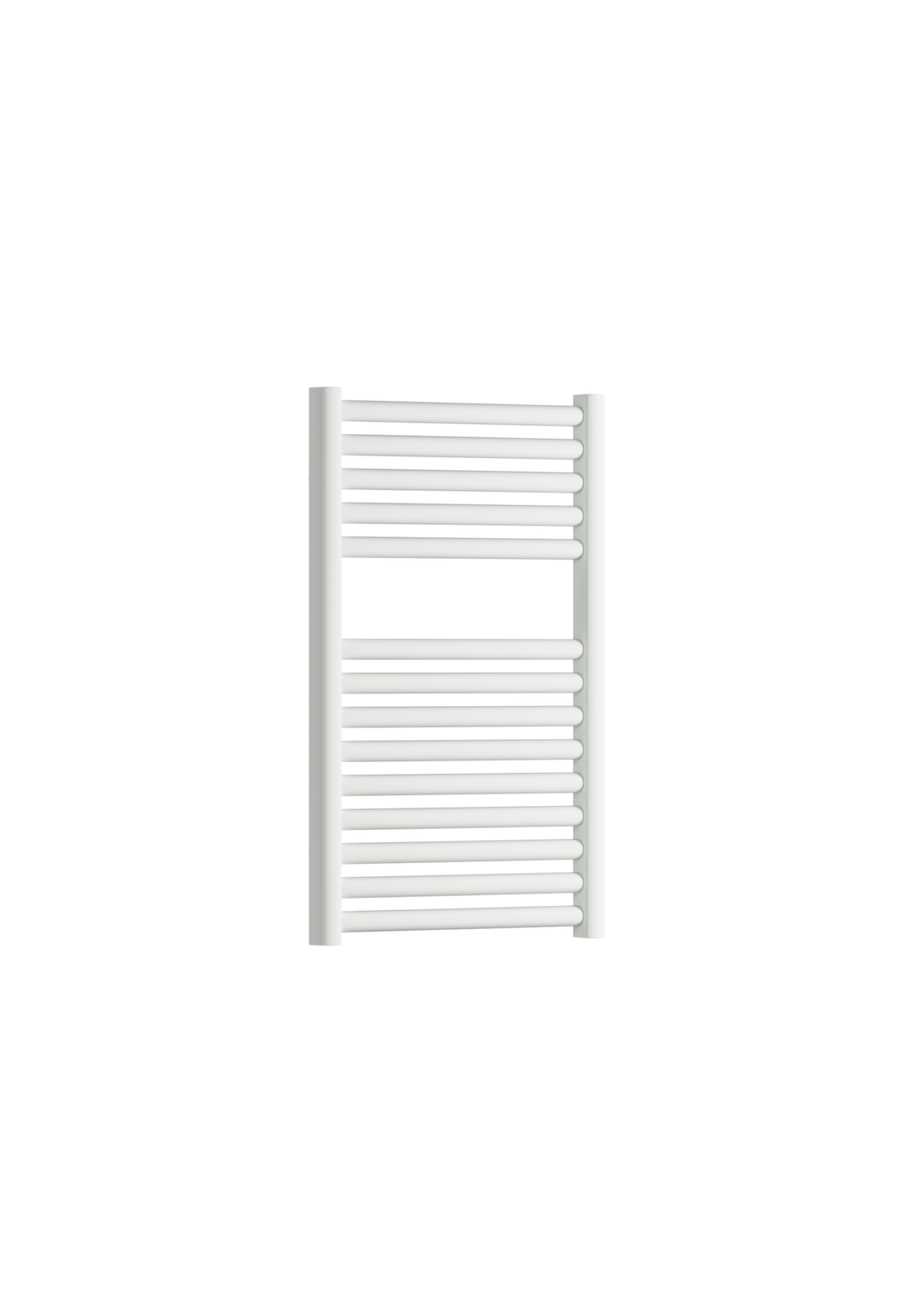

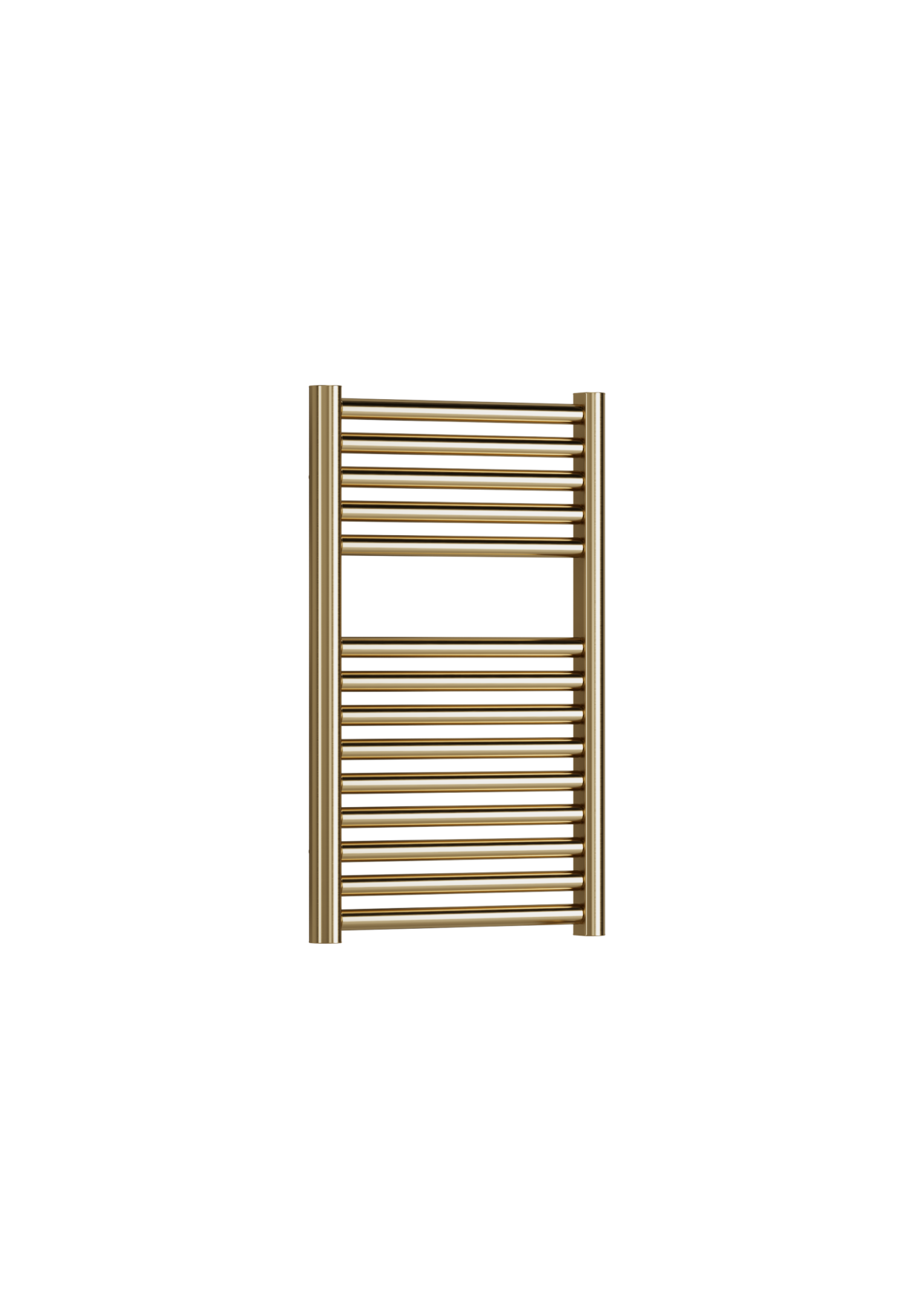

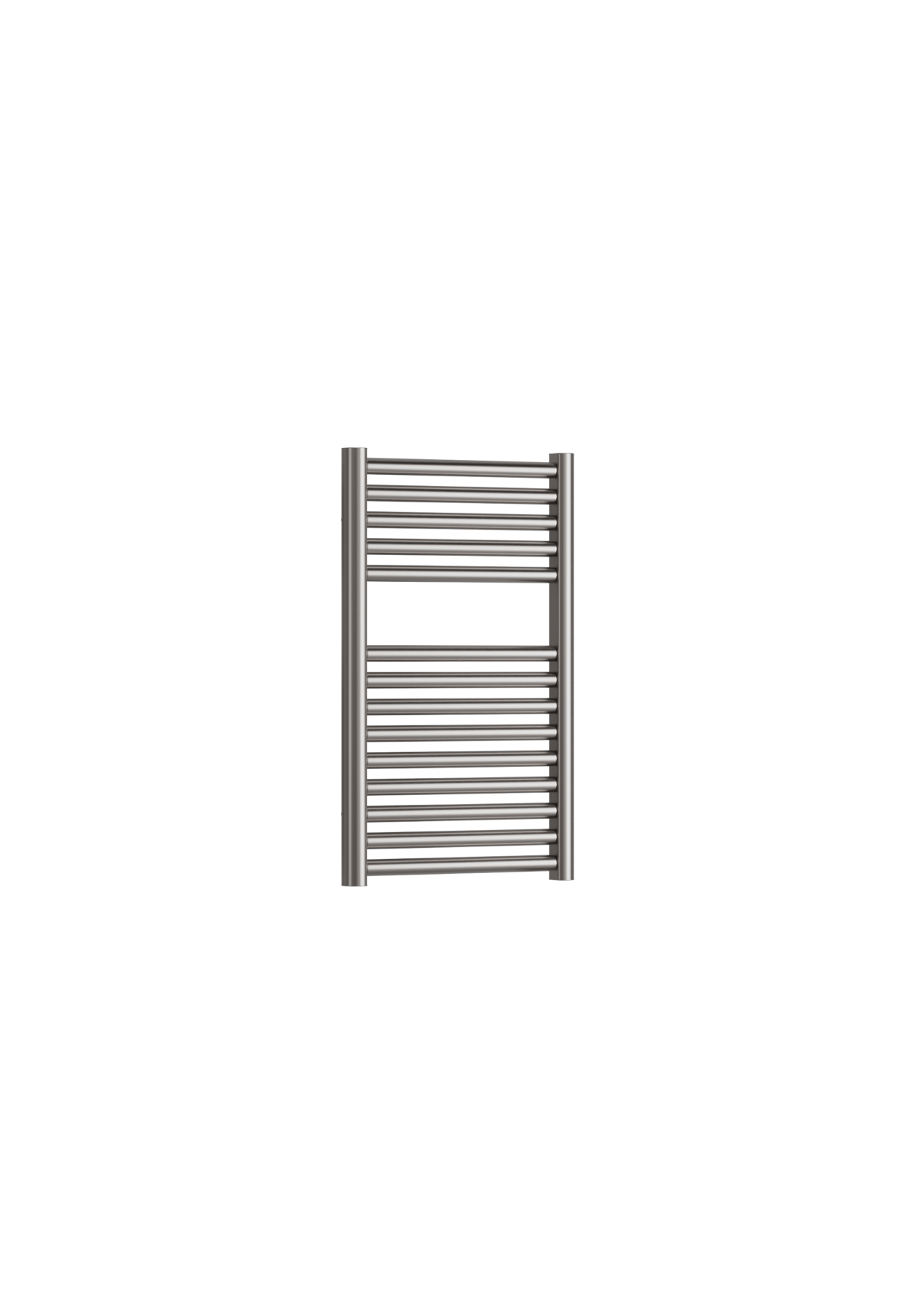

| 652 × 400mm | THE-101 | 1275 BTU / 374W | 1261 BTU / 370W | 1213 BTU / 356W |

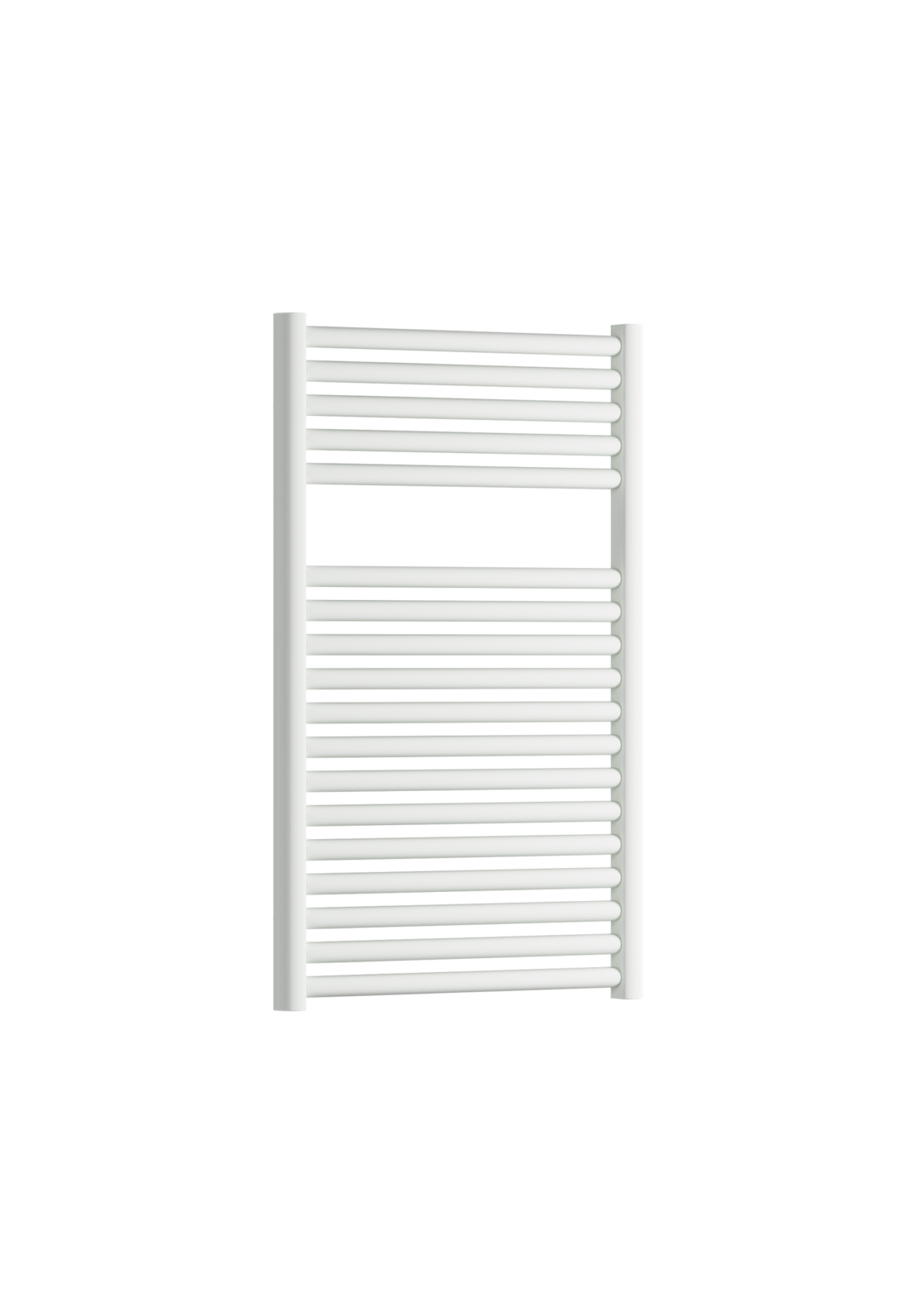

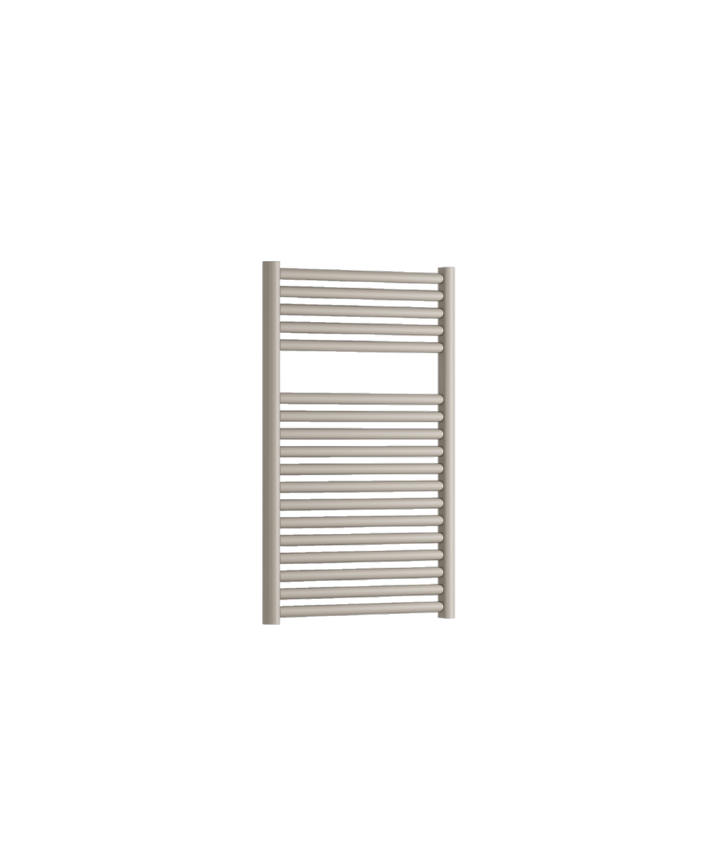

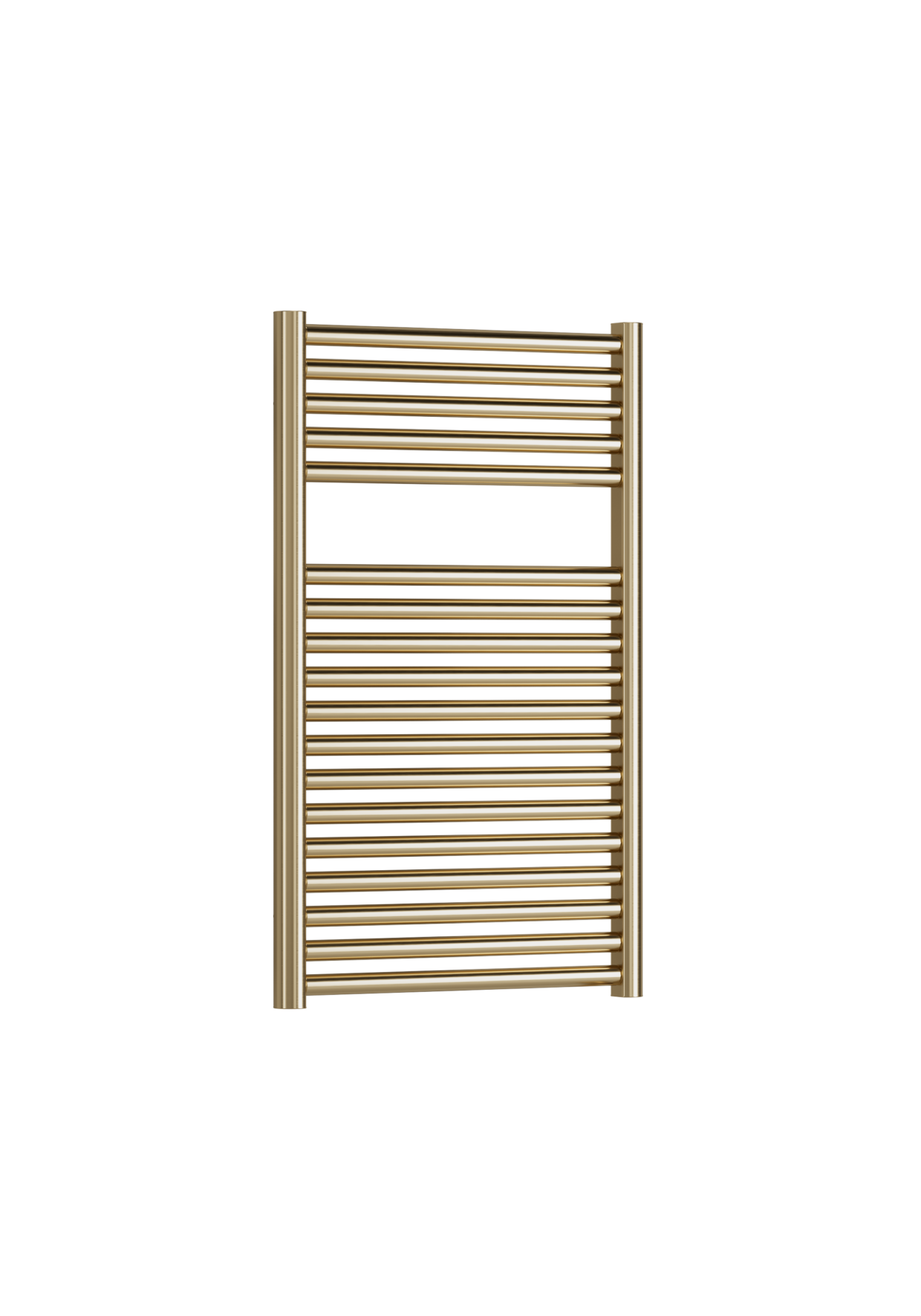

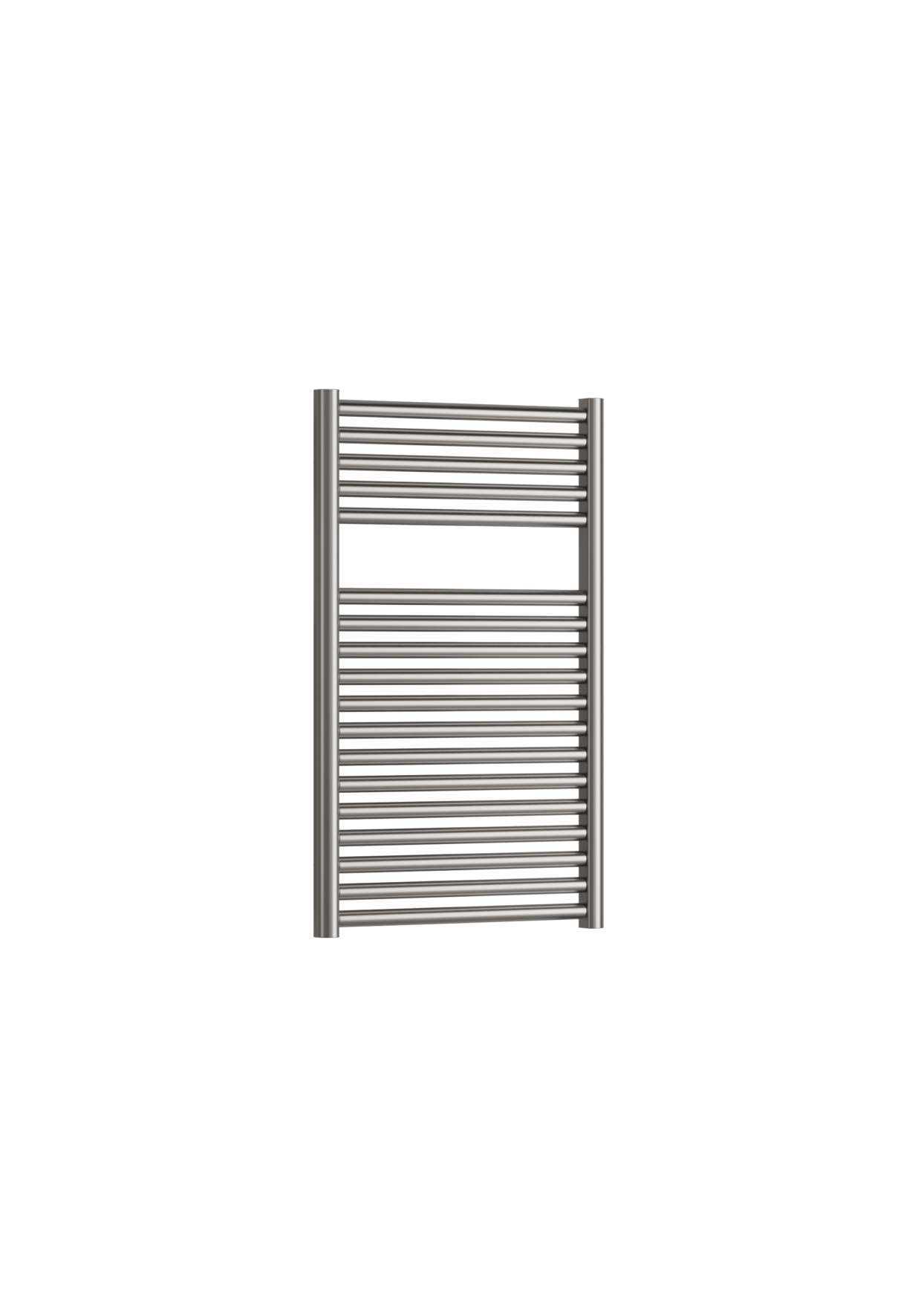

| 812 × 500mm | THE-102 | 1945 BTU / 570W | 1777 BTU / 521W | 1829 BTU / 536W |

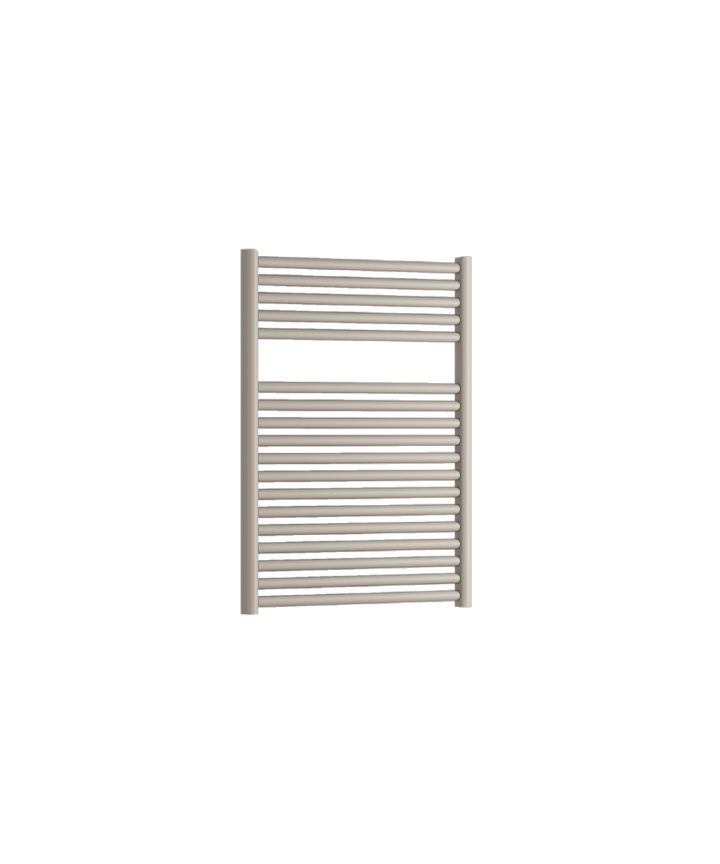

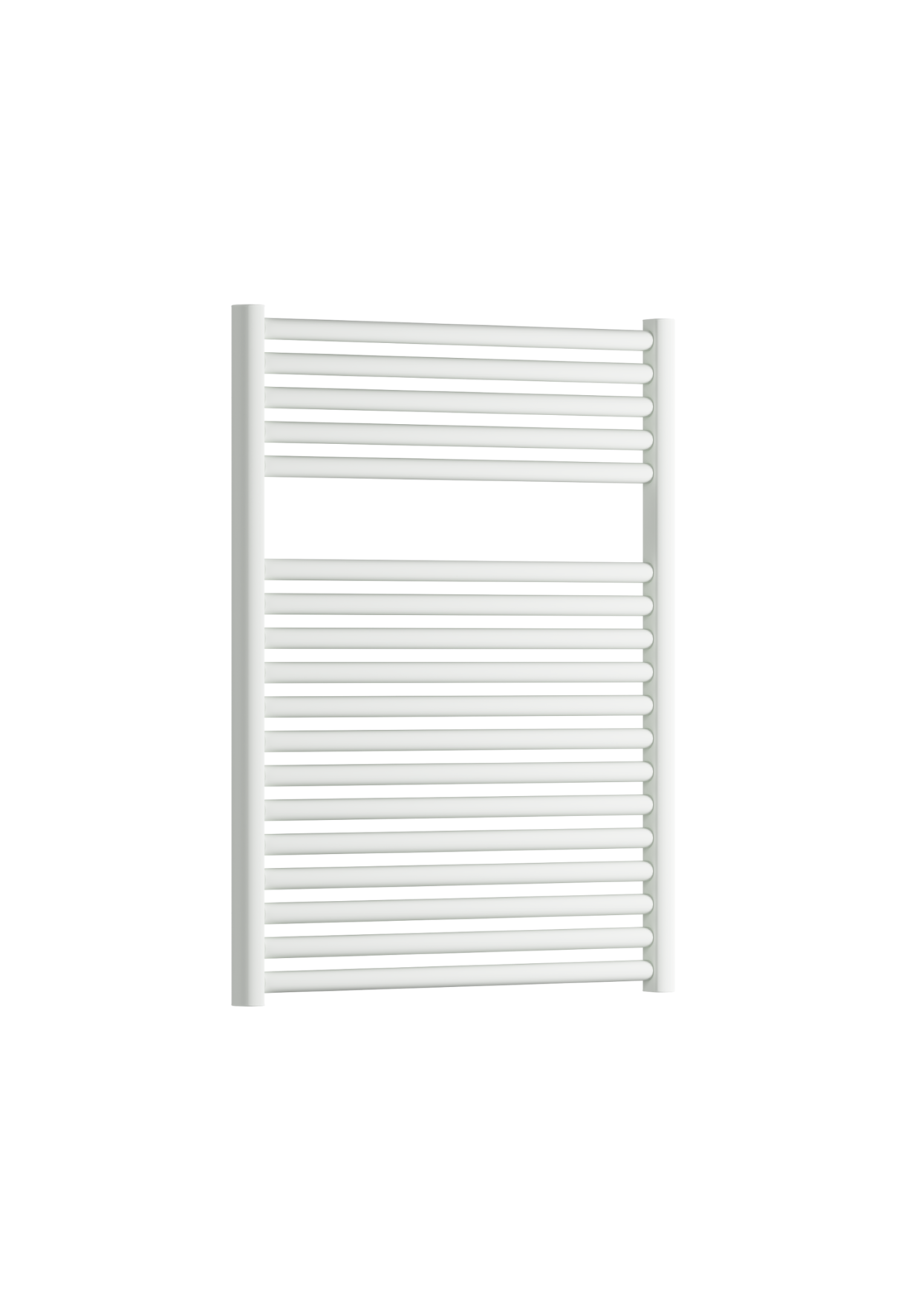

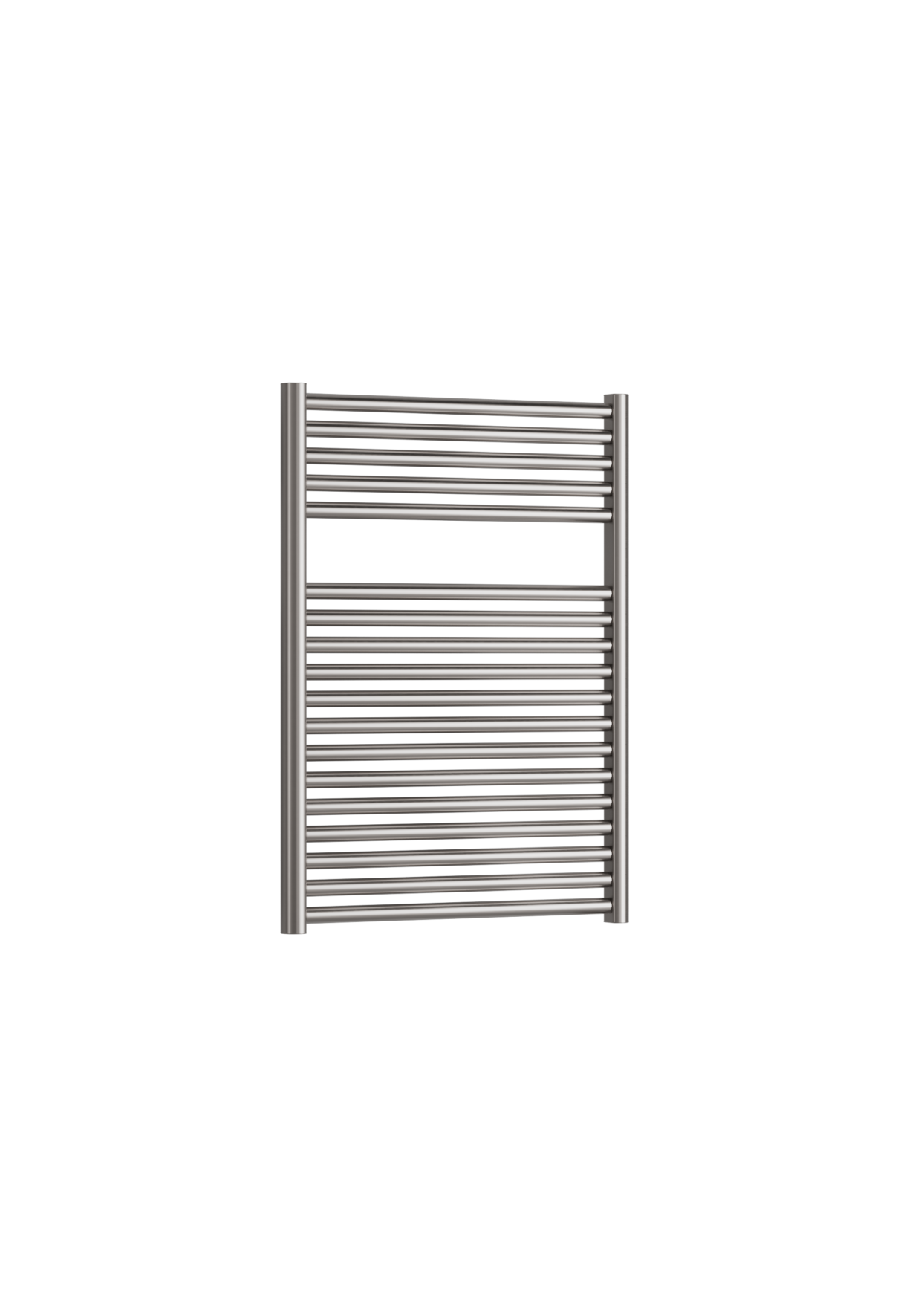

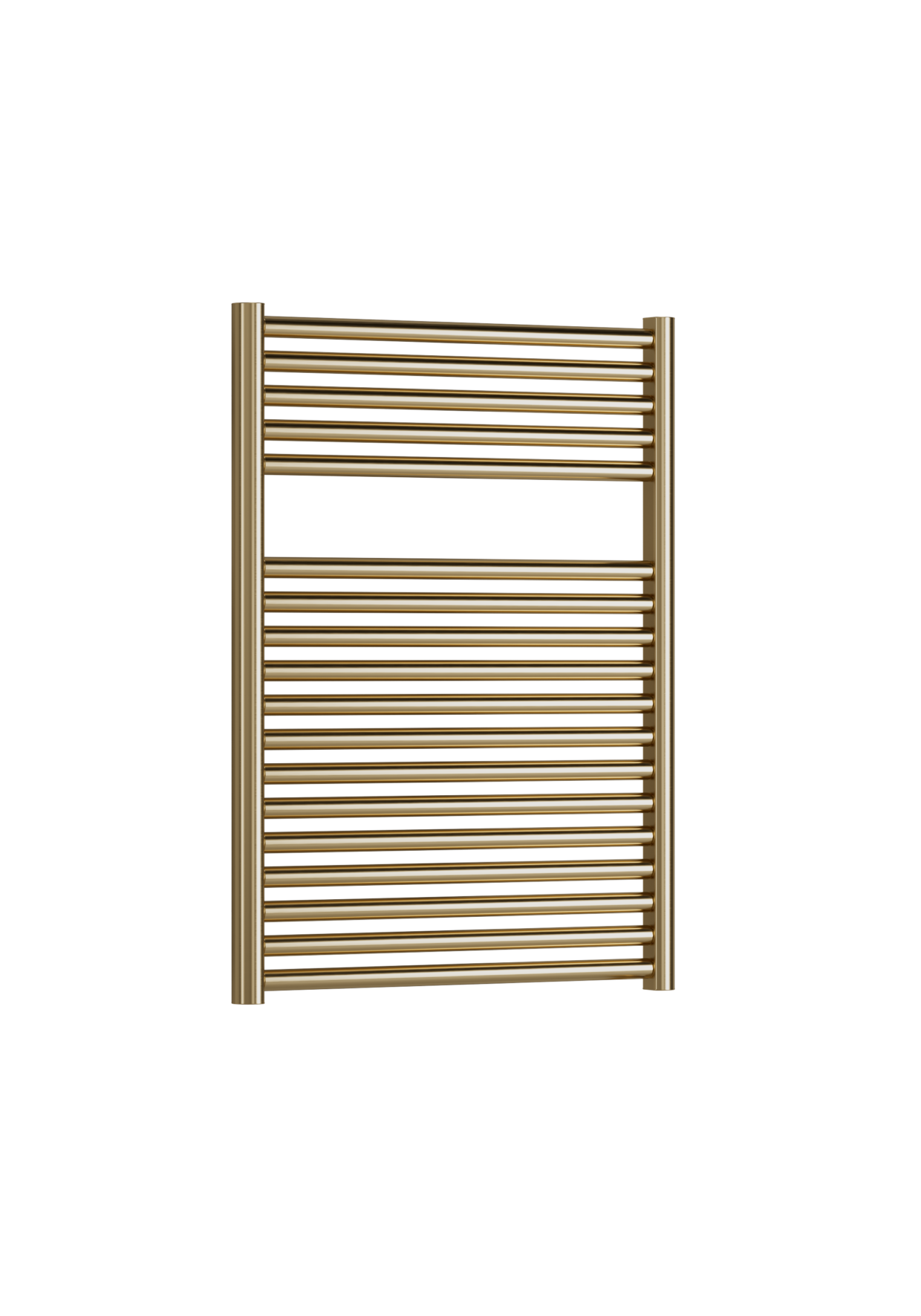

| 812 × 600mm | THE-103 | 2326 BTU / 682W | 2063 BTU / 605W | 2123 BTU / 622W |

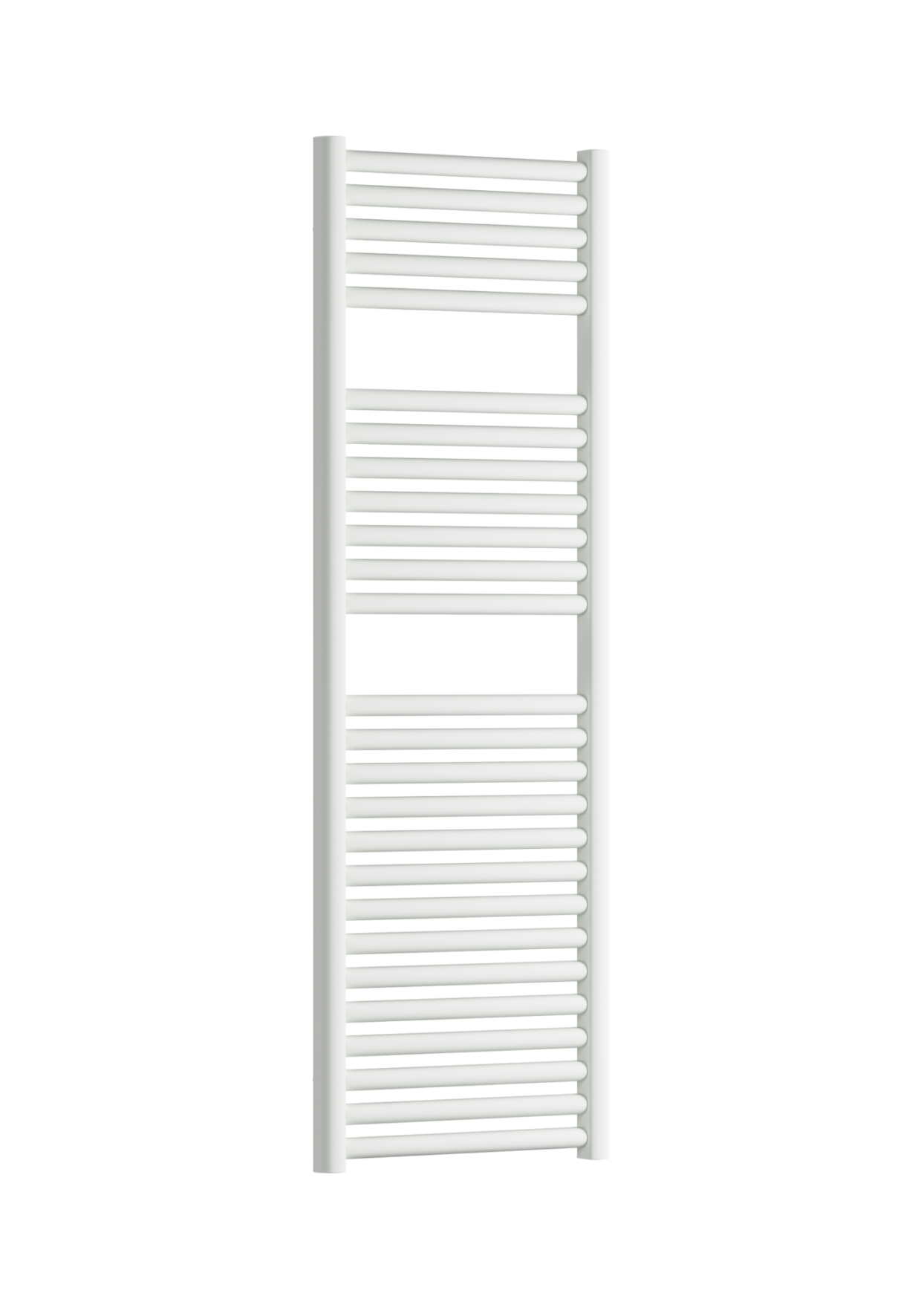

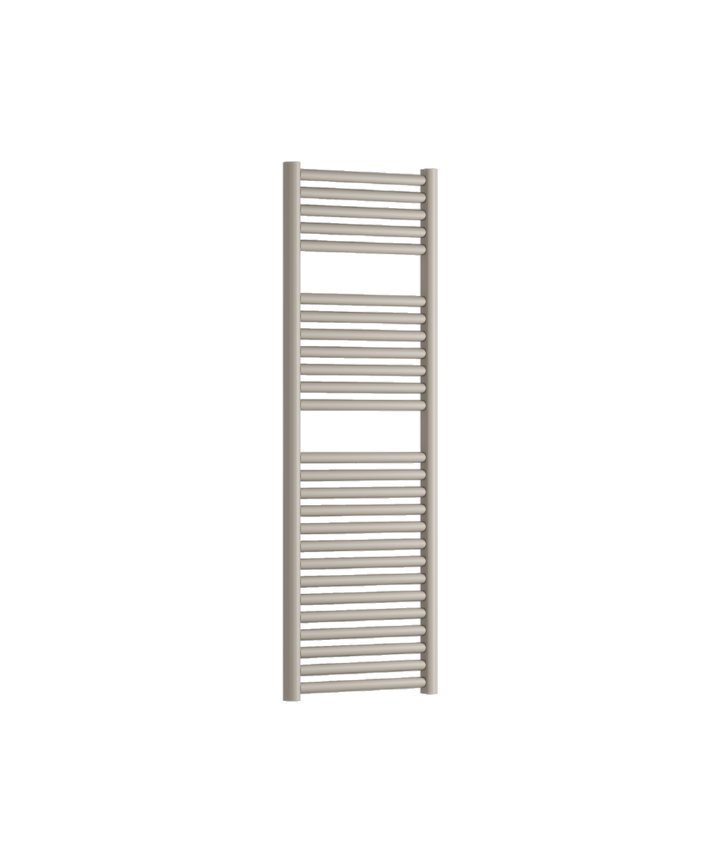

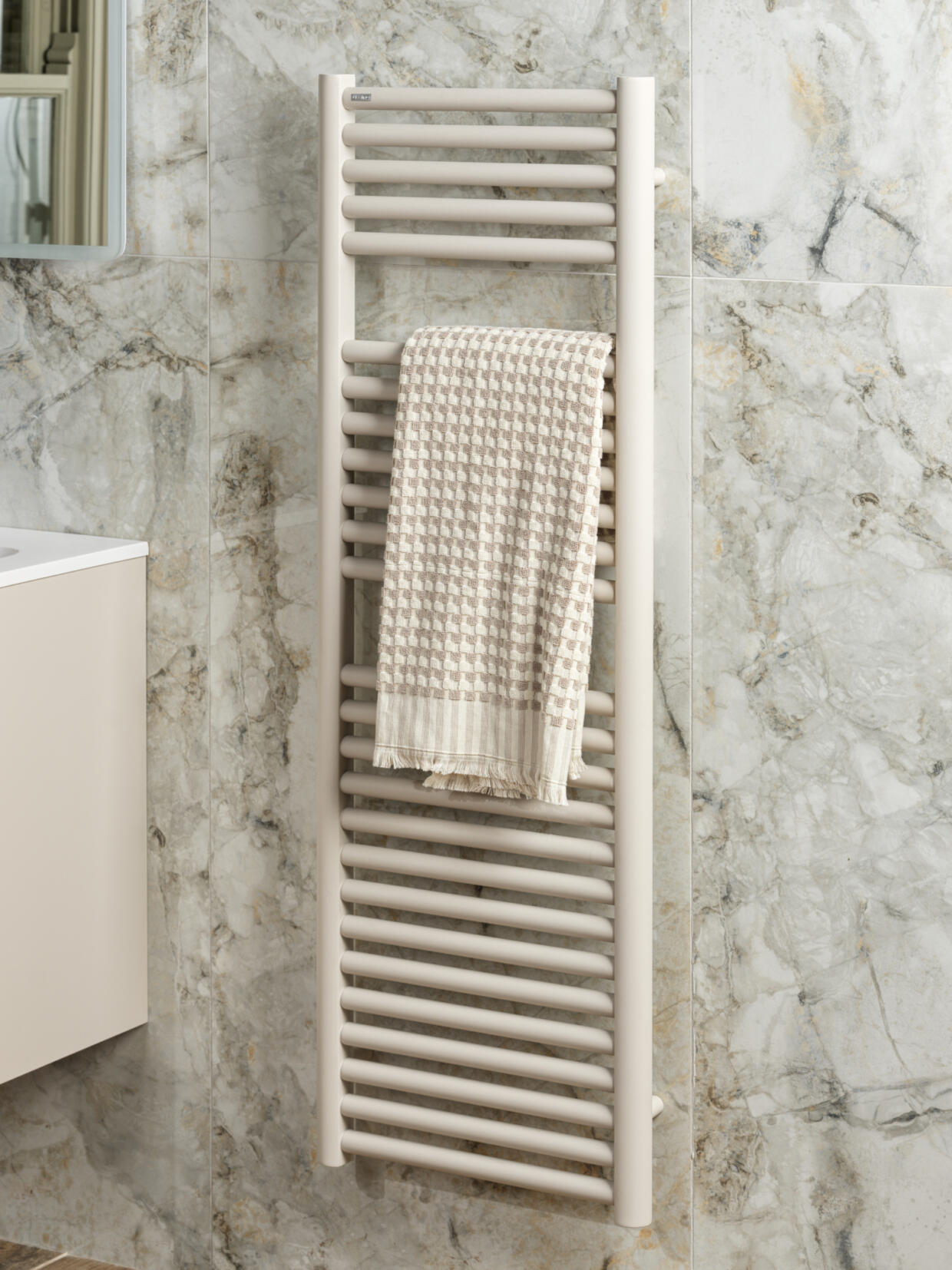

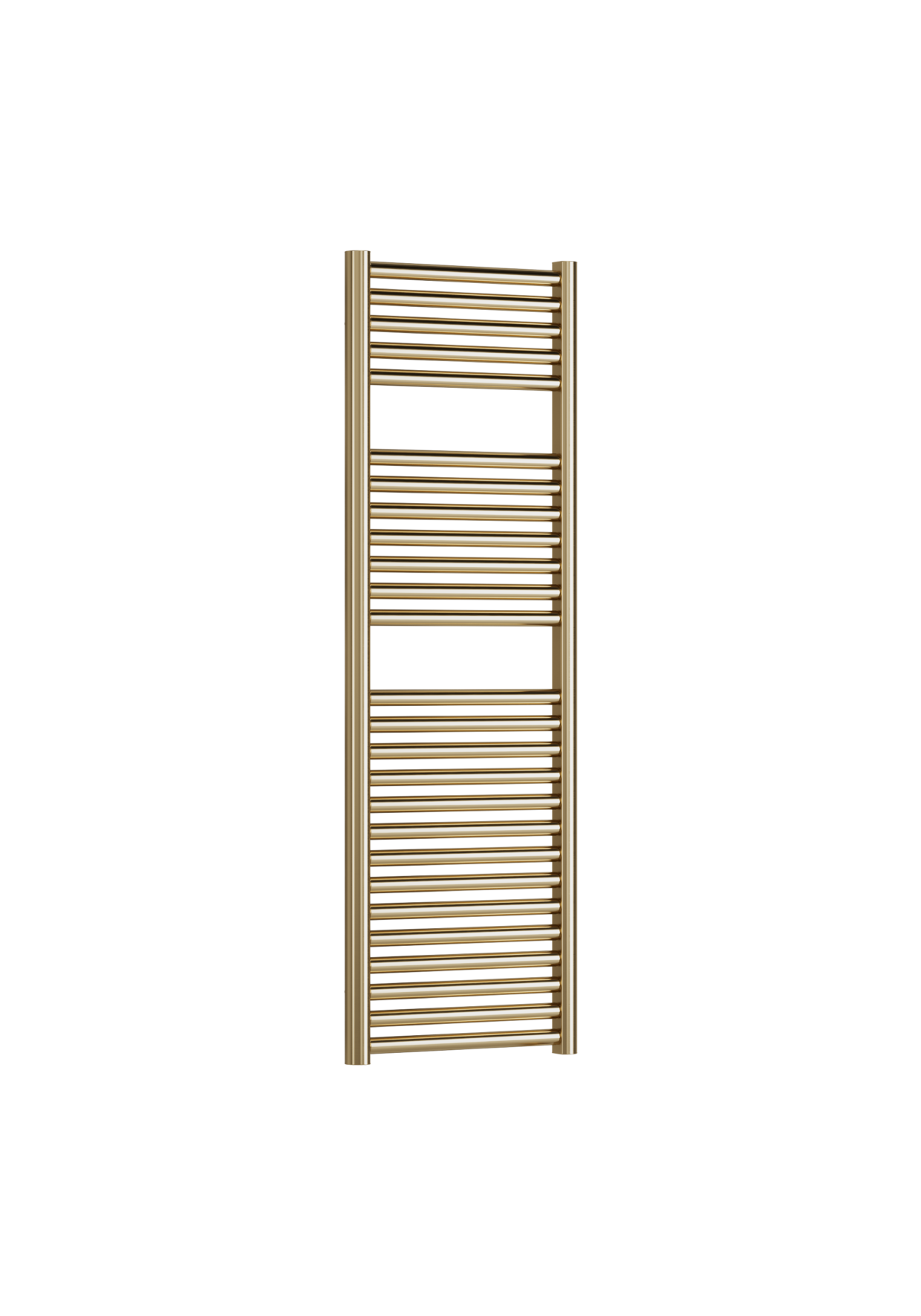

| 1212 × 400mm | THE-110 | 2525 BTU / 740W | 2132 BTU / 625W | 2080 BTU / 610W |

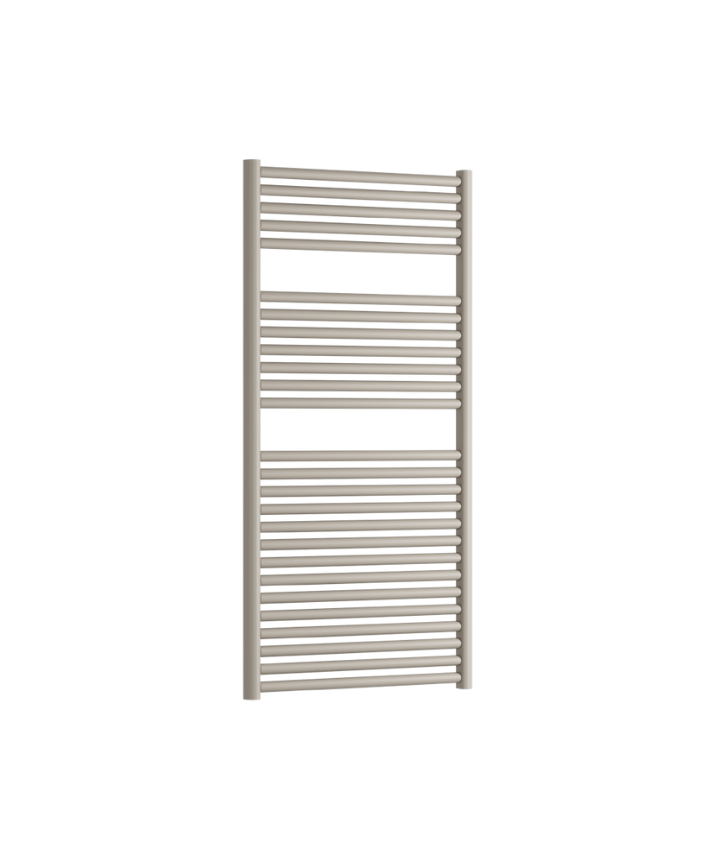

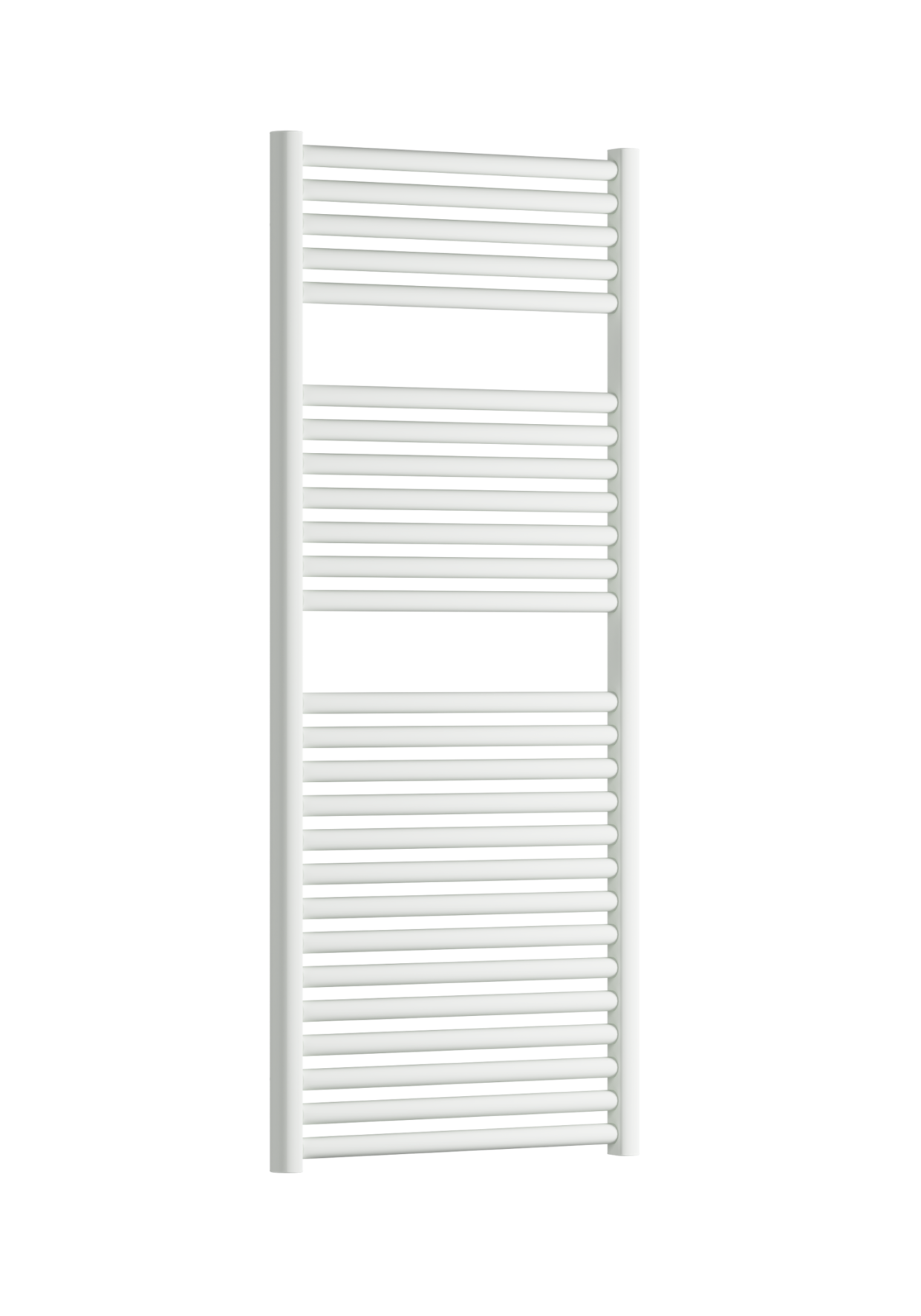

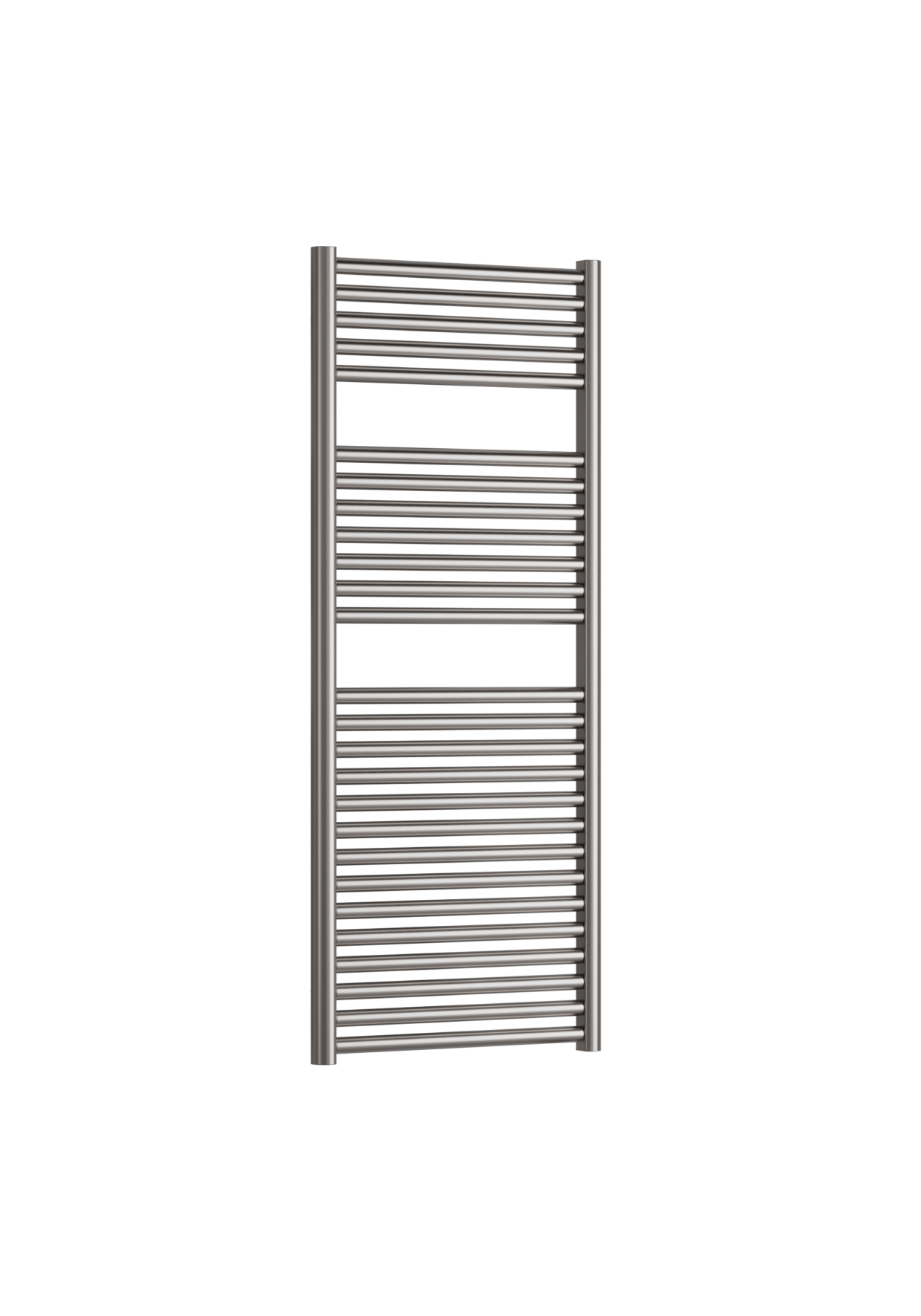

| 1212 × 500mm | THE-104 | 2847 BTU / 834W | 2544 BTU / 745W | 2518 BTU / 738W |

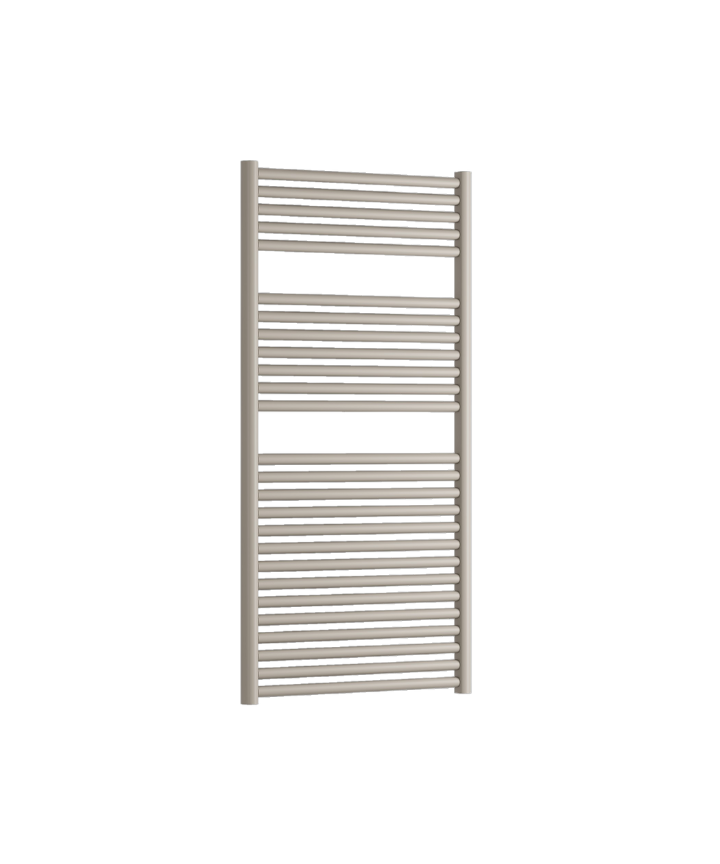

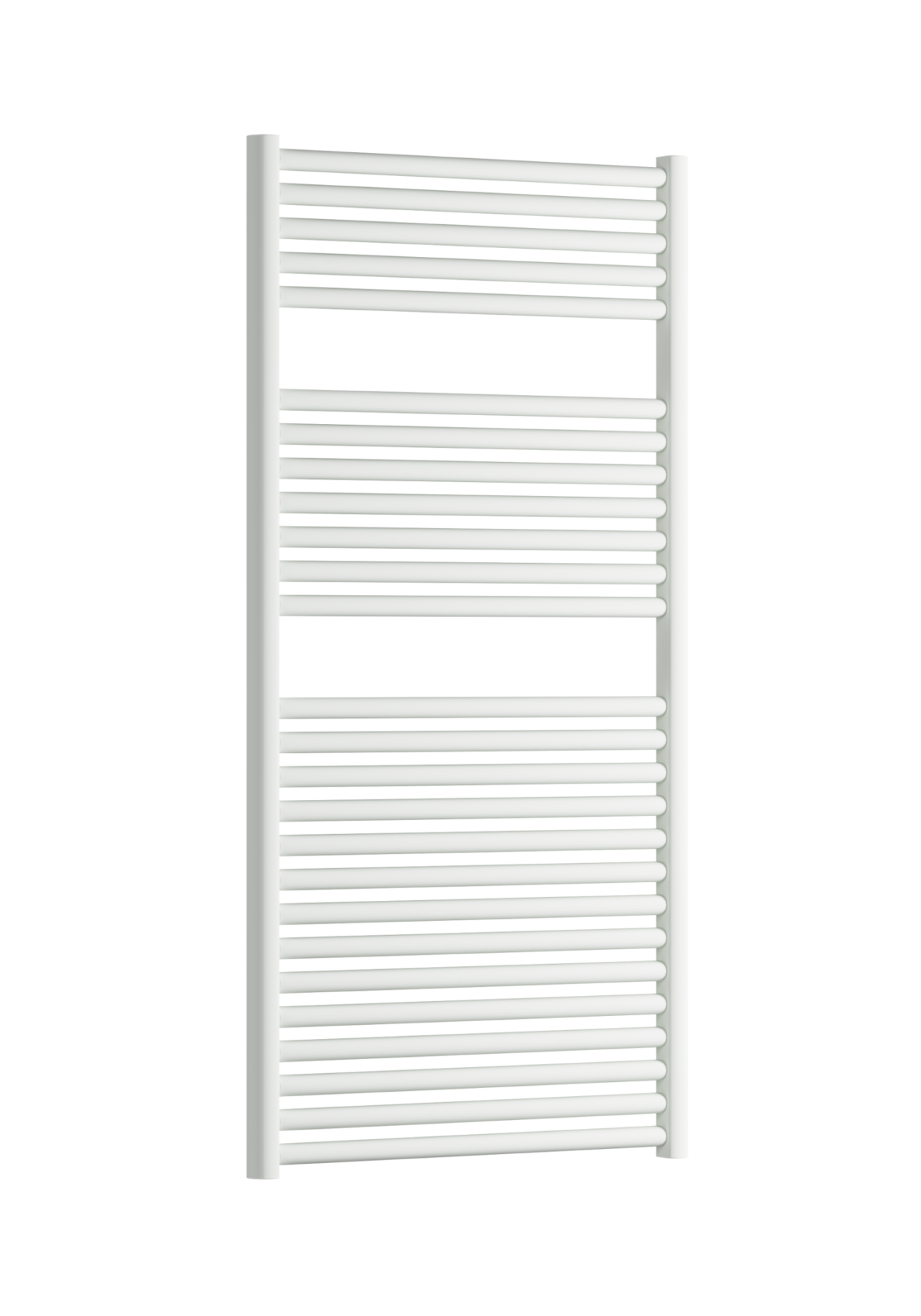

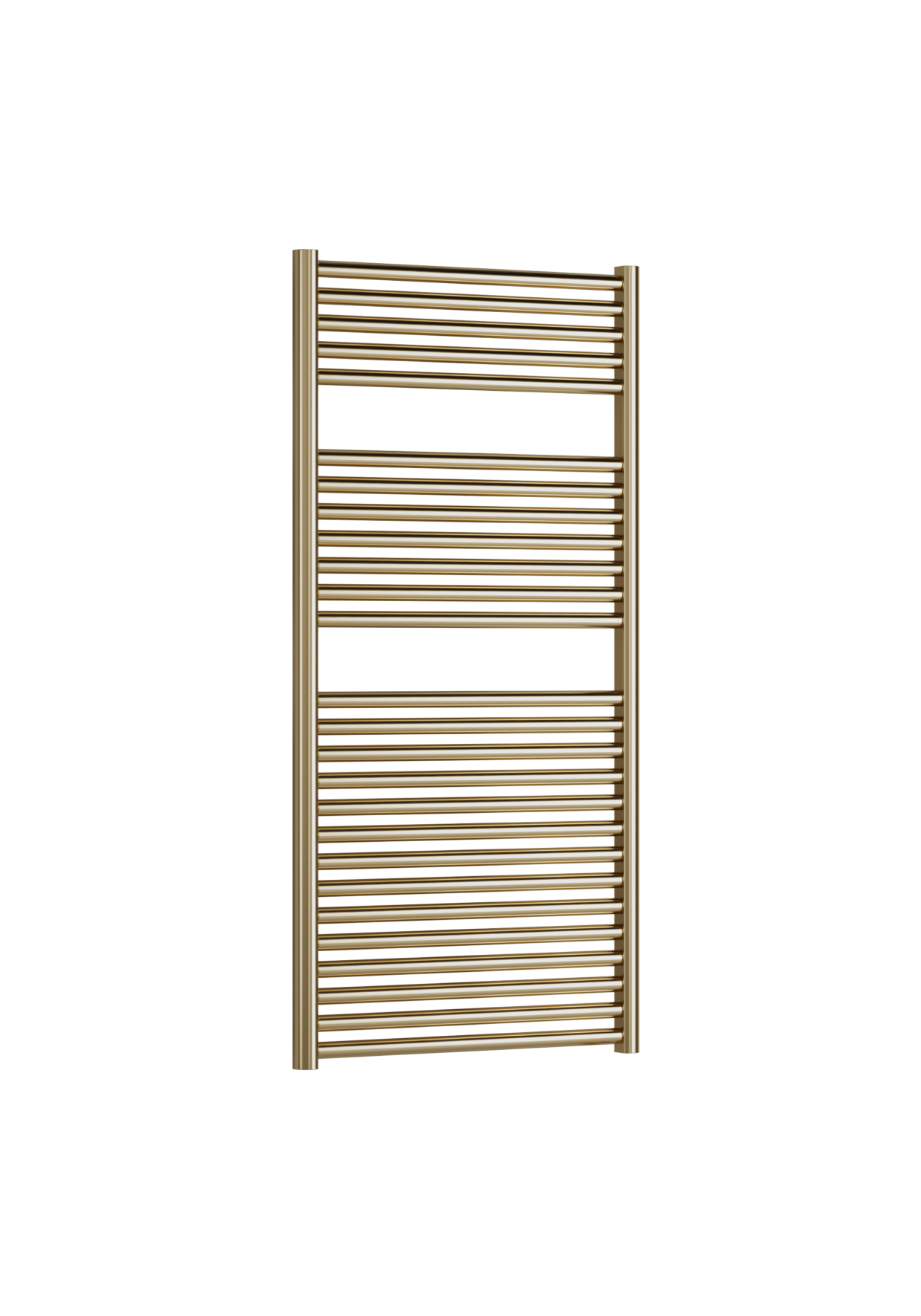

| 1212 × 600mm | THE-105 | 3411 BTU / 1000W | 2960 BTU / 867W | 2955 BTU / 866W |

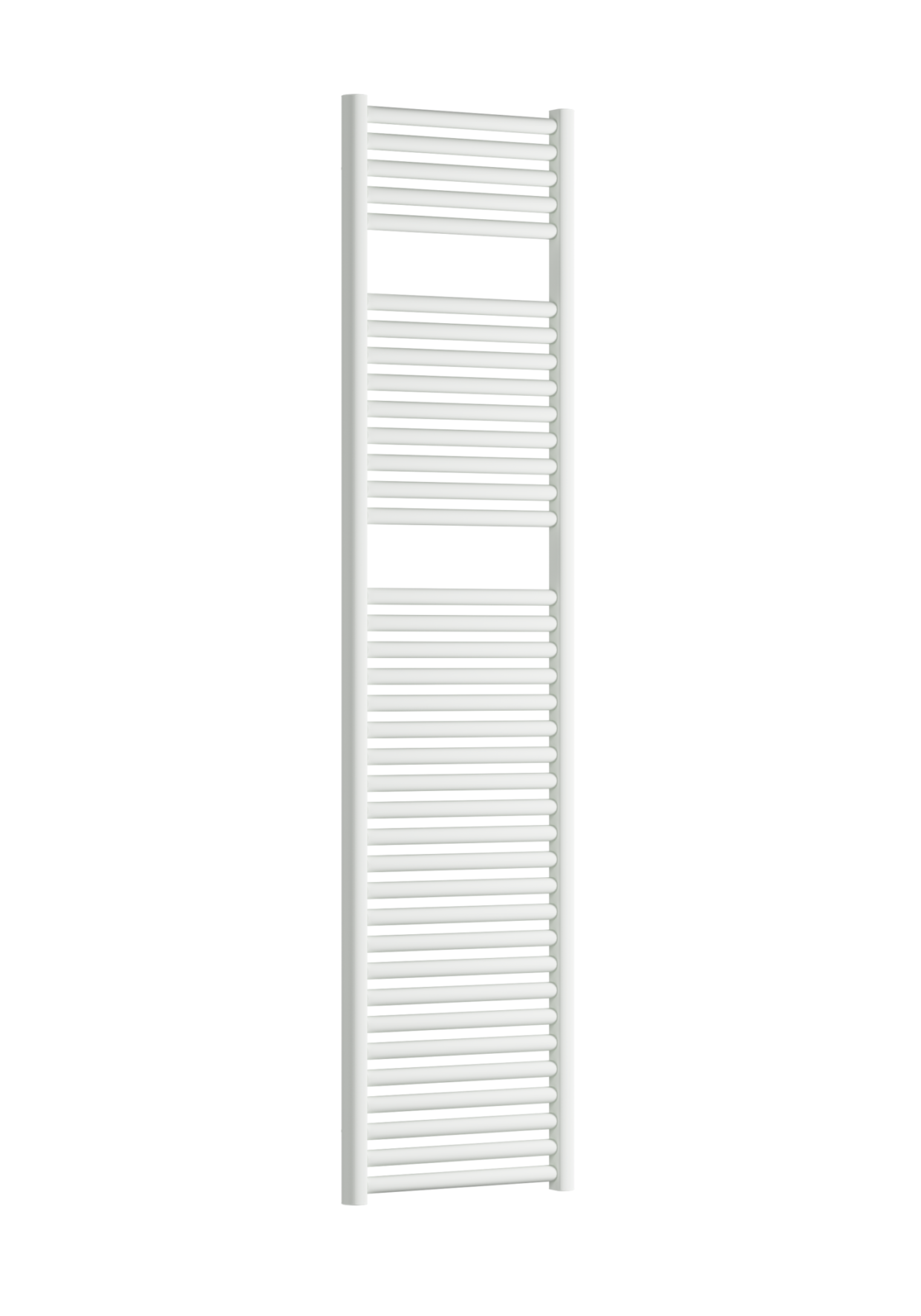

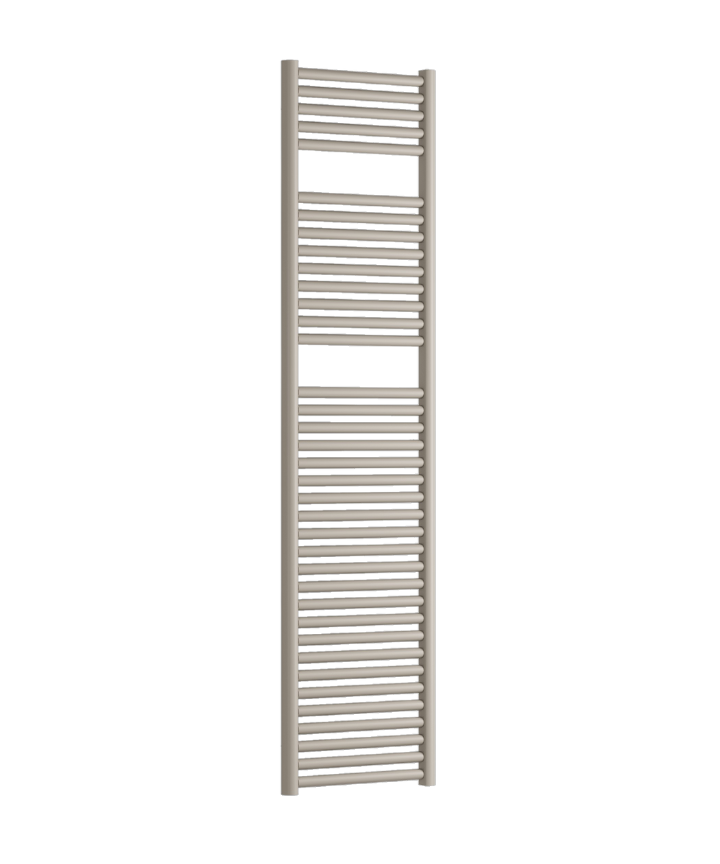

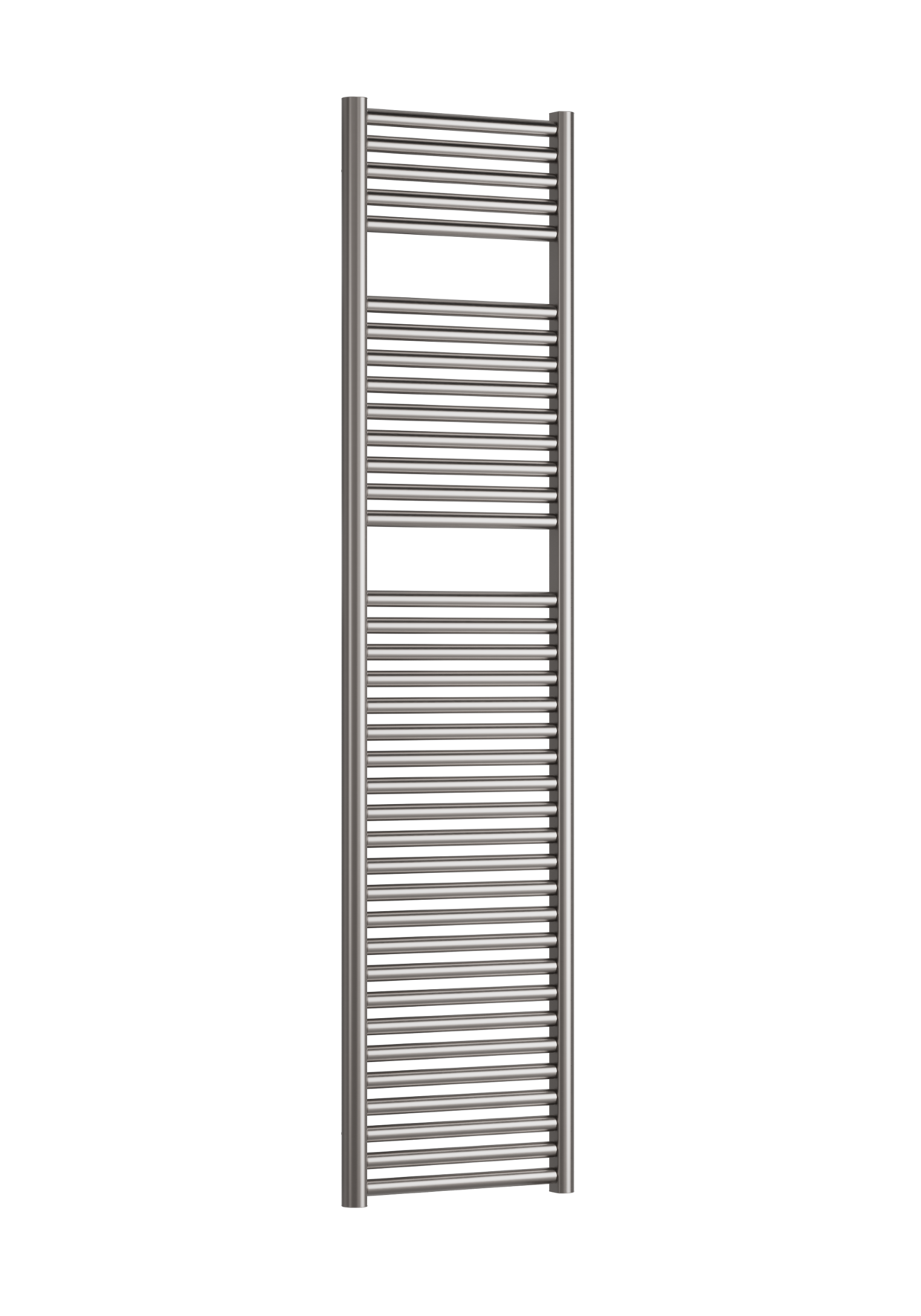

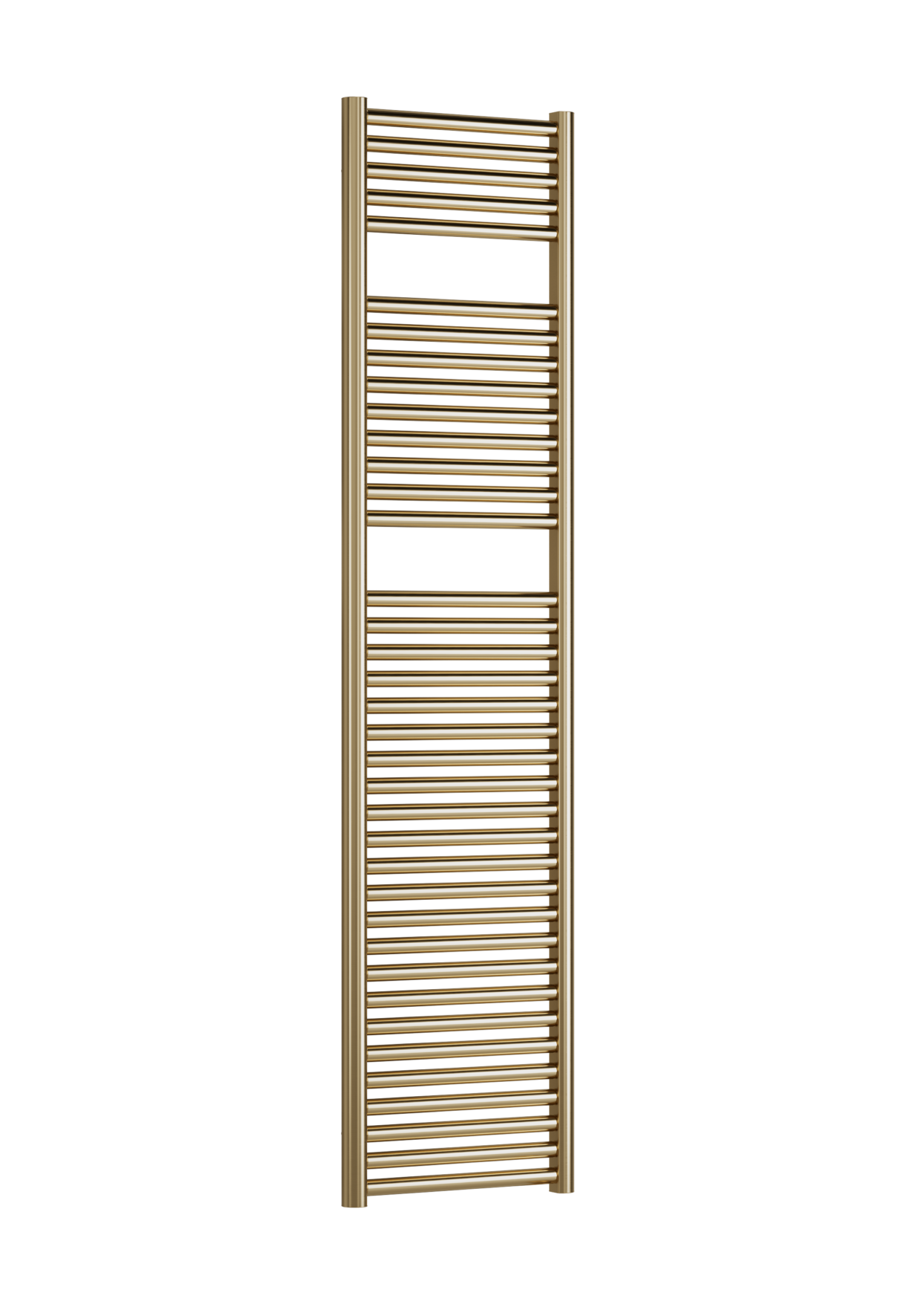

| 1652 × 400mm | THE-111 | 3535 BTU / 1036W | 2804 BTU / 822W | 2808 BTU / 823W |

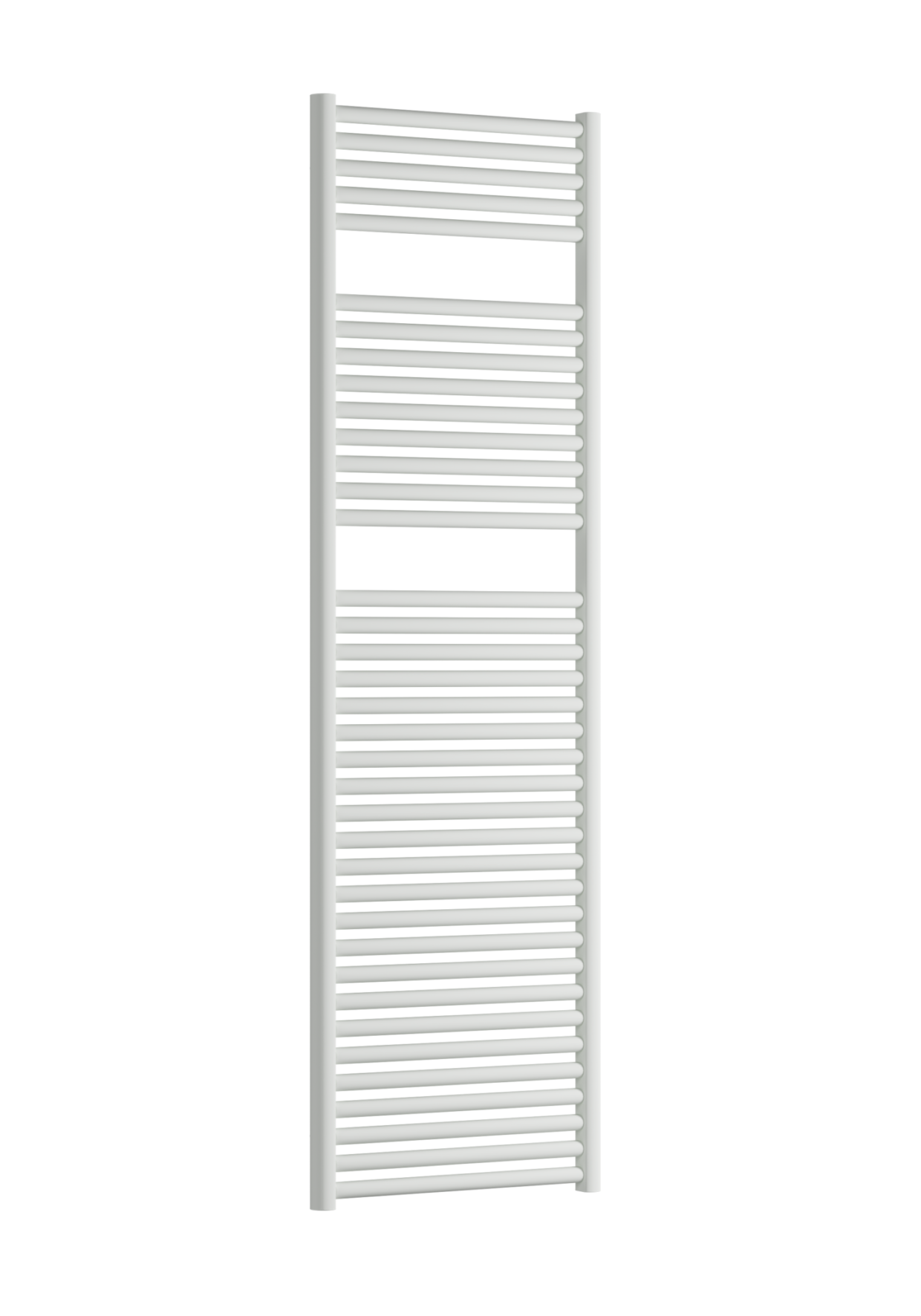

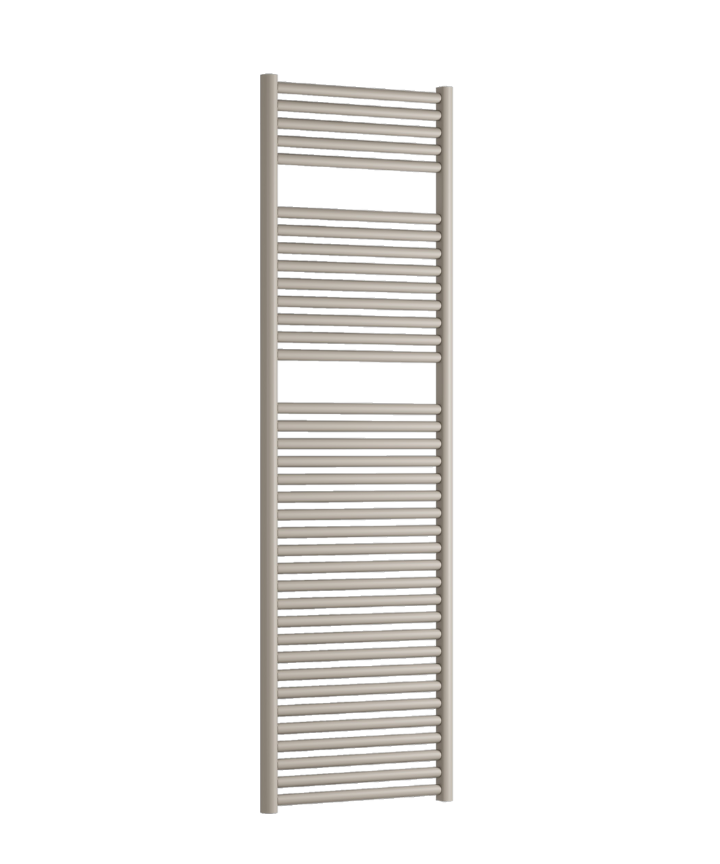

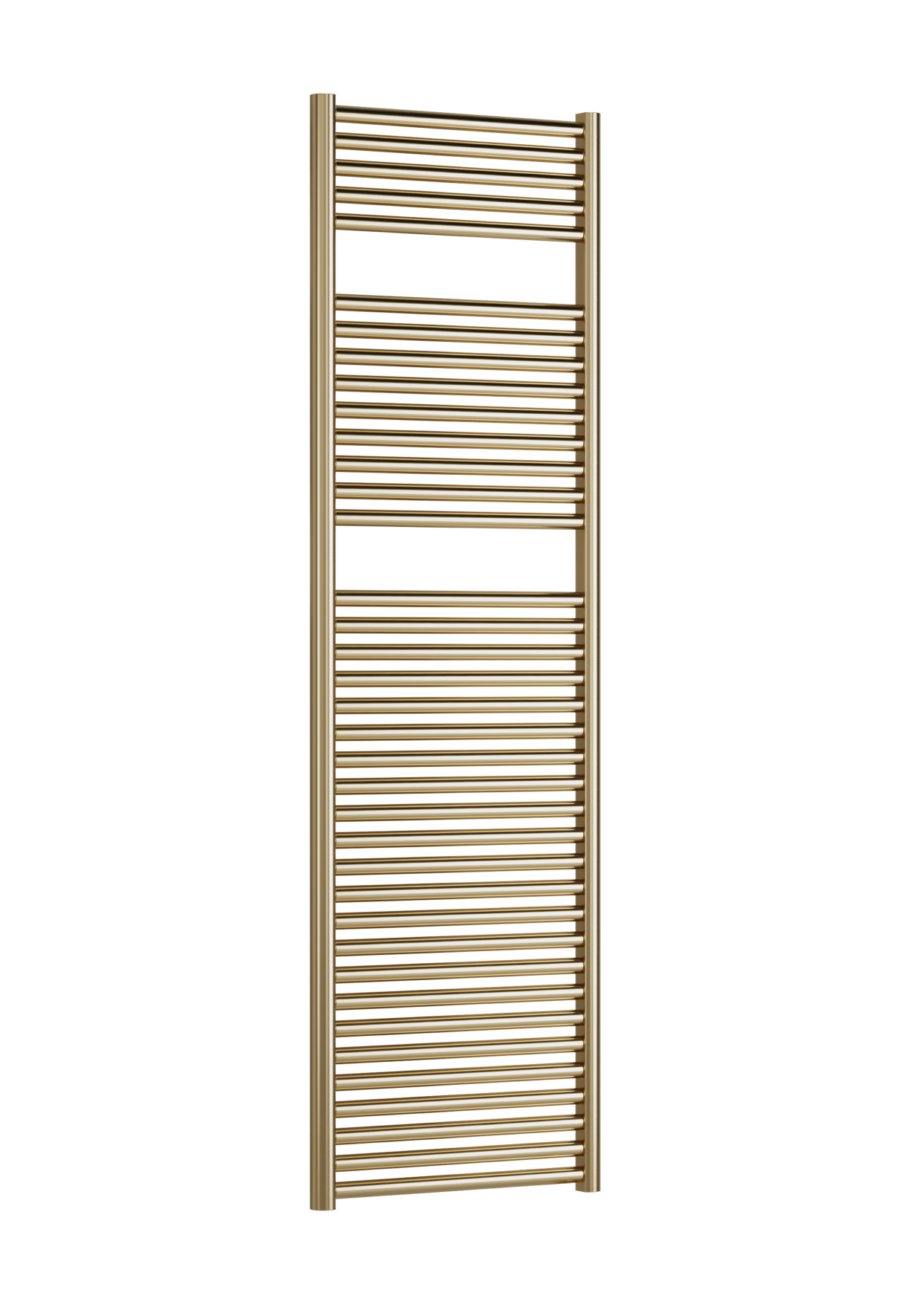

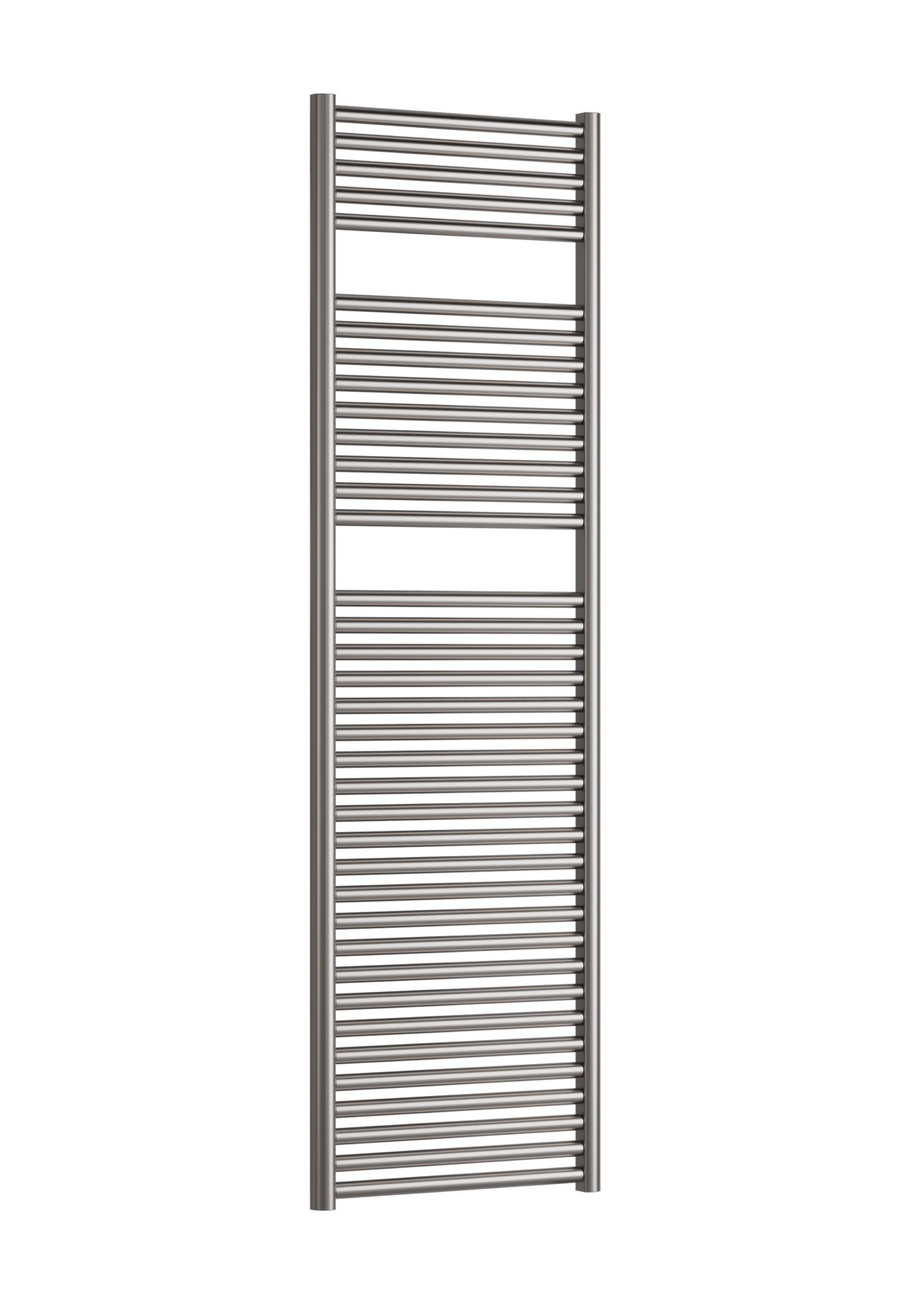

| 1652 × 500mm | THE-107 | 3900 BTU / 1143W | 3419 BTU / 1002W | 3514 BTU / 1030W |

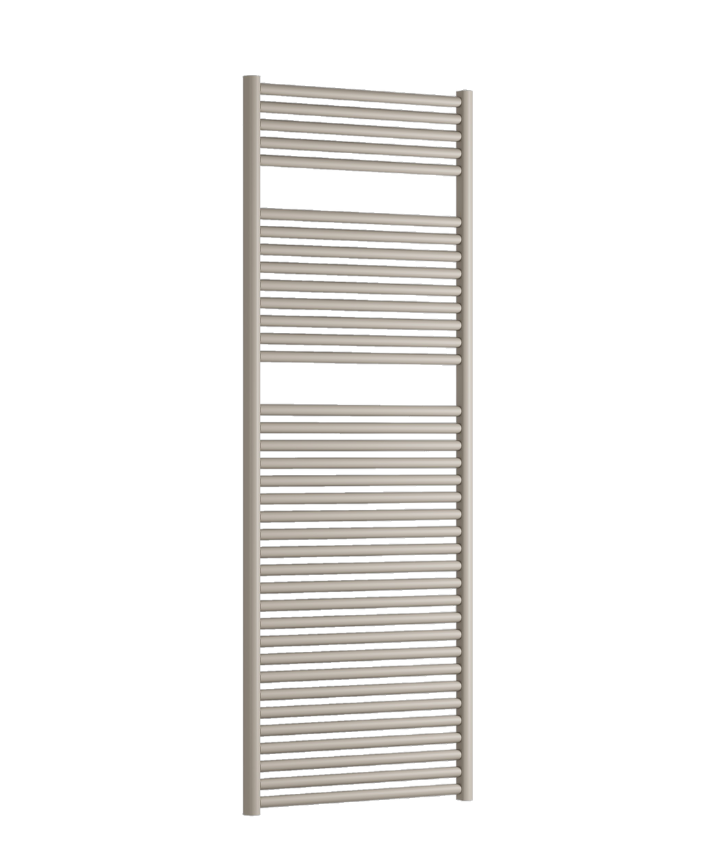

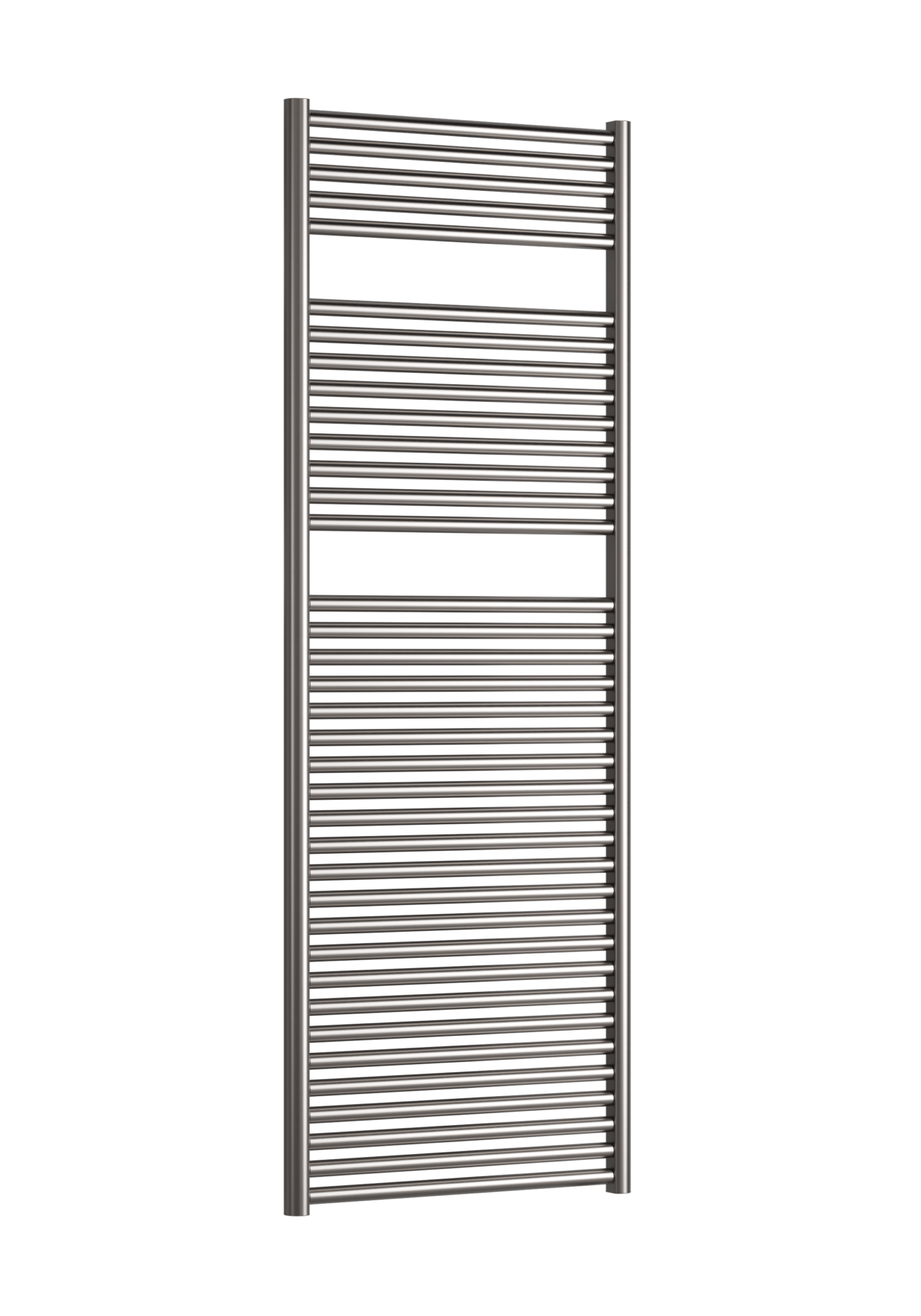

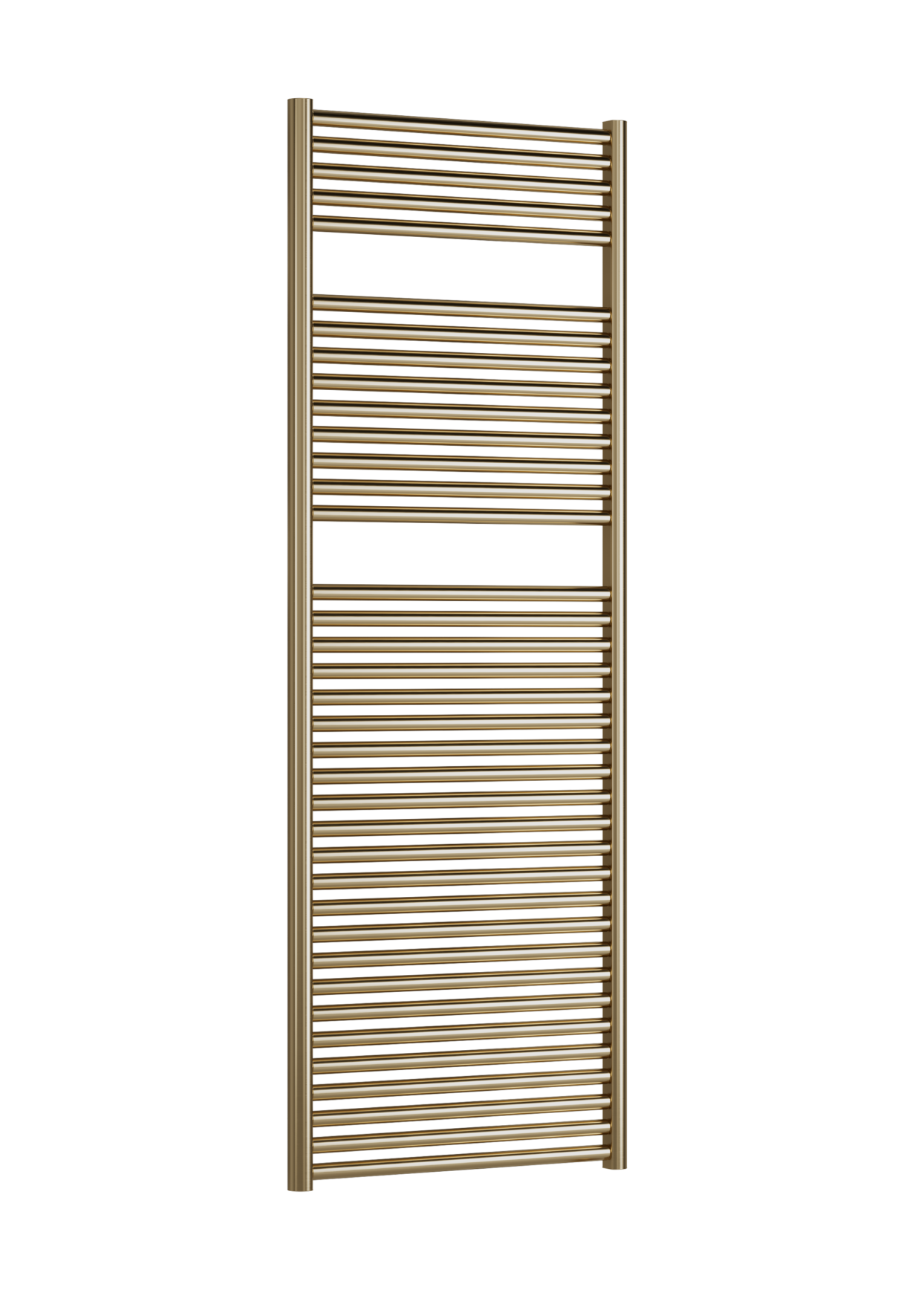

| 1652 × 600mm | THE-108 | 4660 BTU / 1366W | 4034 BTU / 1182W | 4221 BTU / 1237W |
Clean the radiator with a lint free cloth with warm water only.
Bleeding the radiator is done by twisting the bleed valve at the back at the top of the radiator by hand. Once all the air has escaped and water starts to bleed out, tighten the valve ensuring it is water tight.
- THE 112 Hugo Evolute towel rail 600x800 Datasheet v3 (PDF, 240.7 KB)
- THE 111 Hugo Evolute towel rail 1652x400 Datasheet v3 (PDF, 365.1 KB)
- THE 110 Hugo Evolute towel rail 1212x500 Datasheet v3 (PDF, 241.8 KB)
- THE 108 Hugo Evolute towel rail 1652x600 Datasheet v3 (PDF, 409.6 KB)
- THE 107 Hugo Evolute towel rail 1652x500 Datasheet v3 (PDF, 255.9 KB)
- THE 104 Hugo Evolute towel rail 1212x500 Datasheet v3 (PDF, 269.6 KB)
- THE 105 Hugo Evolute towel rail 1212x600 Datasheet v3 (PDF, 270.8 KB)
- THE 103 Hugo Evolute towel rail 812x600 Datasheet v3 (PDF, 247.4 KB)
- THE 102 Hugo Evolute towel rail 812x500 Datasheet v3 (PDF, 235.3 KB)
- THE 101 Hugo Evolute towel rail 652x400 Datasheet v3 (PDF, 244.2 KB)
- TISSINO HUGO Fitting instructions (PDF, 1.2 MB)
