Radiator Double Angle Valves (Pair) - Single Fuel Valves

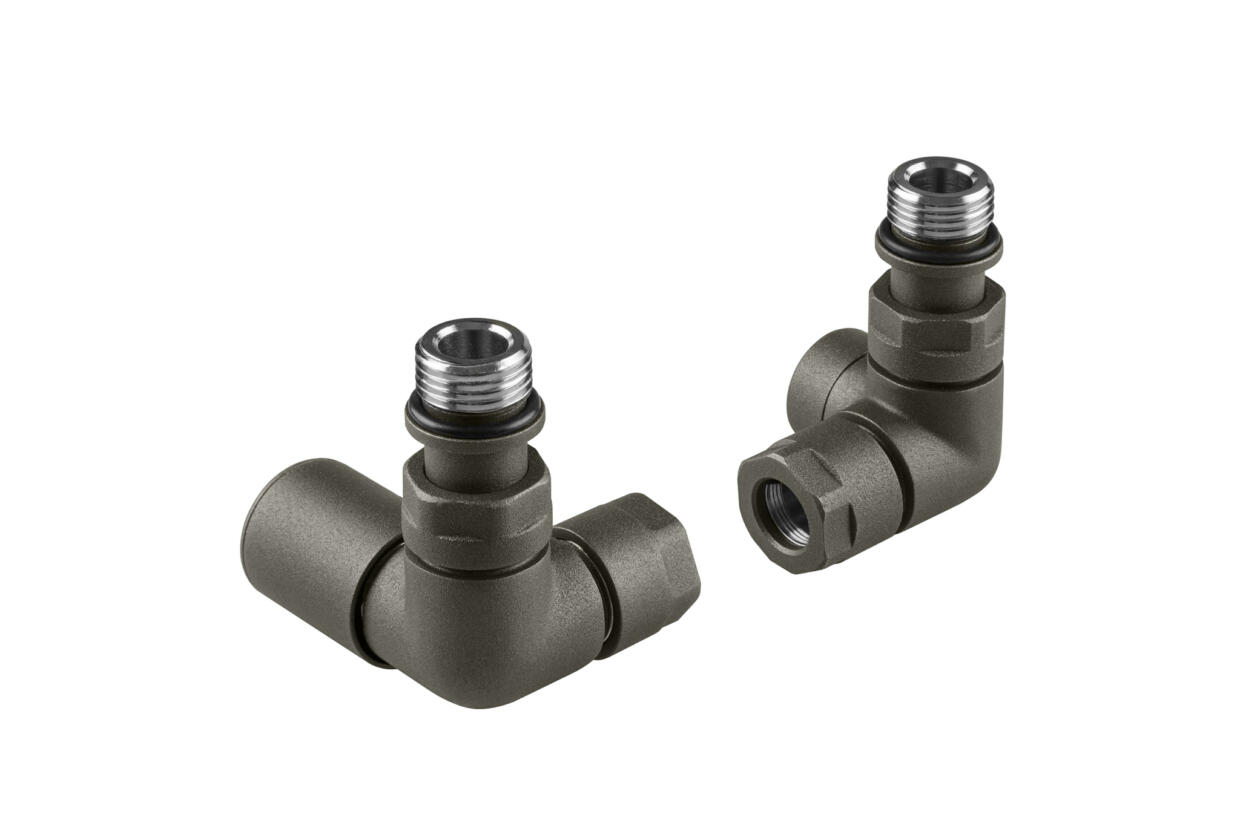

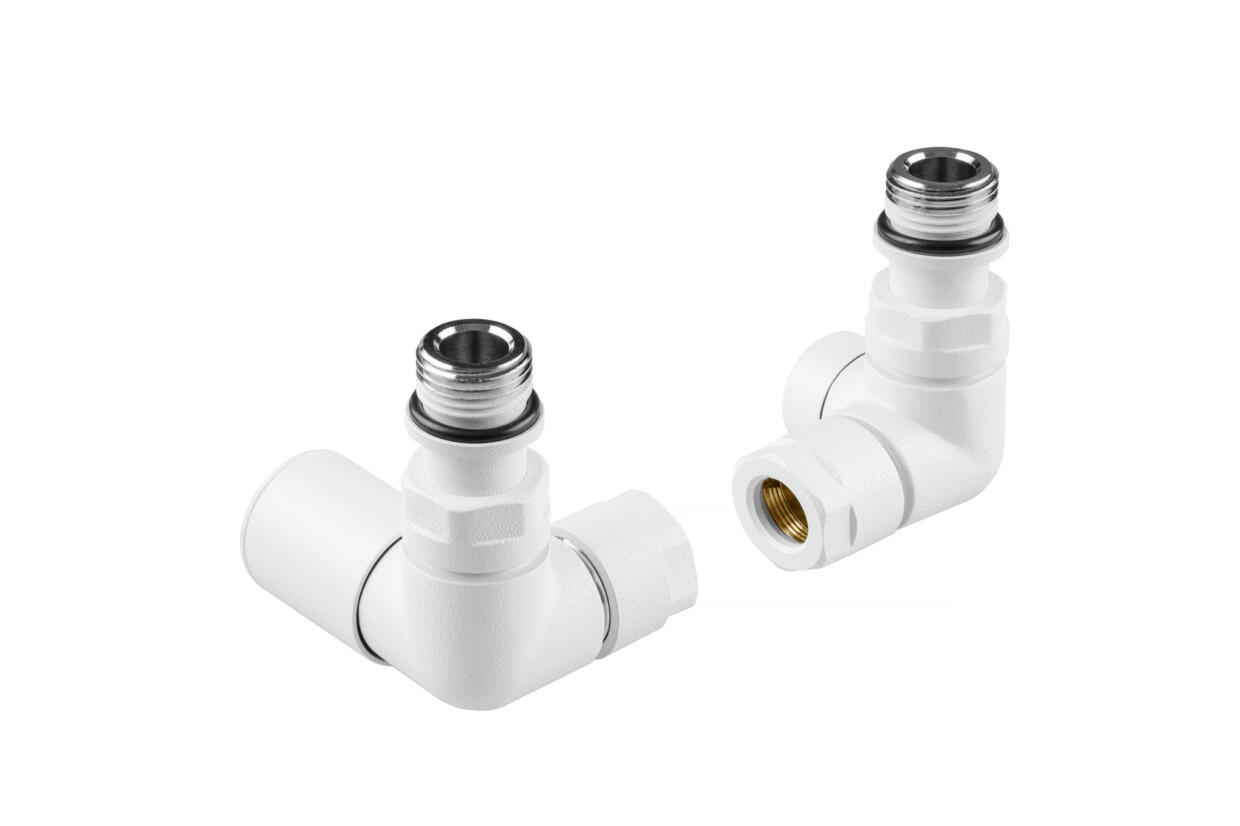

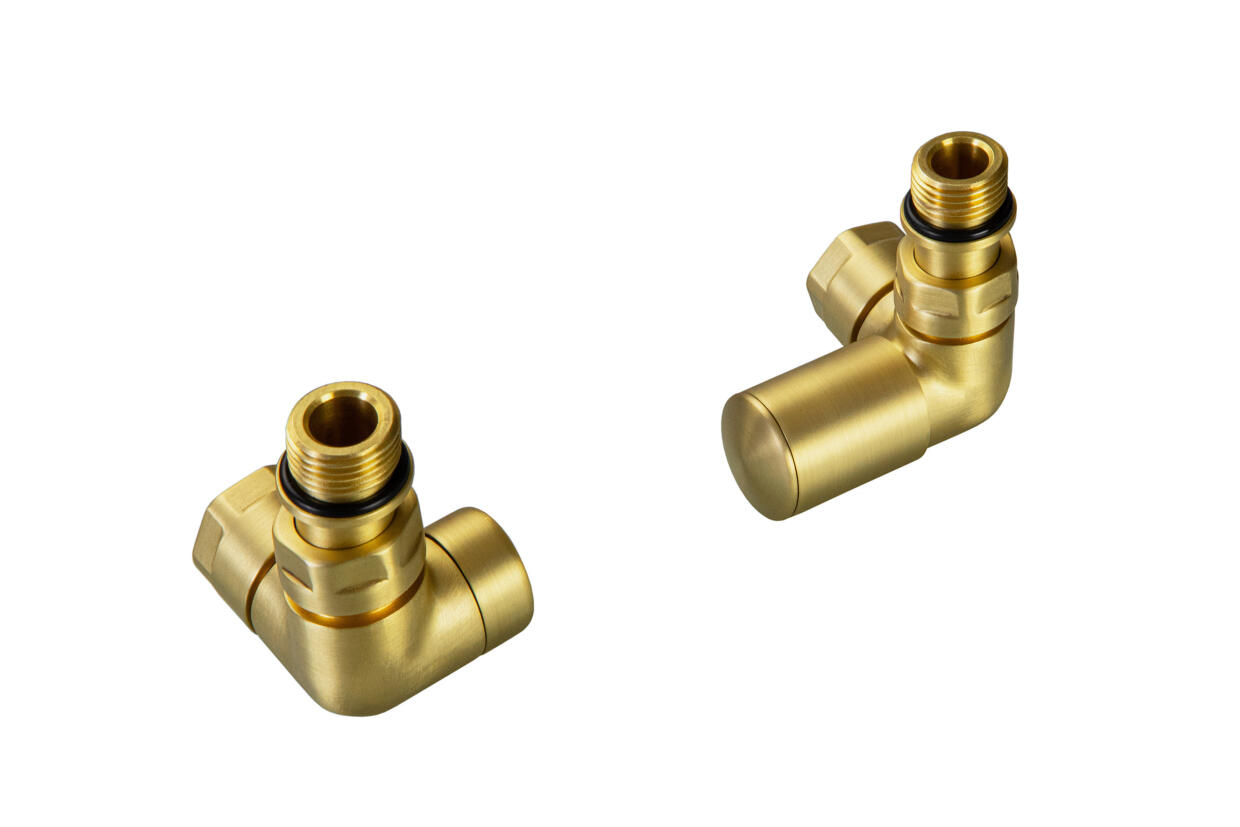

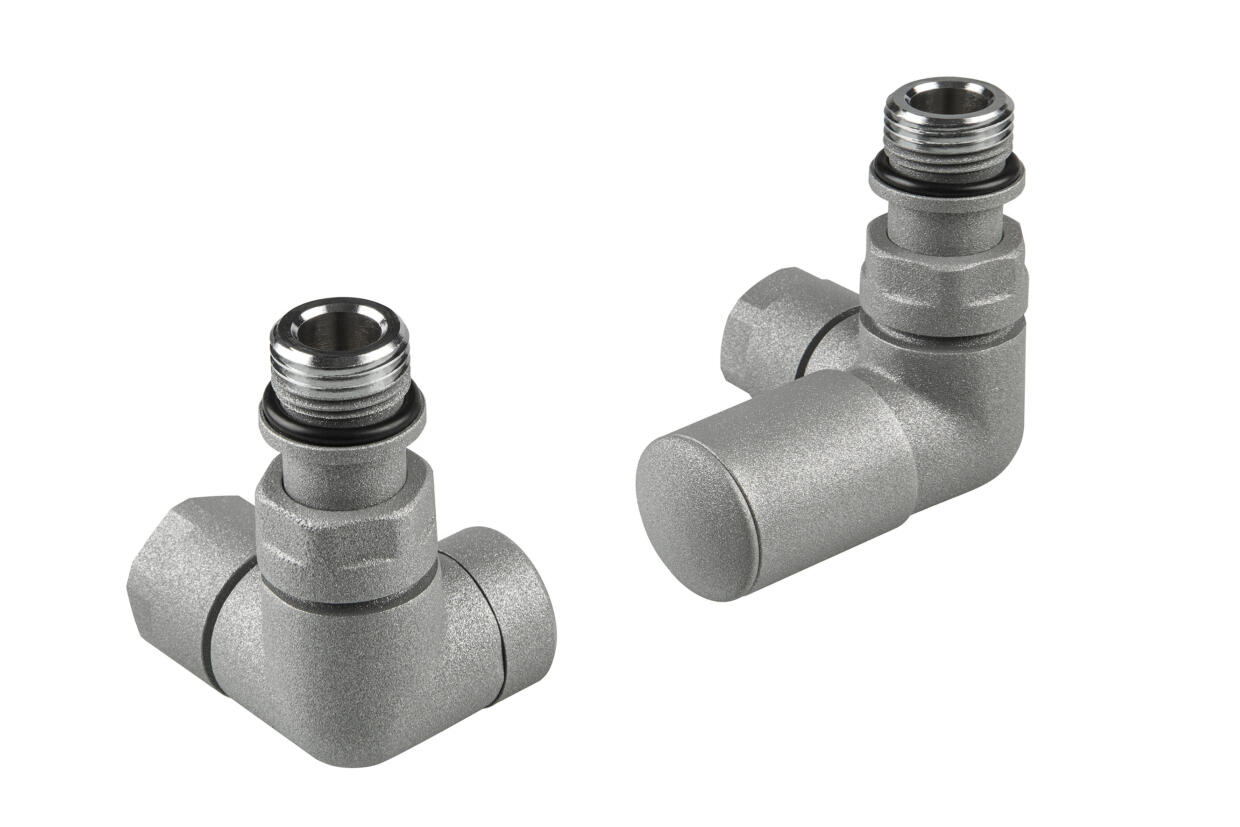

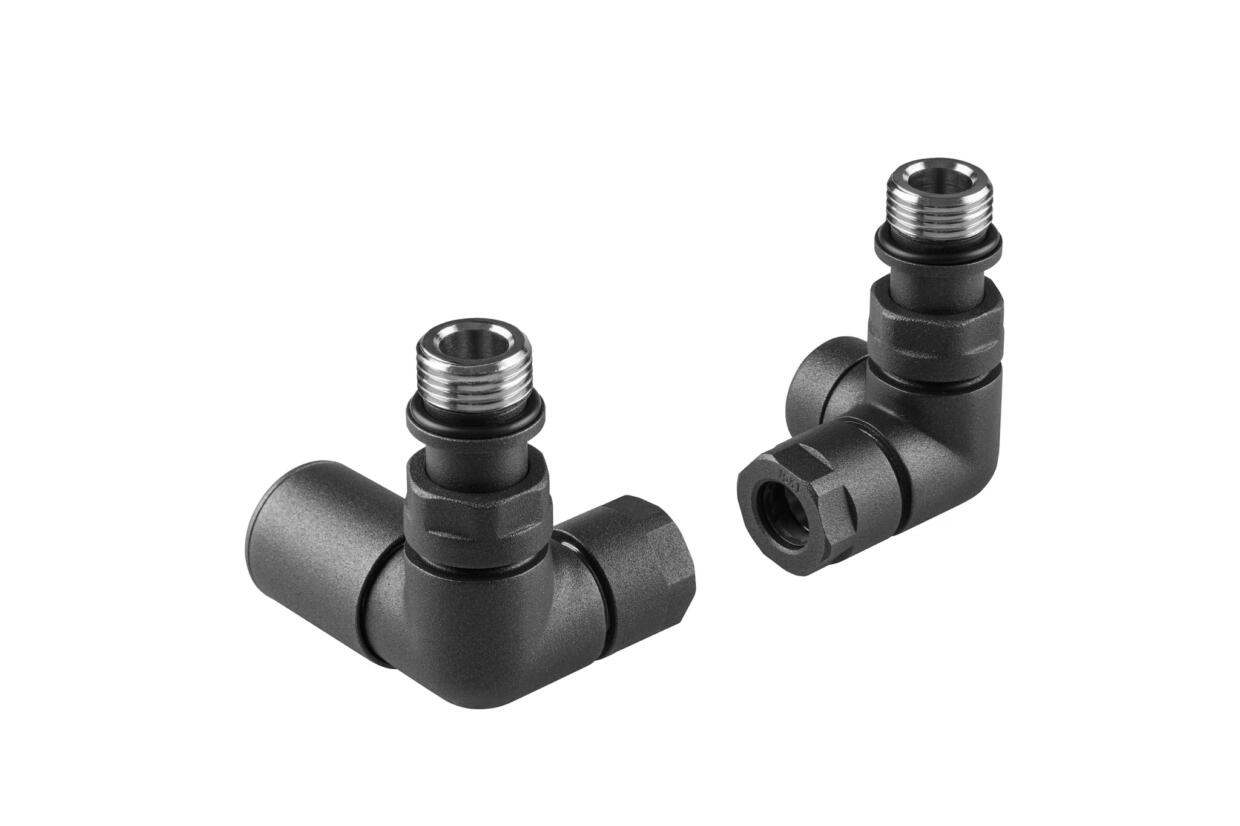

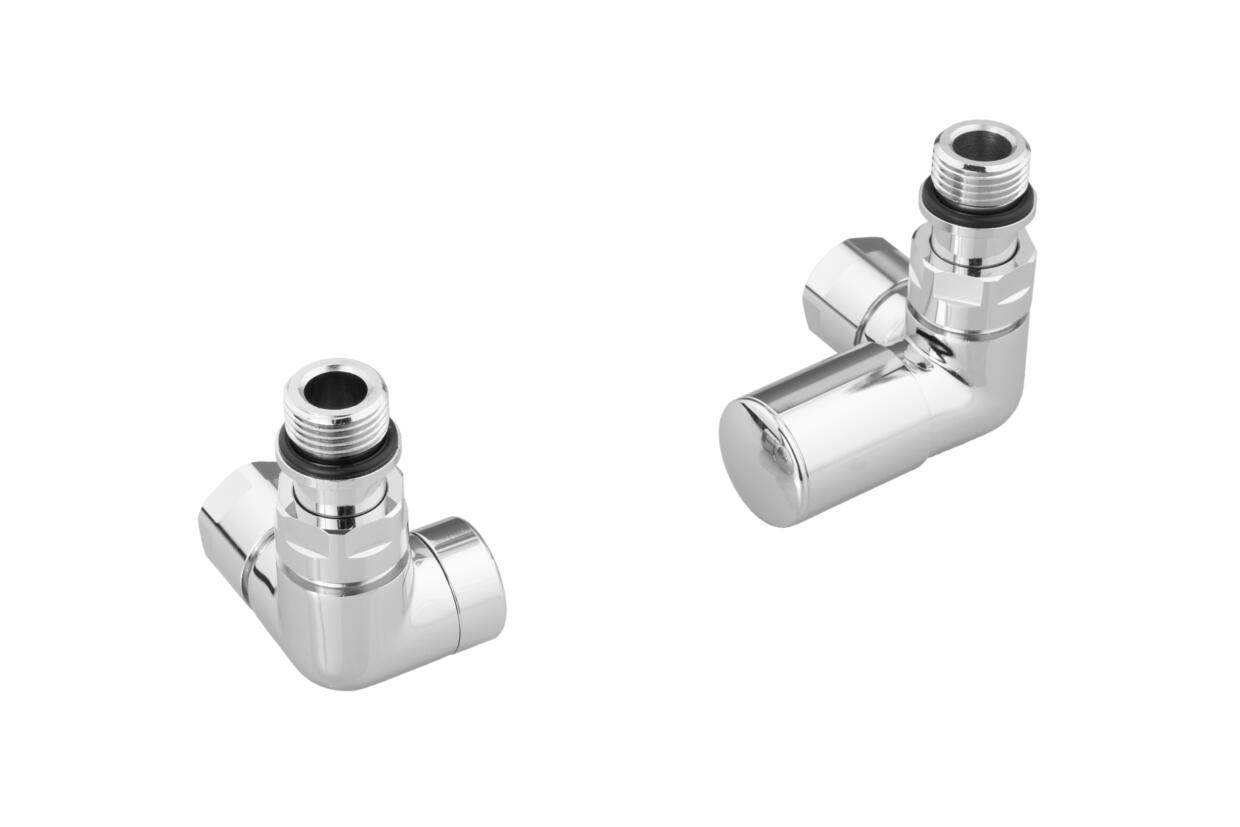

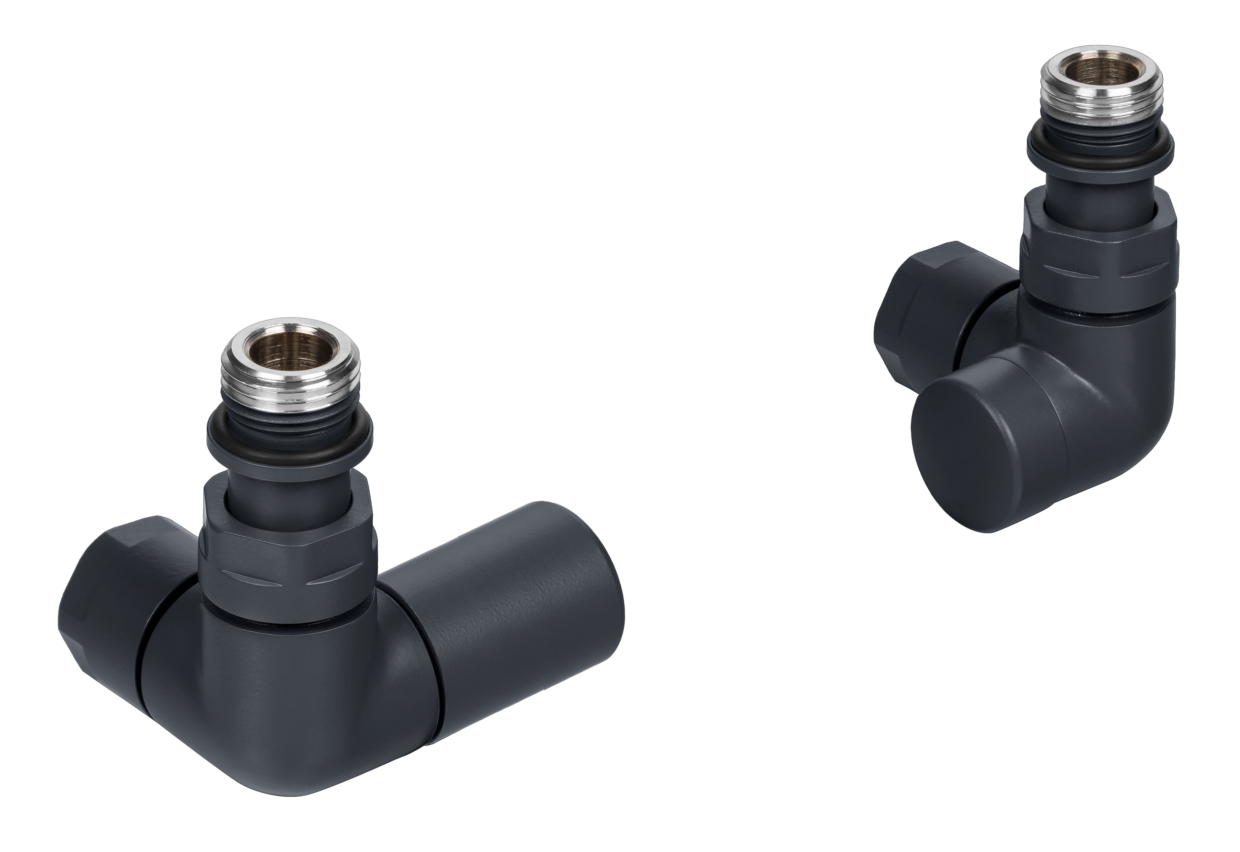

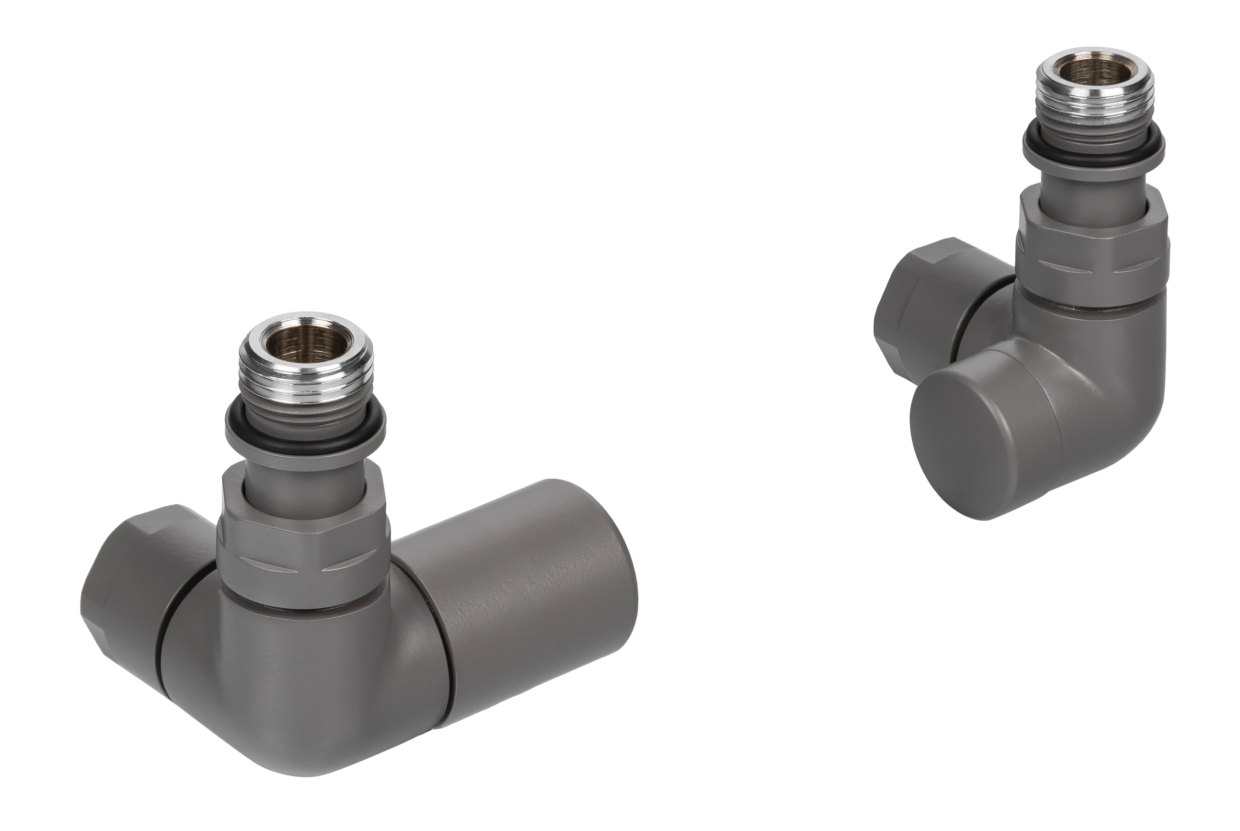

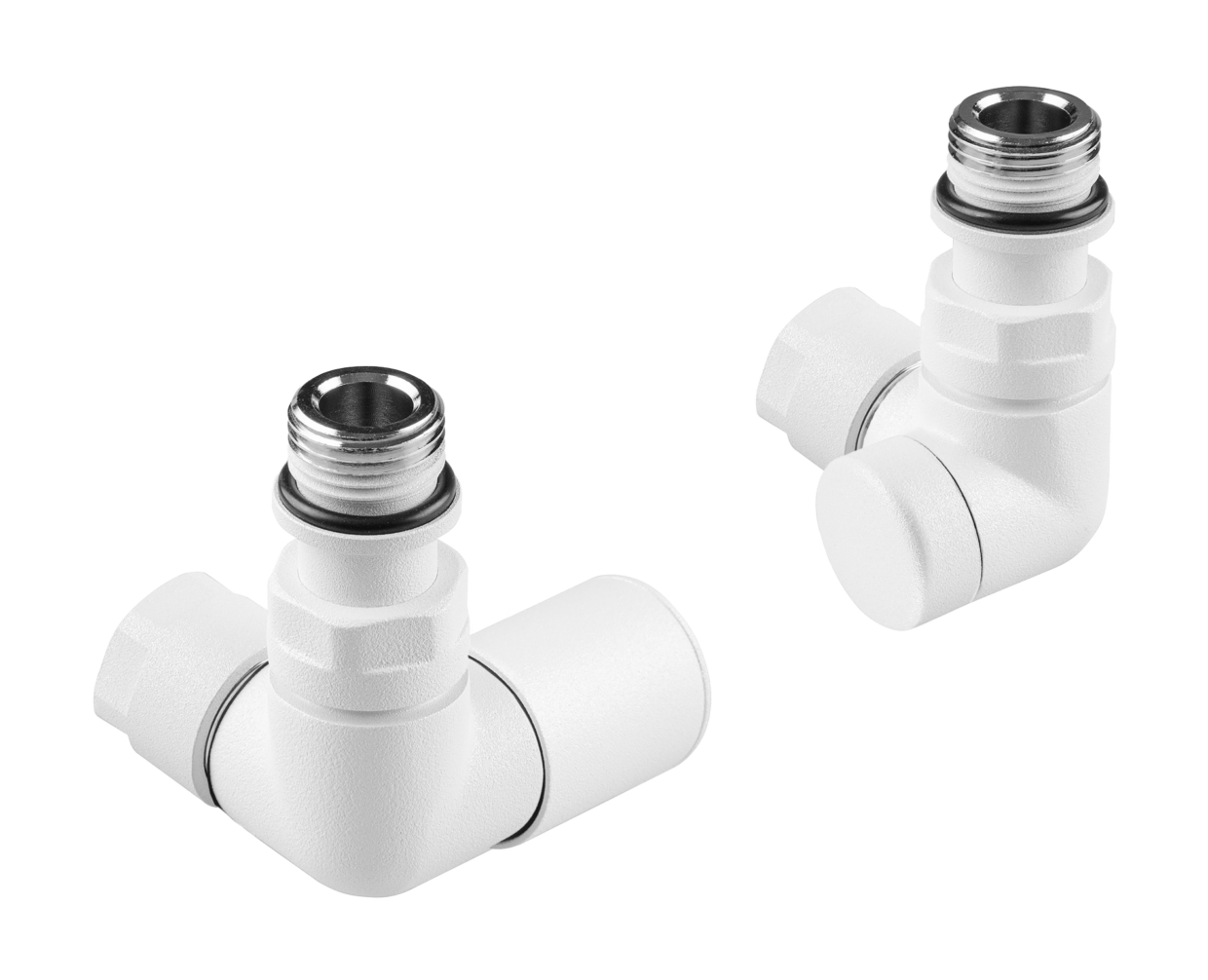

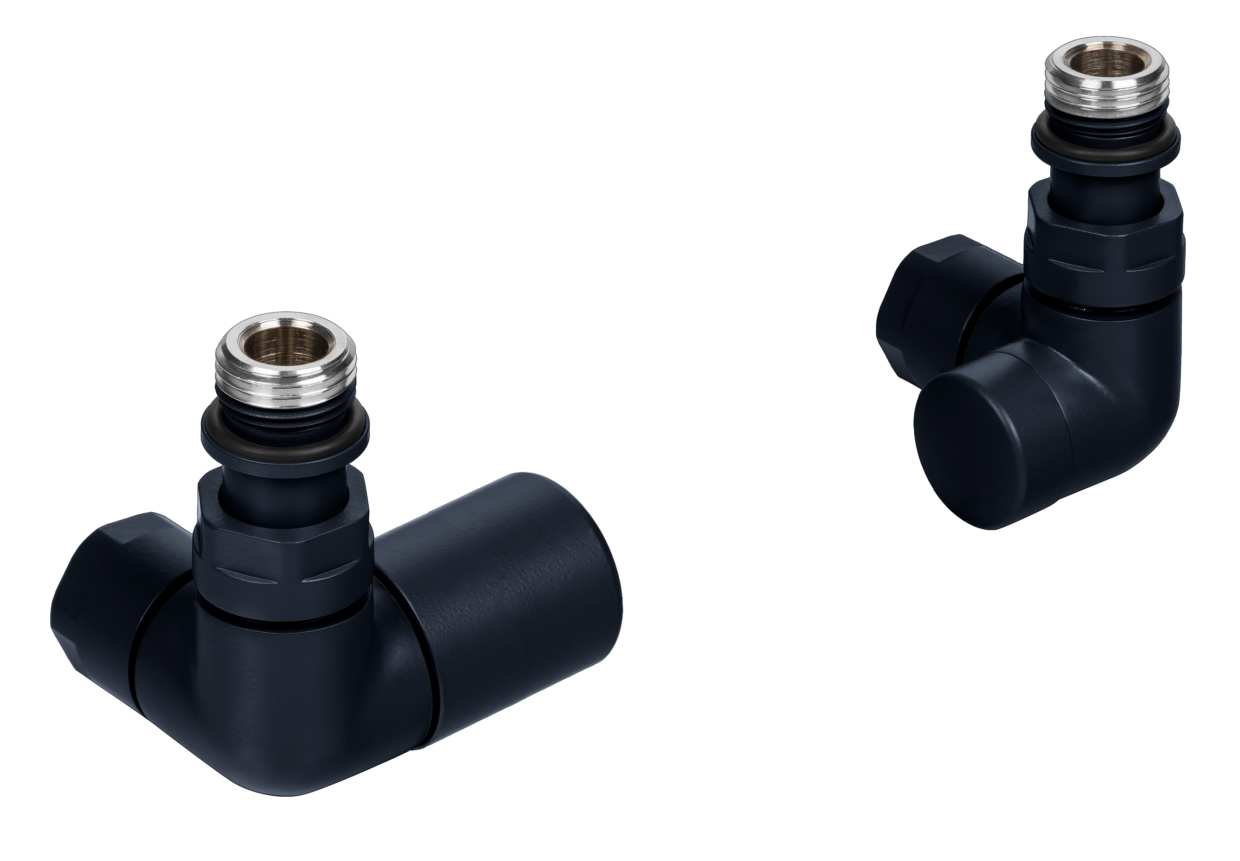

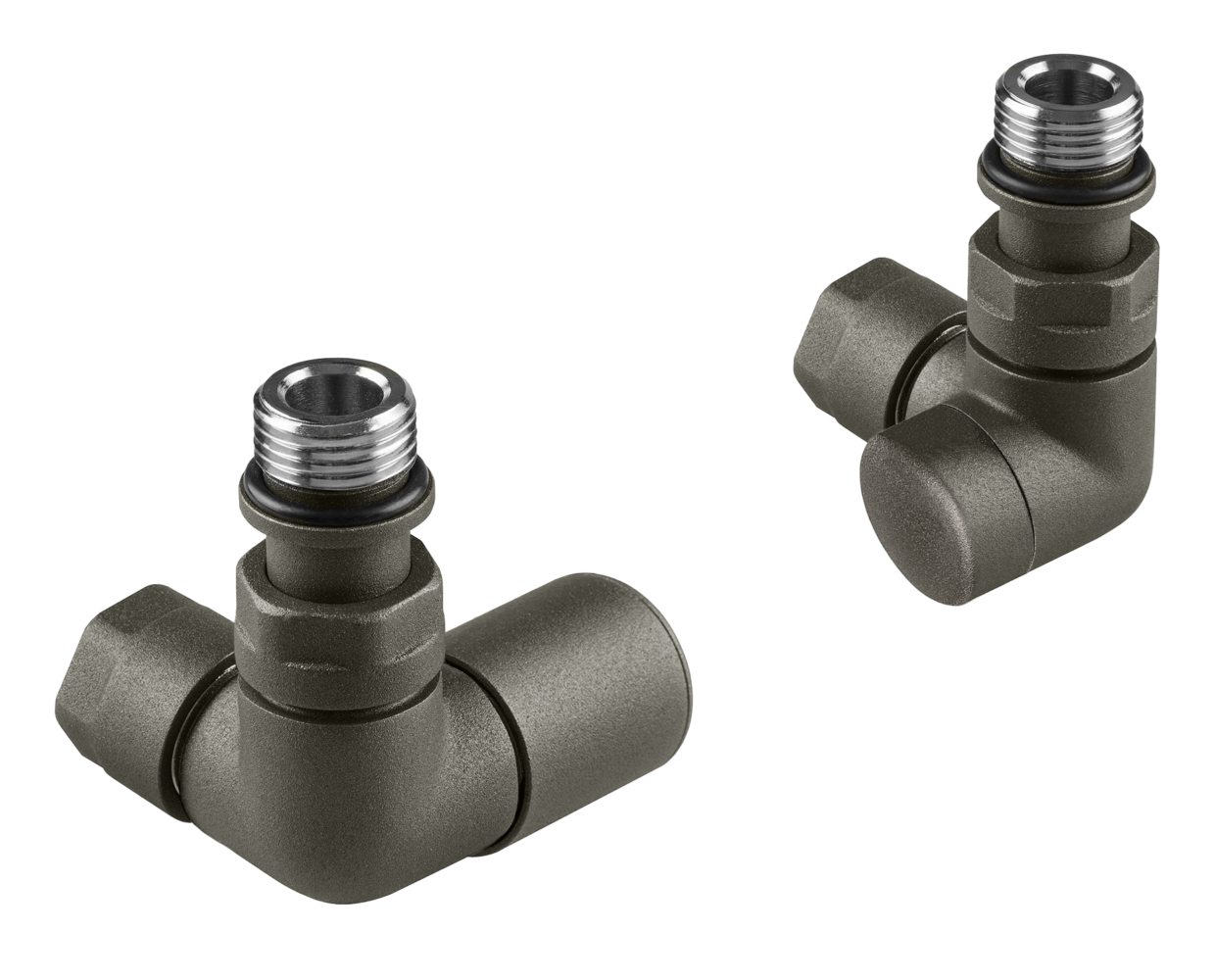

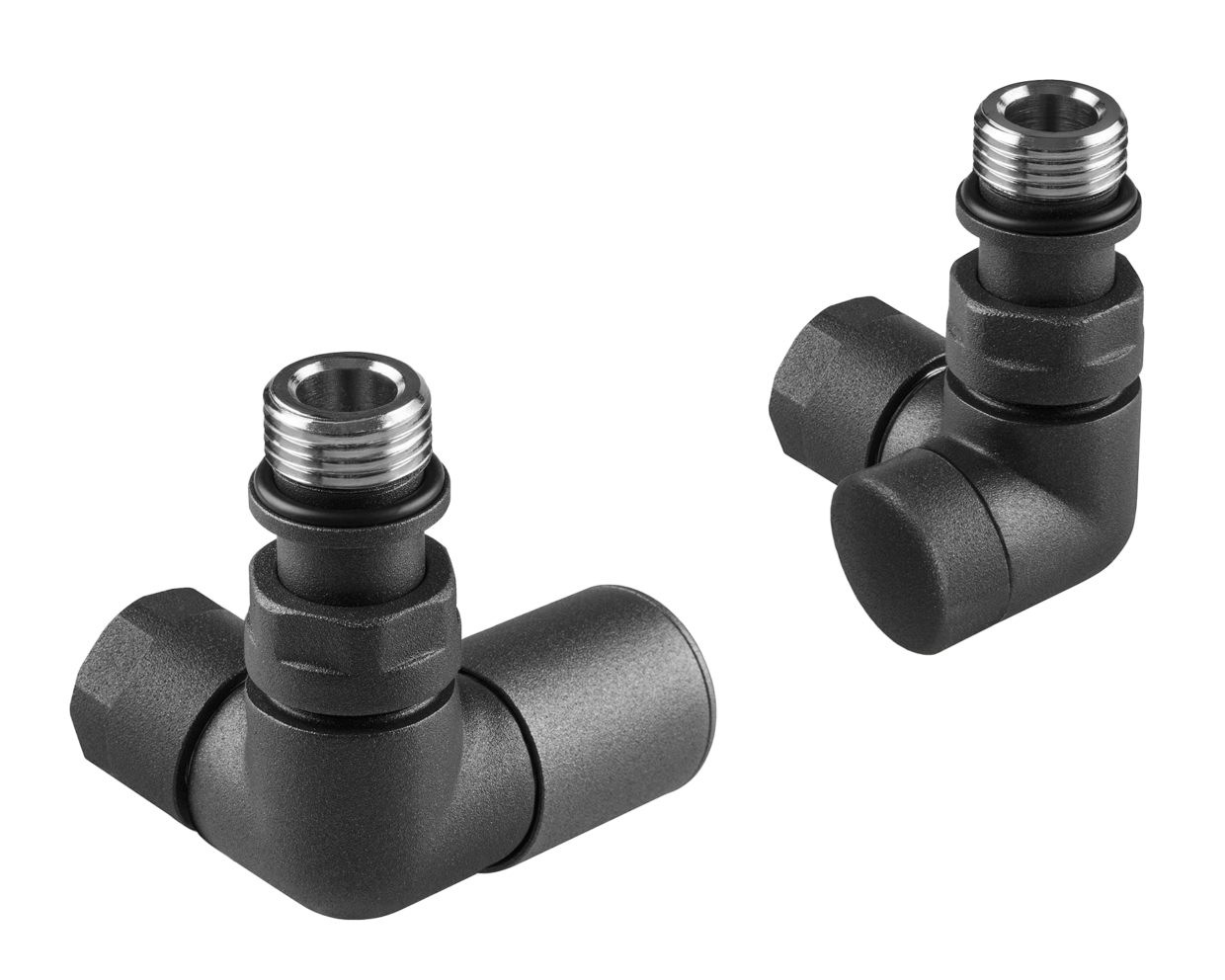

These double angle radiator valves use a compact, right-angled body to connect the pipework to a compatible Tissino heated towel rail. The angled layout keeps the control and lockshield close to the radiator, providing a neat alternative to straight valves where this connection format suits the planned pipework.
Manufactured from brass, the valves are available in a choice of finishes. Select a finish to coordinate with compatible all Tissino towel rails. They are supplied as a pair, with adapters for 10mm pipework included, and are covered by a 10 year guarantee.
RRP From
£69.00
RRP From Excl VAT
£57.50
SKU TUN-201-BU
Technical Information
- Double angle radiator valve pair
- Brass construction
- Suitable for central heating installations
- G 1/2 radiator connection
- 15mm compression supply connection
- Adapters for 10mm pipework included
- Maximum operating temperature of 120°C
- Maximum operating pressure of 10 bar
- Chrome-plated or electrostatically powder-coated finish
- 10 year guarantee
| Specification | Detail |
|---|---|
| Product Type | Double angle radiator valves |
| Supplied As | Pair |
| Material | Brass |
| Finish Type | Electrostatic powder coat or chrome plate |
| Radiator Connection | G 1/2 — 1/2" BSP parallel |
| Supply Connection | 15mm compression |
| Included Adapter | 10mm pipe adapter |
| Height | 47mm |
| Control Valve Width | 70mm |
| Lockshield Valve Width | 75mm |
| Depth | 55mm |
| Maximum Temperature | 120°C |
| Maximum Pressure | 10 bar |
| Guarantee | 10 Years |
